6
TH-42PH11GK / TH-42PH11MK / TH-42PH11MS

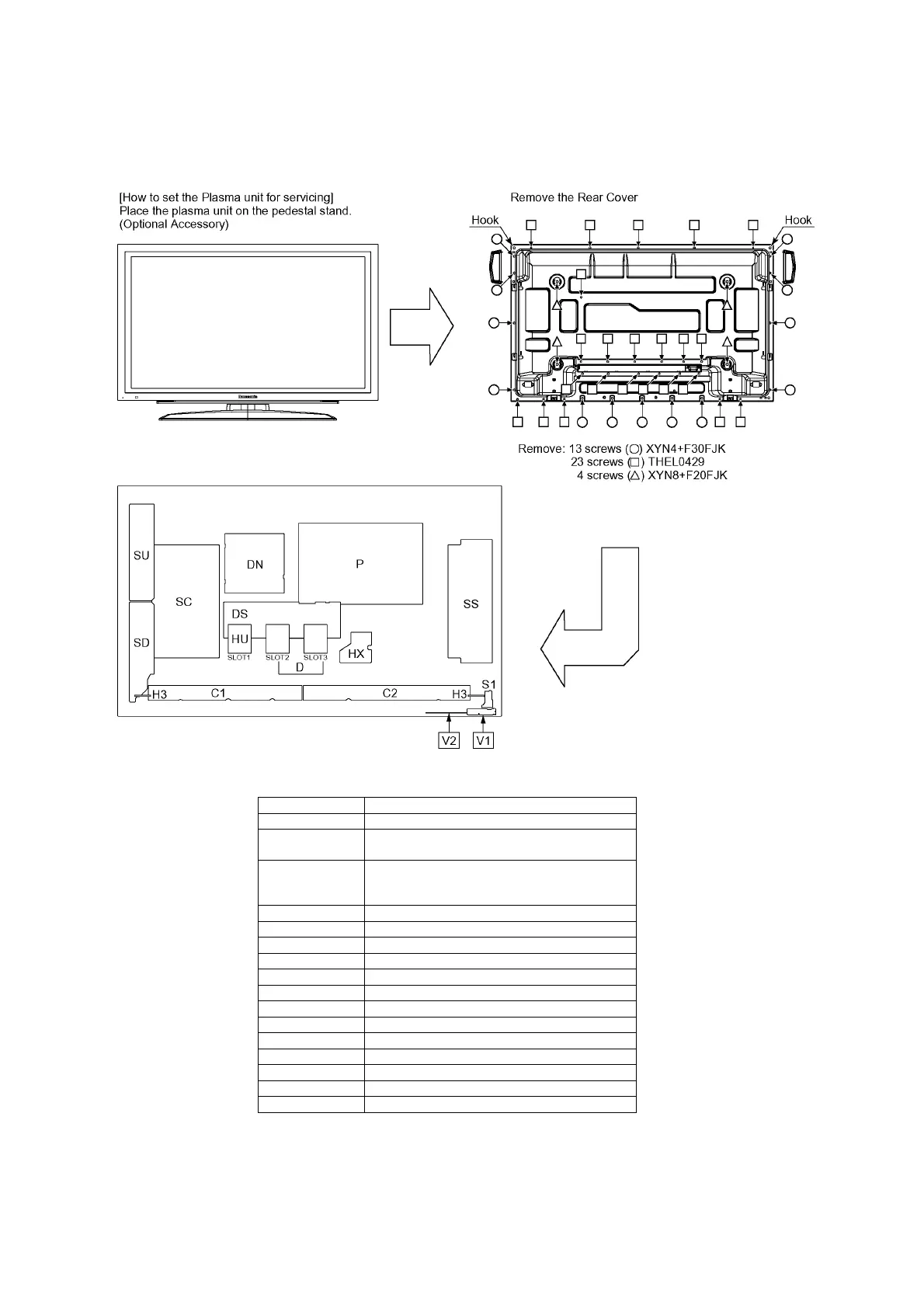

3 Service Navigation
3.1. Service Hint
Note:
Extension cable kit for Slot Board is supplied as service fixtures and tools.
(Part No. TZSC07040)
Board Name Function
DN Digital Signal Processor, Microcomputer
D Format Converter, Plasma AI Processor
Sub-Field Processor
DS Slot Interface (Audio / Video / Sync Input Switch),
Sync Processor, Audio Processor,
Speaker Out Amplifier, DC-DC Converter
SS Sustain drive
SC Scan drive
SU Scan out (Upper)
SD Scan out (Lower)
C1 Data drive (Right)
C2 Data drive (Left)
H3 Speaker terminal
S1 Power switch
V1 Remote receiver, LED-G, R
V2 Key switch
P Power supply
HX PC / RS-232C_Input terminal
HU Dual Video terminal (BNC / S)
To Next Page
