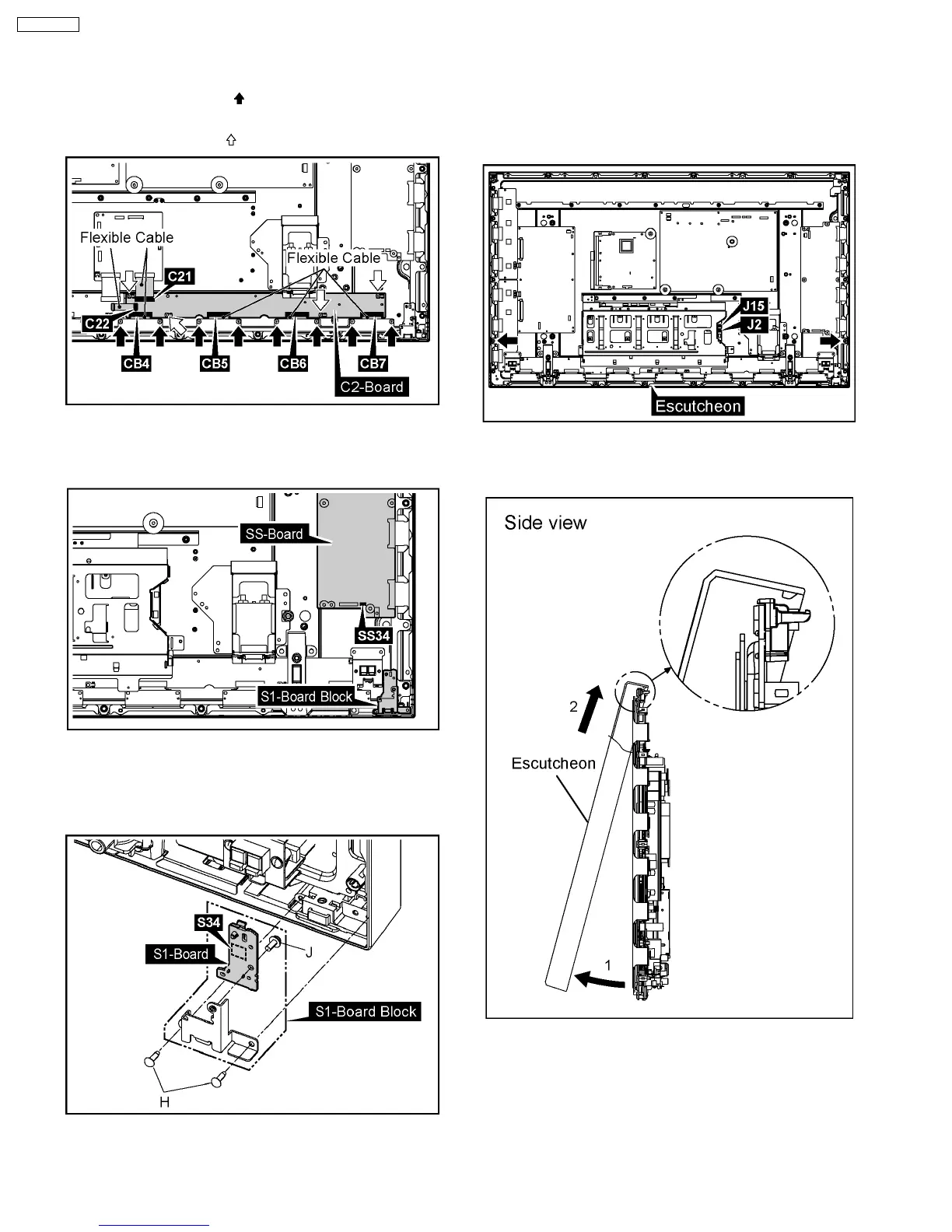

7.14.2. Removal of the C2-Board
1. Remove the Flexible Cable from the couplers(C21, C22).
2. Remove the 8 screws (
) and then remove the Flexible
Cable from the couplers(CB4, CB5, CB6, CB7).
3. Remove the 4 screws (
) and then remove the C2-Board.
7.15. Removal of the S1-Board
1. Disconnect the coupler(SS34).
2. Remove the 2 screws(H) and then remove the S1-Board
Block.
3. Disconnect the coupler(S34).
4. Remove the 1 screw(J) and then remove the S1-Board.
7.16. Removal of the Escutcheon
1. Remove the S1-Board Block.
(Remove to the Removal of the S1-Board)
2. Disconnect the couplers(J2, J15)
3. Remove the 2 screws of the Escutcheon.
4. Pull the bottom of the Escutcheon in the direction of the
arrow 1 and then lift up the Escutcheon to remove in the
direction of the arrow 2.
