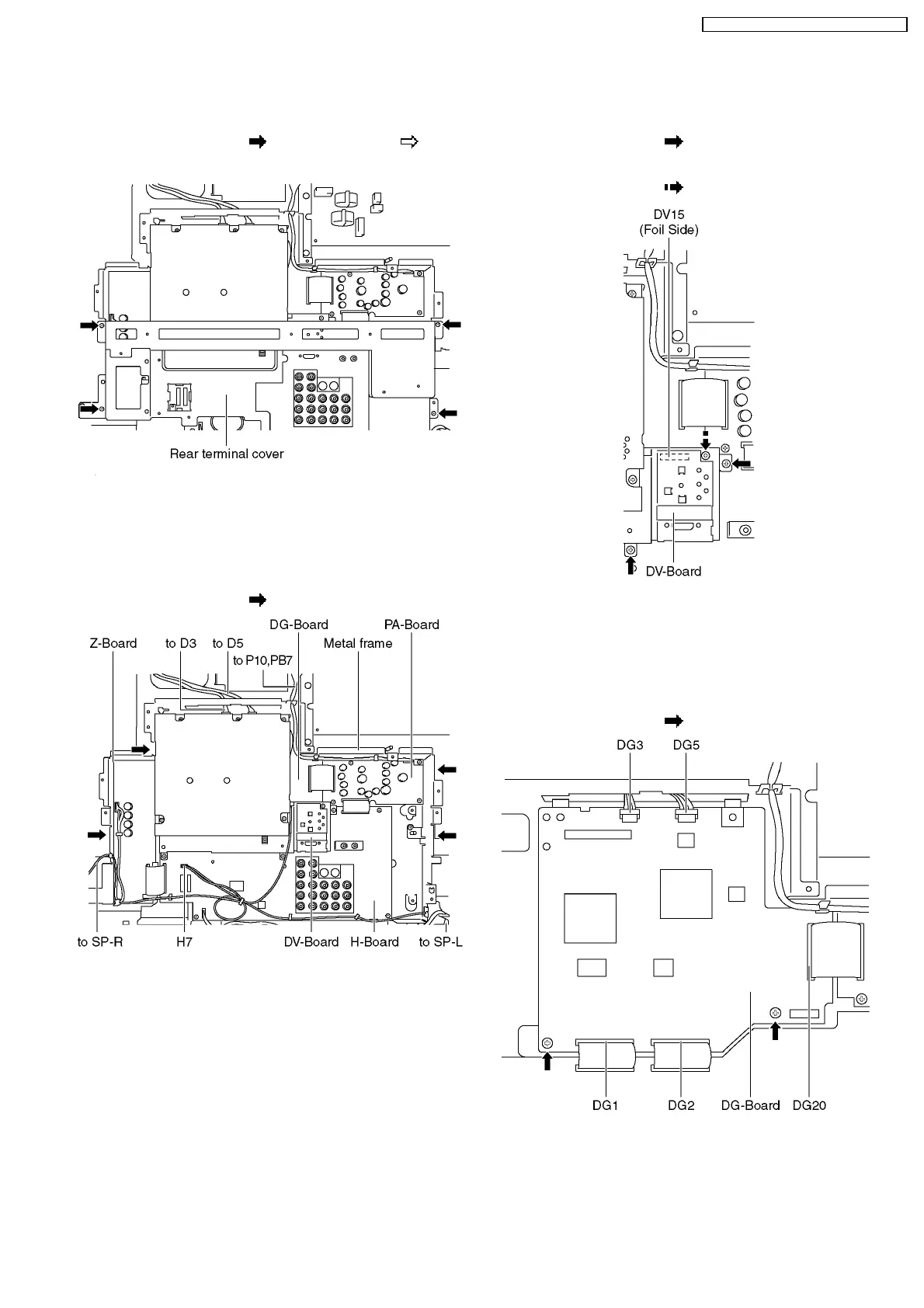

6.5. Remove the rear terminal
cover
1. Remove the screws (×4 ), and rhe screw (×7 ).
2. Remove the rear terminal cover.
6.6. Remove the metal frame
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (D3, D5, H7, P10 and PB7) and
relay connector (SP-R, SP-L).
3. Remove the screws (×4
) remove the metal frame.
6.7. Remove the DT-Board and DV-
Board
1. Remove the screws (×1 ).
2. Disconnect the coupler (DV15).
3. Remove the screws (×1
) and remove the DV-Board.
6.8. Remove the DG-Board
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (DG3 and DG5).
3. Disconnect the flexible cables (DG1, DG2 and DG20).
4. Remove the screws (×2
) and remove the DG-Board.
