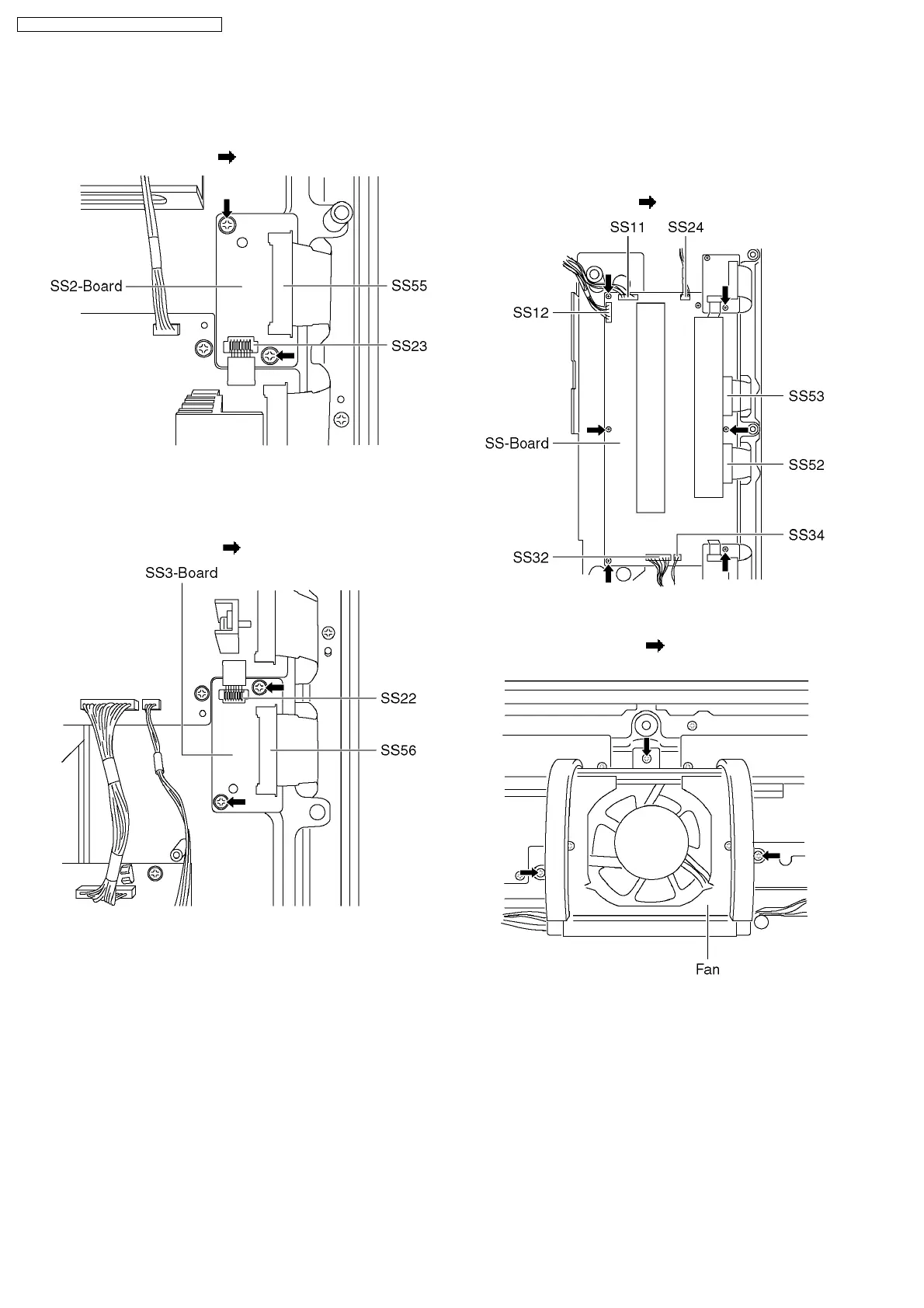

6.15. Remove the SS2-Board
1. Disconnect the coupler (SS23) and disconnect the flexible
cable (SS55).
2. Remove the screws (×2
) and remove the SS2-Board.
6.16. Remove the SS3-Board
1. Disconnect the coupler (SS22) and disconnect the flexible
cable (SS56).
2. Remove the screws (×2
) and remove the SS3-Board.
6.17. Remove the SS-Board
1. Remove the SS2-Board and SS3-Board.
2. Disconnect the couplers (SS11, SS12, SS24, SS32 and
SS34).
3. Disconnect the flexible cables (SS52 and SS53).
4. Remove the screws (×6
), and remove the SS-Board.
6.18. Remove the Fan
1. Remove the screws (×3 each) remove the fan and
disconnect the relay coupler.
14
TH-42PV500A / TH-42PV500H / TH-42PV500M
