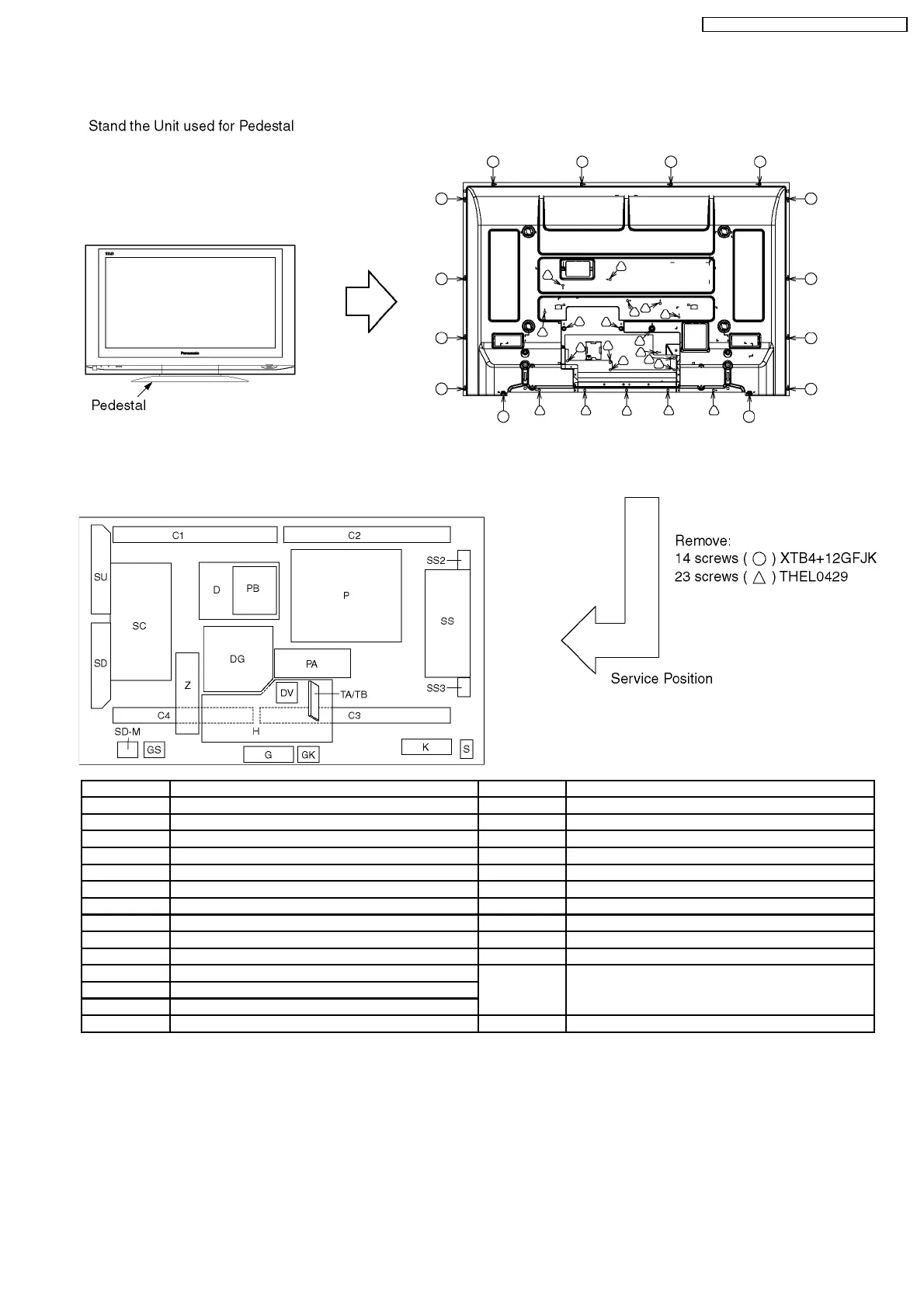

5 Service Hint
Board Name Function Board Name Function
P Power Supply SC Scan Drive
PA DC-DC Converter SU Scan out (Up)
PB Audio Power, Fan control SD Scan out (Down)
H AV Terminal, AV Switch SS Sustain Drive
DV HDMI Interface SS2 Sustain Connector (Up)
DG Digital Signal Processor SS3 Sustain Connector (Down)
Z Speaker out, Audio AMP K Remote receiver, Keyscan
D Format Converter, Plasma AI Processor S Power Switch
C1 Data Driver (Up Right) G PC Card Slot, Front Terminal
C2 Data Driver (Up Left) GS SD Card Slot
C3 Data Driver (Down Left)
SD-M
SD Module (MPEG4/PHOTO view, SD recording)
None serviceable.
SD Module should be exchanged for service.
C4 Data Driver (Down Right)
TA Tuner (PV500A ONLY)
TB Tuner (PV500H/M ONLY) GK Key Switch
9
TH-42PV500A / TH-42PV500H / TH-42PV500M
