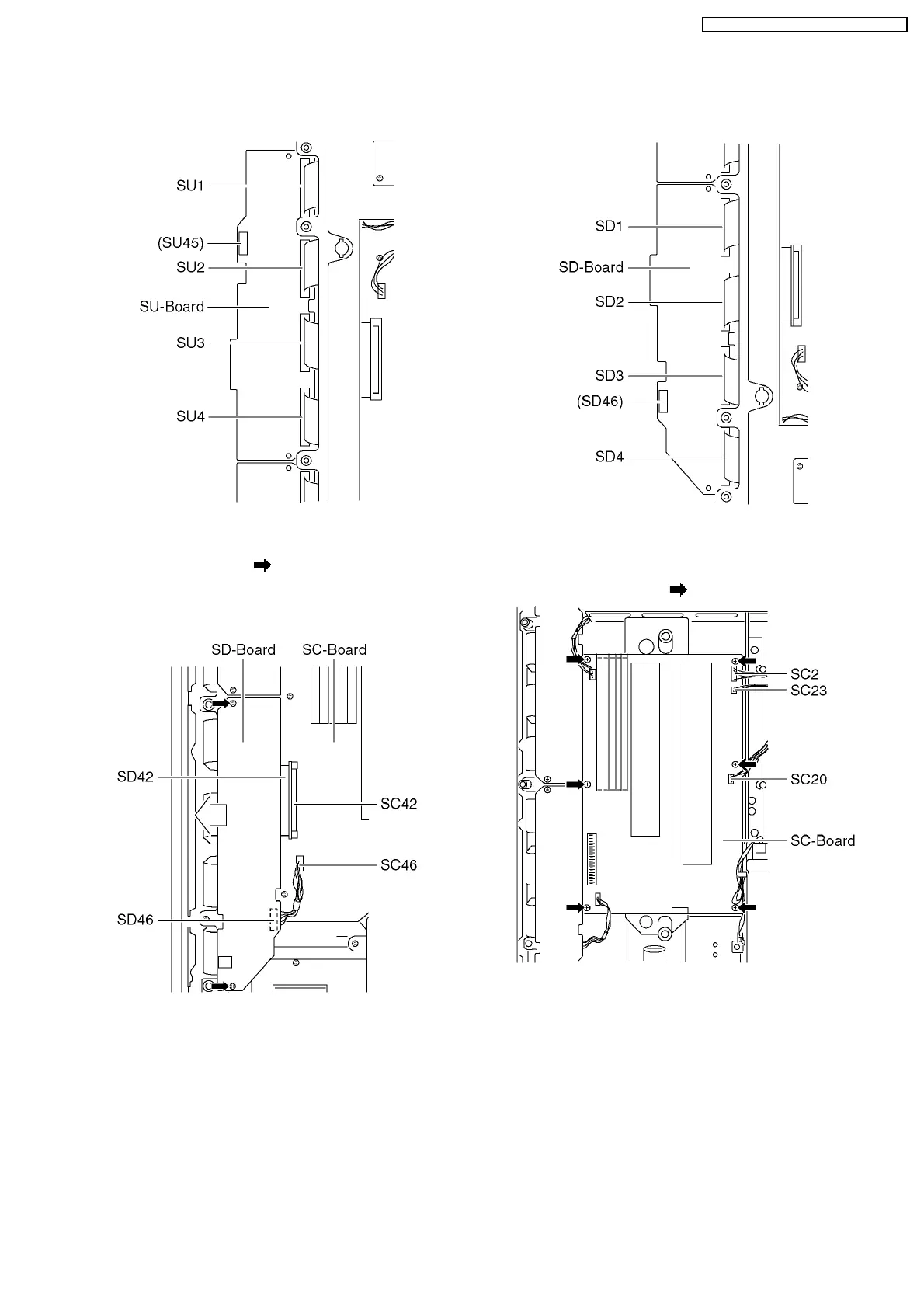

3. Remove the flexible cables (SU1, SU2, SU3 and SU4)
connected to the SU-Board, and remove the SU-Board.
6.13. Remove the SD-Board
1. Remove the screws (×2 ).
2. Slide the SD-Board to the left to disconnect from a coupler
(SC42 - SD42) on the SC-Board and remove a coupler
(SD46 or SC46).
3. Remove the flexible cables (SD1, SD2, SD3 and SD4)
connected to the SD-Board, and remove the SD-Board.
6.14. Remove the SC-Board
1. Disconnect the couplers (SC2, SC20 and SC23).
2. Remove the screws (×6
) and remove the SC-Board.
13
TH-42PV500A / TH-42PV500H / TH-42PV500M
