Panasonic TH-42PX600U

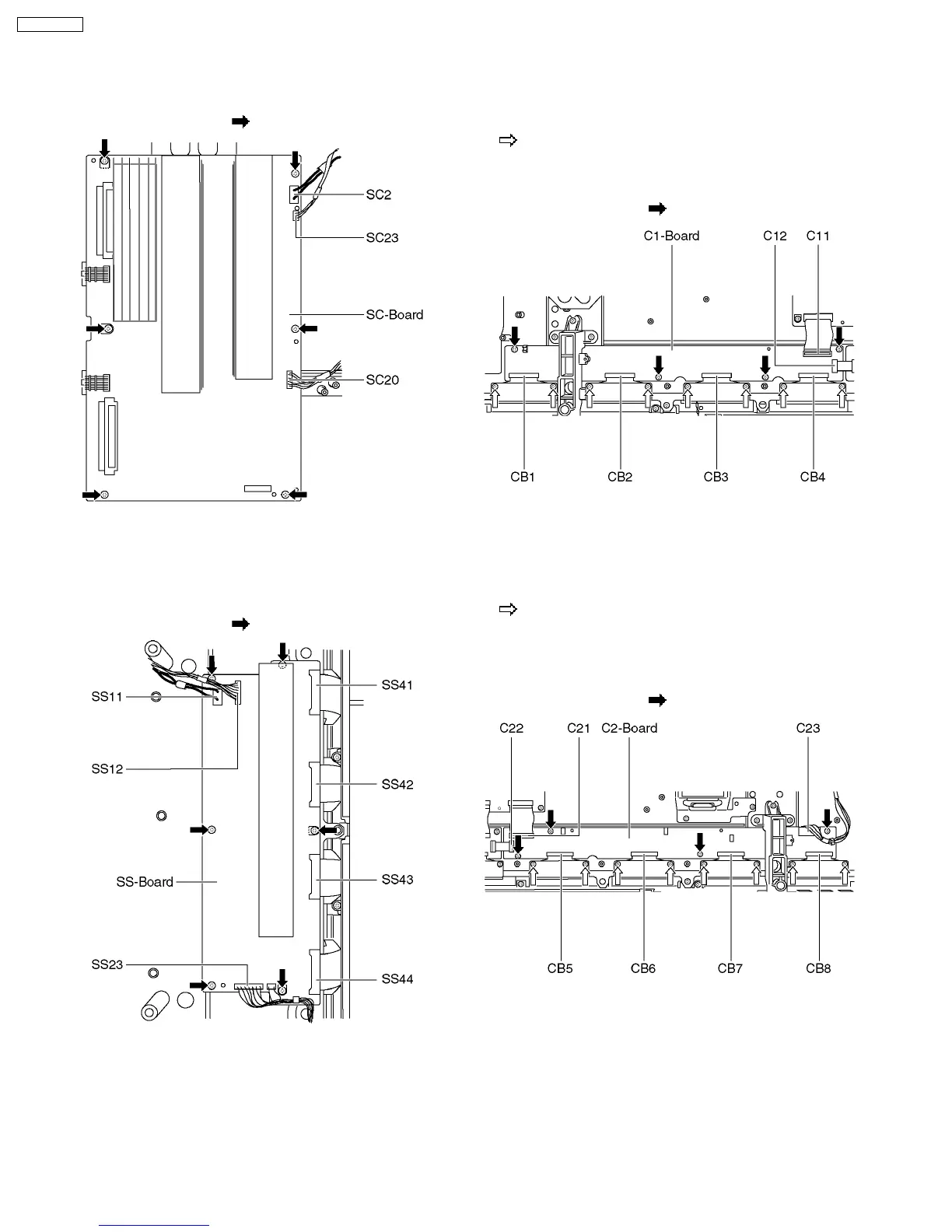

6.16. Remove the SC-Board
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (SC2, SC20 and SC23).
3. Remove the screws (×6
) and remove the SC-Board.
6.17. Remove the SS-Board
1. Disconnect the couplers (SS11, SS12 and SS23).
2. Disconnect the flexible cables (SS41, SS42, SS43 and
SS44).
3. Remove the screws (×6
) and remove the SS-Board.
6.18. Remove the C1-Board
1. Remove the tuner unit. (See section 6.8.)
2. Unlock the cable clampers to free the cable.
3. Remove the flexible cables holder fastening screws (×8
).
4. Disconnect the flexible cables (CB1, CB2, CB3 and CB4).
5. Disconnect the flexible cables (C11 and C12).
6. Remove the screws (×4
) and remove the C1-Board.
6.19. Remove the C2-Board
1. Remove the tuner unit. (See section 6.8.)
2. Unlock the cable clampers to free the cable.
3. Remove the flexible cables holder fastening screws (×8
).
4. Disconnect the flexible cables (CB5, CB6, CB7 and CB8).
5. Disconnect the flexible cables (C21 and C22).
6. Disconnect the coupler (C23).
7. Remove the screws (×4
) and remove the C2-Board.
14
TH-42PX600U
