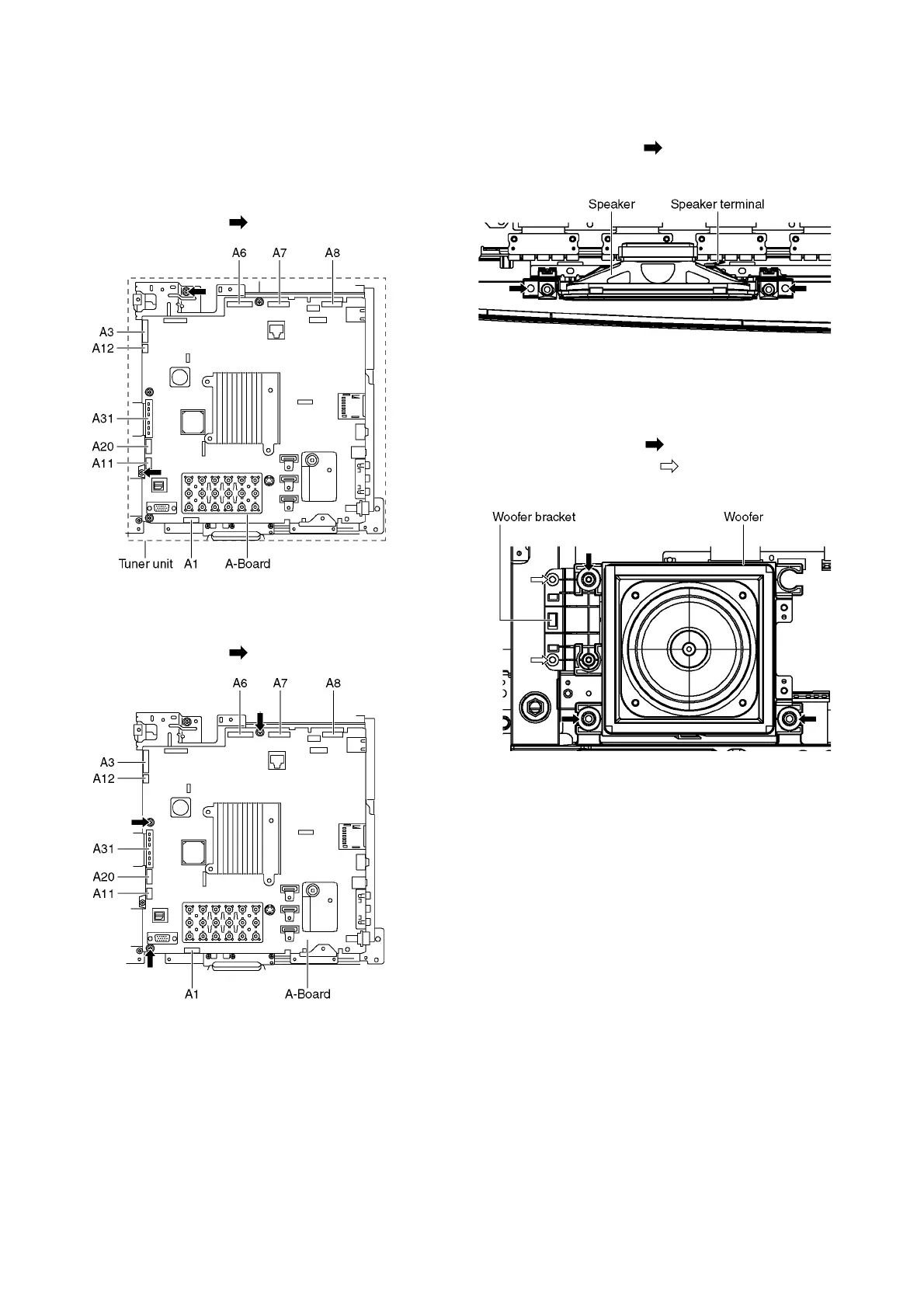

8.5. Remove the Tuner unit
1. Remove the Side terminal cover and the Side shield
metal. (See section 8.4.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connectors (A1, A3, A6, A7, A8, A11, A12
and A20).
4. Disconnect the flexible cables (A31).
5. Remove the screws (×2 ) and remove the Tuner unit.
8.6. Remove the A-Board
1. Remove the Tuner unit. (See section 8.5.)
2. Remove the screws (×3 ) and remove the A-Board.
8.7. Remove the Speakers
1. Unlock the cable clampers to free the cable.
2. Disconnect the Speaker terminal.
3. Remove the screws (×2 each) and remove the Speak-
ers (L, R).
8.8. Remove the Woofer
1. Unlock the cable clampers to free the cable.
2. Disconnect the connector (A12). (See section 8.5.)
3. Remove the screws (×3 ) and remove the Woofer.
4. Remove the screws (×2 ) and remove the Woofer
bracket.
