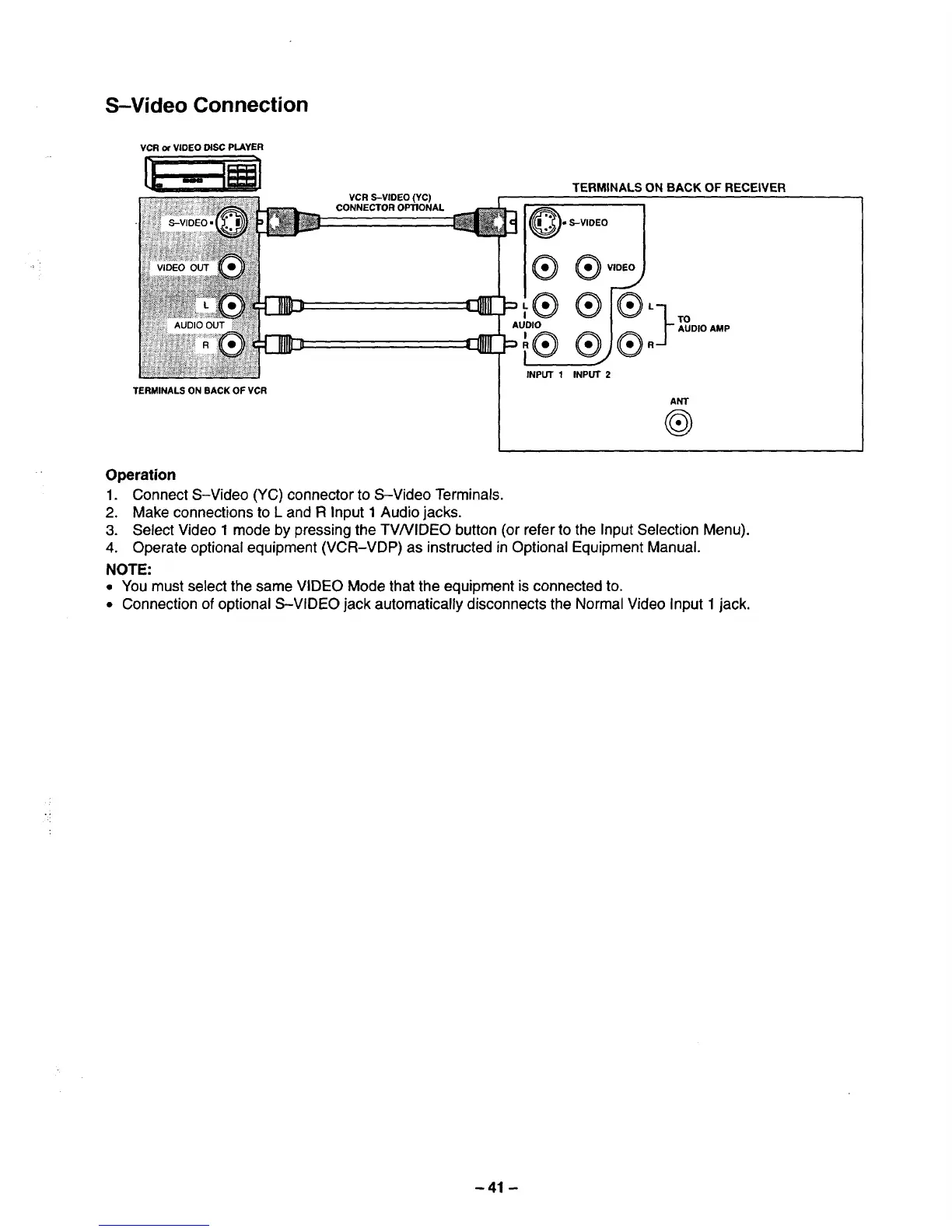

S-Video Connection
VCR or VIDEO DISC PLAYER
AUDIO OUT
TERMINALS ON BACK OF VCR
VCR S-VIDEO (YC)
CONNECTOR OPTIONAL
TERMINALS ON BACK OF RECEIVER
,, S-VIDEO I
®®,y
, op®le },o
INPUT 1 INPUT 2
ANT
@
Operation
1. Connect S-Video (YC) connector to S--Video Terminals.
2. Make connections to L and R Input I Audio jacks.
3. Select Video 1 mode by pressing the TVNIDEO button (or refer to the Input Selection Menu).
4. Operate optional equipment (VCR-VDP) as instructed in Optional Equipment Manual.
NOTE:
• You must select the same VIDEO Mode that the equipment is connected to.
• Connection of optional S--VIDEO jack automatically disconnects the Normal Video Input 1 jack.
":i
- 41 -
