Panasonic TX-32LMD70FA - Setting Inspection

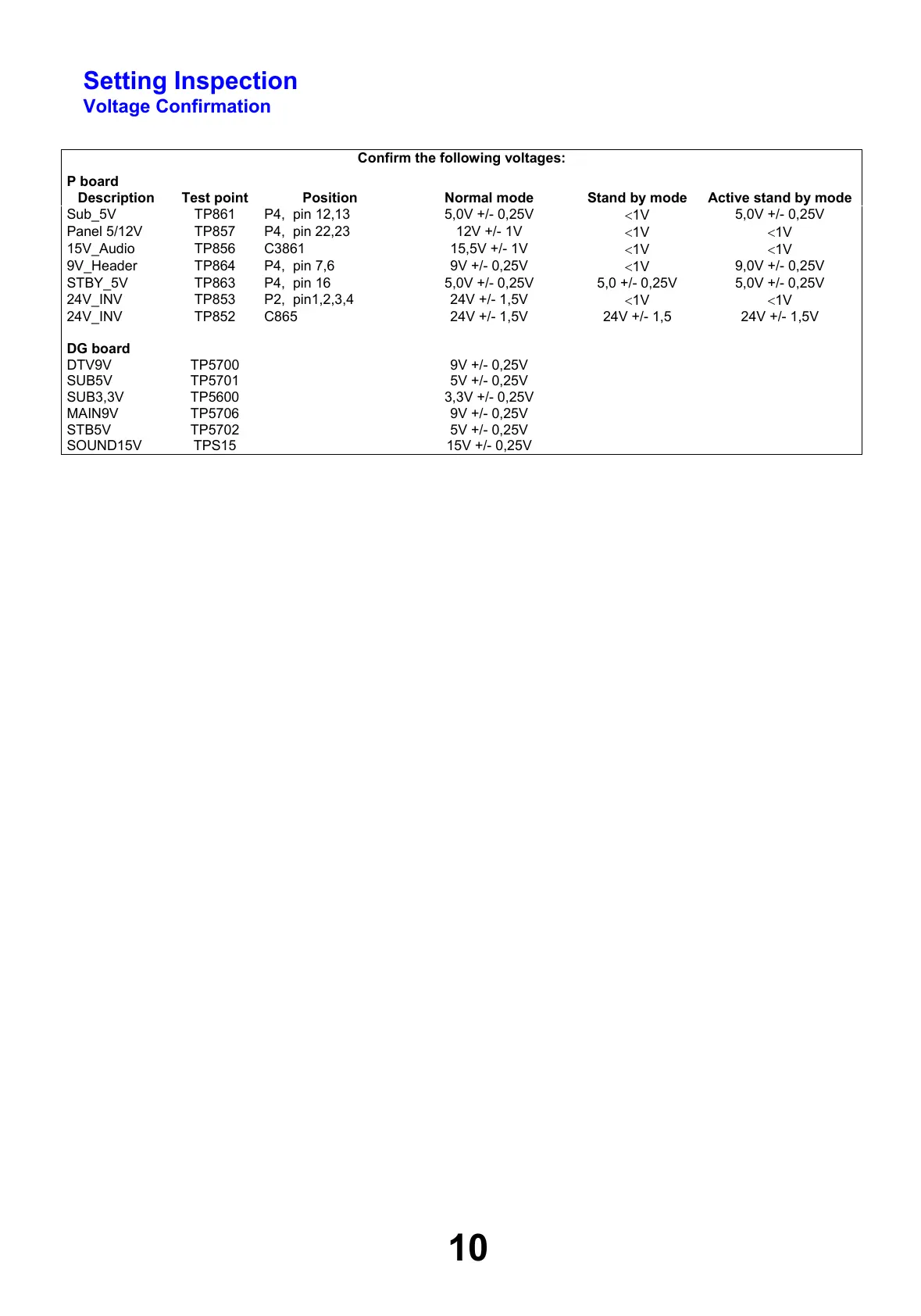

Setting Inspection
Voltage Confirmation
Confirm the following voltages:
P board
Description Test point Position Normal mode Stand by mode Active stand by mode
Sub_5V TP861 P4, pin 12,13 5,0V +/- 0,25V
<1V
5,0V +/- 0,25V
Panel 5/12V TP857 P4, pin 22,23 12V +/- 1V
<1V <1V
15V_Audio TP856 C3861 15,5V +/- 1V
<1V <1V
9V_Header TP864 P4, pin 7,6 9V +/- 0,25V
<1V
9,0V +/- 0,25V
STBY_5V TP863 P4, pin 16 5,0V +/- 0,25V 5,0 +/- 0,25V 5,0V +/- 0,25V
24V_INV TP853 P2, pin1,2,3,4 24V +/- 1,5V
<1V <1V
24V_INV TP852 C865 24V +/- 1,5V 24V +/- 1,5 24V +/- 1,5V
DG board
DTV9V TP5700 9V +/- 0,25V
SUB5V TP5701 5V +/- 0,25V
SUB3,3V TP5600 3,3V +/- 0,25V
MAIN9V TP5706 9V +/- 0,25V
STB5V TP5702 5V +/- 0,25V
SOUND15V TPS15 15V +/- 0,25V
