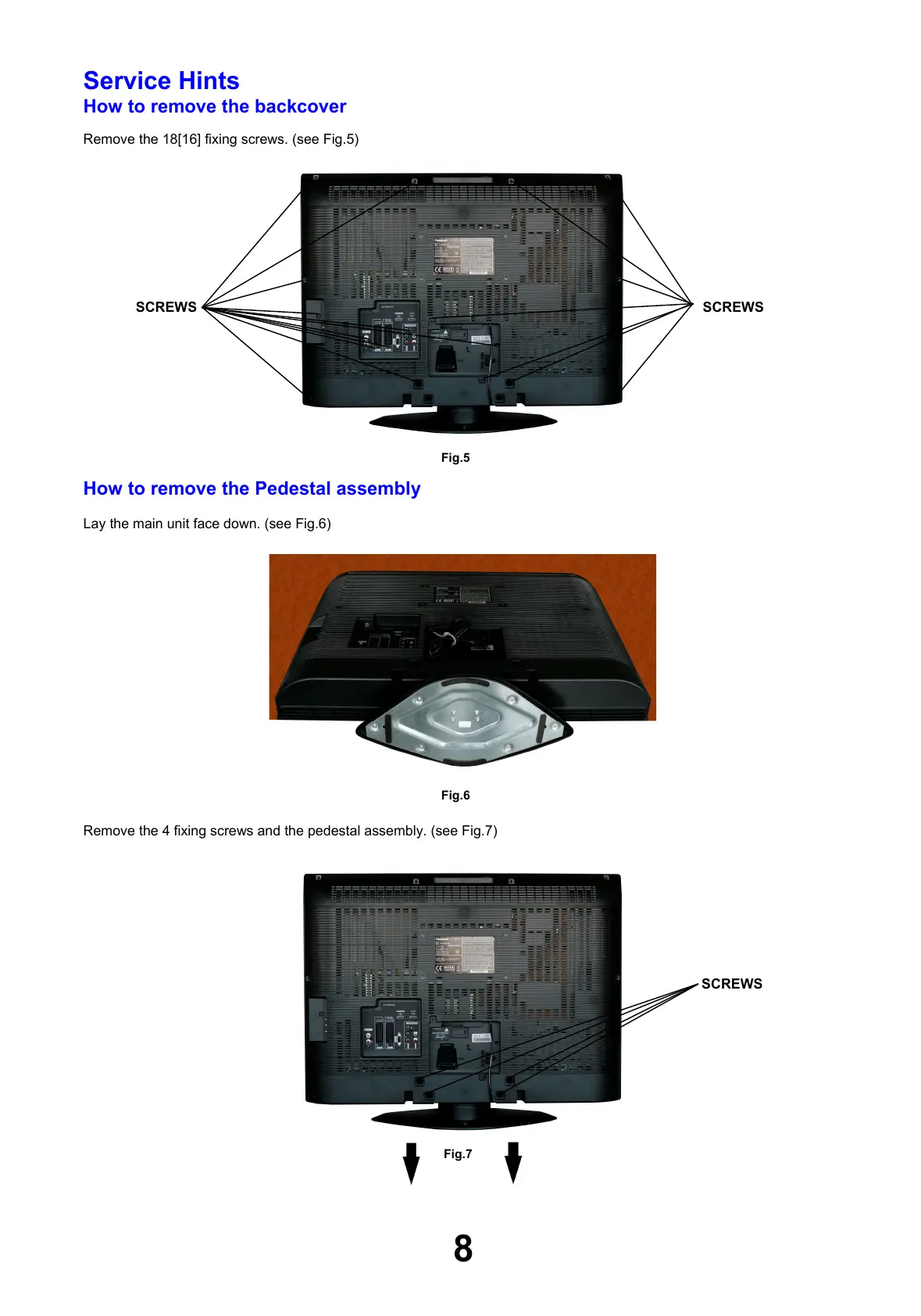

Service Hints
How to remove the backcover
Remove the 18[16] fixing screws. (see Fig.5)
How to remove the Pedestal assembly
Lay the main unit face down. (see Fig.6)
Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)
Fig.6
8
Fig.7
SCREWS
SCREWS
SCREWS
Fig.5
