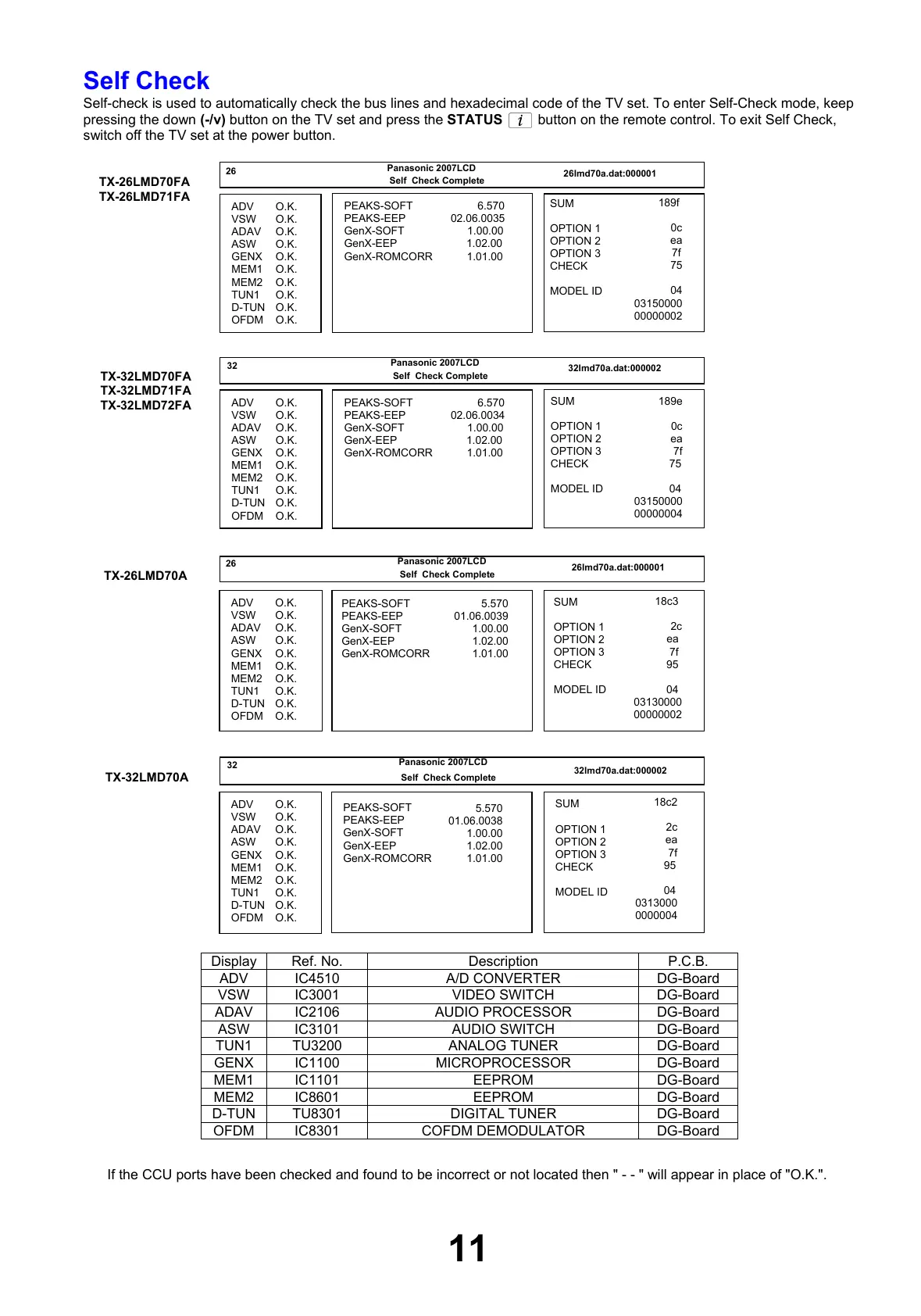

Self Check
Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep
pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,
switch off the TV set at the power button.
Display Ref. No. Description P.C.B.
ADV IC4510 A/D CONVERTER DG-Board
VSW IC3001 VIDEO SWITCH DG-Board
ADAV IC2106 AUDIO PROCESSOR DG-Board
ASW IC3101 AUDIO SWITCH DG-Board
TUN1 TU3200 ANALOG TUNER DG-Board
GENX IC1100 MICROPROCESSOR DG-Board
MEM1 IC1101 EEPROM DG-Board
MEM2 IC8601 EEPROM DG-Board
D-TUN TU8301 DIGITAL TUNER DG-Board
OFDM IC8301 COFDM DEMODULATOR DG-Board
If the CCU
