Panasonic TX-32LMD70FA - Chassis Board Layout; Location of Lead Wiring

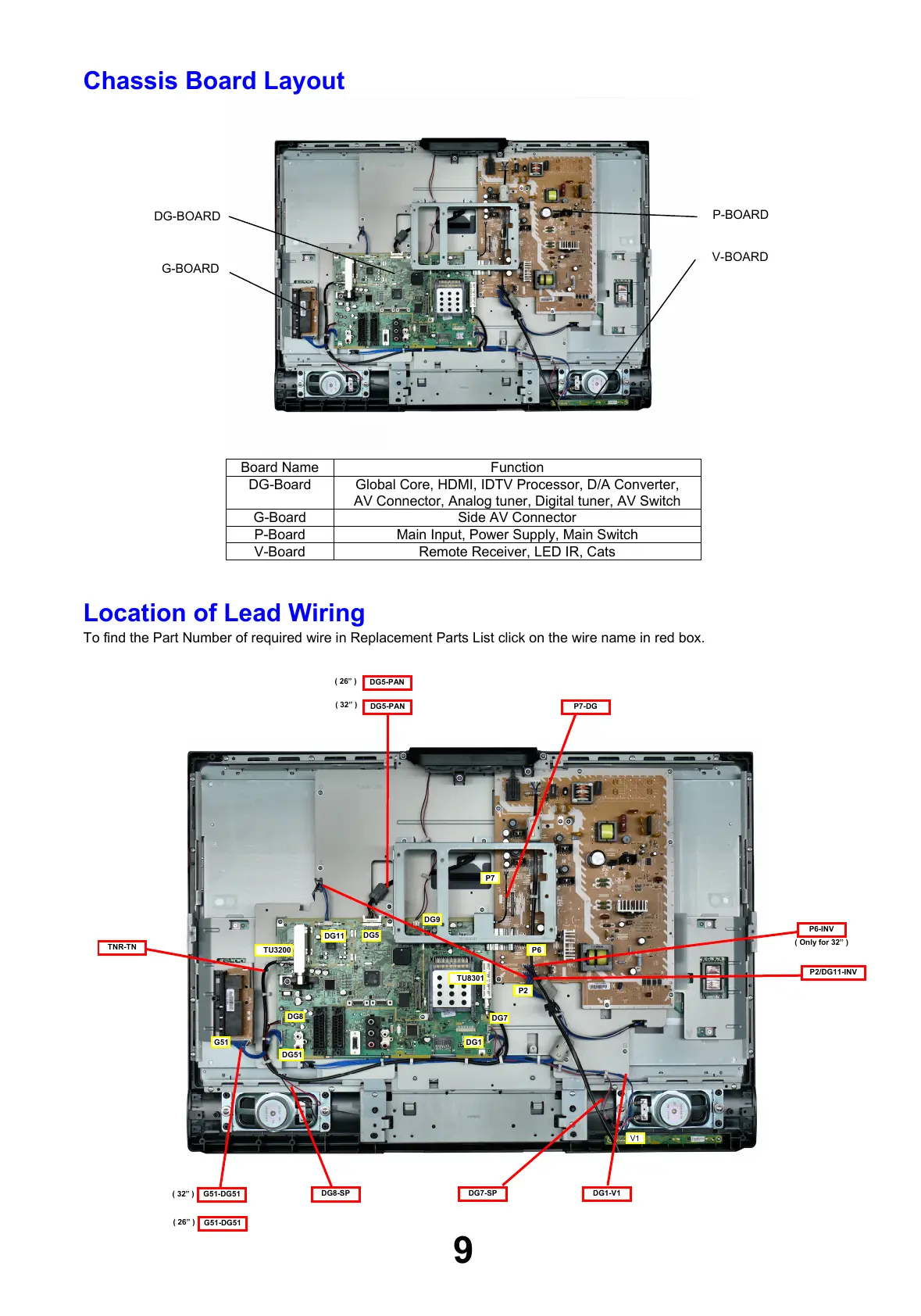

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
DG-Board Global Core, HDMI, IDTV Processor, D/A Converter,
AV Connector, Analog tuner, Digital tuner, AV Switch
G-Board Side AV Connector
P-Board Main Input, Power Supply, Main Switch
V-Board Remote Receiver, LED IR, Cats
V-BOARD
DG-BOARD
P-BOARD
G-BOARD
9
G51-DG51
TU3200
DG11
P7
DG5
DG8
DG51
G51
DG9
DG1
DG7
P6
P2
V1
TU8301
DG1-V1DG7-SP
DG8-SP
P2/DG11-INV
P7-DG
TNR-TN
DG5-PAN
P6-INV
( Only for 32” )
G51-DG51
( 32” )
( 26” )
DG5-PAN
( 32” )
( 26” )
