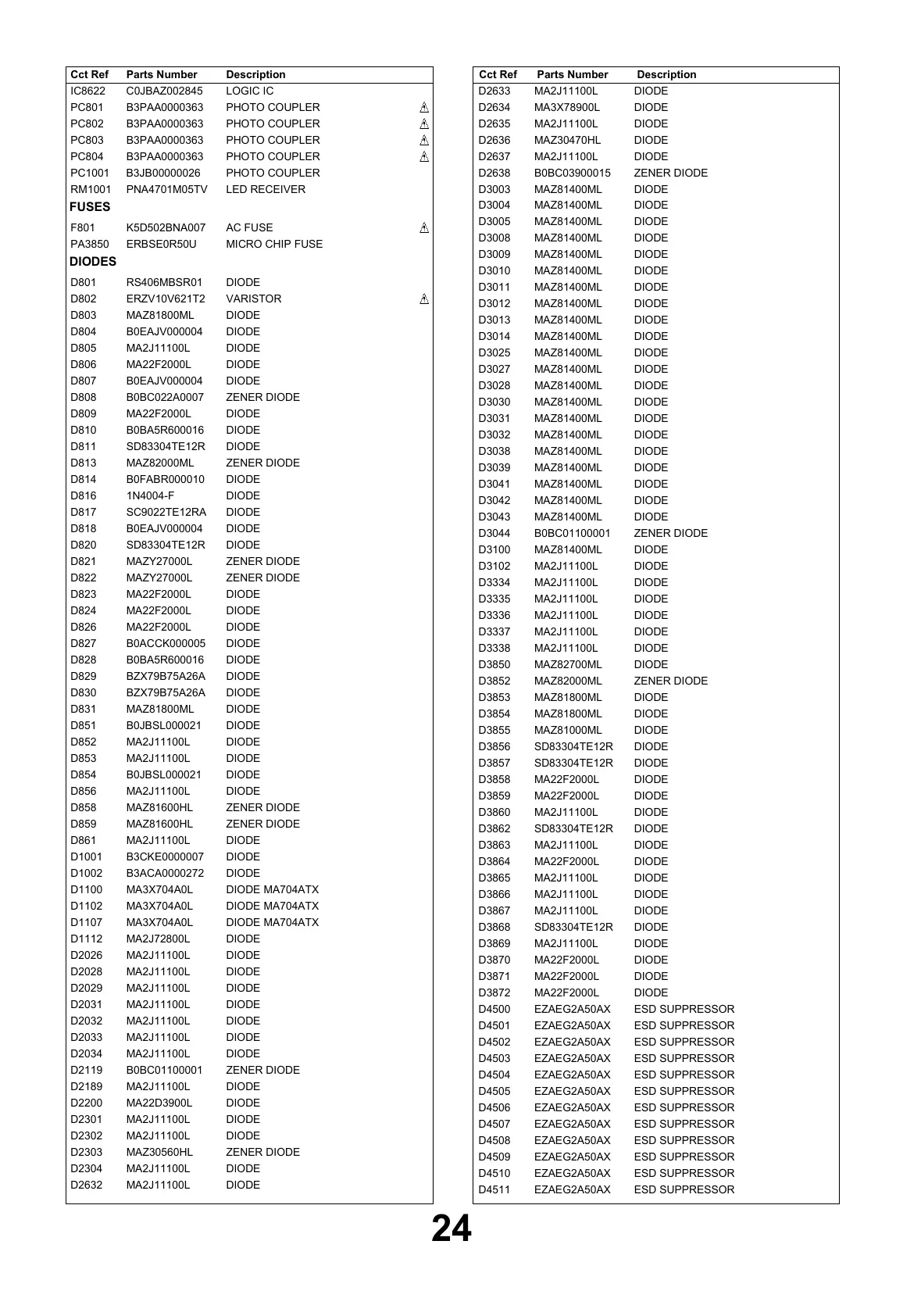

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
LOGIC IC IC8622 C0JBAZ002845
PHOTO COUPLER PC801 B3PAA0000363
PHOTO COUPLER PC802 B3PAA0000363
PHOTO COUPLER PC803 B3PAA0000363
PHOTO COUPLER PC804 B3PAA0000363
PHOTO COUPLER PC1001 B3JB00000026
LED RECEIVER RM1001 PNA4701M05TV
FUSES
AC FUSE F801 K5D502BNA007
MICRO CHIP FUSE PA3850 ERBSE0R50U
DIODES
DIODE D801 RS406MBSR01
VARISTOR D802 ERZV10V621T2
DIODE D803 MAZ81800ML
DIODE D804 B0EAJV000004
DIODE D805 MA2J11100L
DIODE D806 MA22F2000L
DIODE D807 B0EAJV000004
ZENER DIODE D808 B0BC022A0007
DIODE D809 MA22F2000L
DIODE D810 B0BA5R600016
DIODE D811 SD83304TE12R
ZENER DIODE D813 MAZ82000ML
DIODE D814 B0FABR000010
DIODE D816 1N4004-F
DIODE D817 SC9022TE12RA
DIODE D818 B0EAJV000004
DIODE D820 SD83304TE12R
ZENER DIODE D821 MAZY27000L
ZENER DIODE D822 MAZY27000L
DIODE D823 MA22F2000L
DIODE D824 MA22F2000L
DIODE D826 MA22F2000L
DIODE D827 B0ACCK000005
DIODE D828 B0BA5R600016
DIODE D829 BZX79B75A26A
DIODE D830 BZX79B75A26A
DIODE D831 MAZ81800ML
DIODE D851 B0JBSL000021
DIODE D852 MA2J11100L
DIODE D853 MA2J11100L
DIODE D854 B0JBSL000021
DIODE D856 MA2J11100L
ZENER DIODE D858 MAZ81600HL
ZENER DIODE D859 MAZ81600HL
DIODE D861 MA2J11100L
DIODE D1001 B3CKE0000007
DIODE D1002 B3ACA0000272
DIODE MA704ATX D1100 MA3X704A0L
DIODE MA704ATX D1102 MA3X704A0L
DIODE MA704ATX D1107 MA3X704A0L
DIODE D1112 MA2J72800L
DIODE D2026 MA2J11100L
DIODE D2028 MA2J11100L
DIODE D2029 MA2J11100L
DIODE D2031 MA2J11100L
DIODE D2032 MA2J11100L
DIODE D2033 MA2J11100L
DIODE D2034 MA2J11100L
ZENER DIODE D2119 B0BC01100001
DIODE D2189 MA2J11100L
DIODE D2200 MA22D3900L
DIODE
D2301 MA2J11100L
DI
ODE D2302 MA2J11100L
ZENER DIODE D2303 MAZ30560HL
DIODE D2304 MA2J11100L
DIODE D2632 MA2J11100L
DIODE D2633 MA2J11100L
DIODE D2634 MA3X78900L
DIODE D2635 MA2J11100L
DIODE D2636 MAZ30470HL
DIODE D2637 MA2J11100L
ZENER DIODE D2638 B0BC03900015
DIODE D3003 MAZ81400ML
DIODE D3004 MAZ81400ML
DIODE D3005 MAZ81400ML
DIODE D3008 MAZ81400ML
DIODE D3009 MAZ81400ML
DIODE D3010 MAZ81400ML
DIODE D3011 MAZ81400ML
DIODE D3012 MAZ81400ML
DIODE D3013 MAZ81400ML
DIODE D3014 MAZ81400ML
DIODE D3025 MAZ81400ML
DIODE D3027 MAZ81400ML
DIODE D3028 MAZ81400ML
DIODE D3030 MAZ81400ML
DIODE D3031 MAZ81400ML
DIODE D3032 MAZ81400ML
DIODE D3038 MAZ81400ML
DIODE D3039 MAZ81400ML
DIODE D3041 MAZ81400ML
DIODE D3042 MAZ81400ML
DIODE D3043 MAZ81400ML
ZENER DIODE D3044 B0BC01100001
DIODE D3100 MAZ81400ML
DIODE D3102 MA2J11100L
DIODE D3334 MA2J11100L
DIODE D3335 MA2J11100L
DIODE D3336 MA2J11100L
DIODE D3337 MA2J11100L
DIODE D3338 MA2J11100L
DIODE D3850 MAZ82700ML
ZENER DIODE D3852 MAZ82000ML
DIODE D3853 MAZ81800ML
DIODE D3854 MAZ81800ML
DIODE D3855 MAZ81000ML
DIODE D3856 SD83304TE12R
DIODE D3857 SD83304TE12R
DIODE D3858 MA22F2000L
DIODE D3859 MA22F2000L
DIODE D3860 MA2J11100L
DIODE D3862 SD83304TE12R
DIODE D3863 M
A2J11100L
DIODE D3864 MA22F2000L
DIODE D3865 MA2J11100L
DIODE D3866 MA2J11100L
DIODE D3867 MA2J11100L
DIODE D3868 SD83304TE12R
DIODE D3869 MA2J11100L
DIODE D3870 MA22F2000L
DIODE D3871 MA22F2000L
DIODE D3872 MA22F2000L
ESD SUPPRESSOR D4500 EZAEG2A50AX
ESD SUPPRESSOR D4501 EZAEG2A50AX
ESD SUPPRESSOR D4502 EZAEG2A50AX
ESD SUPPRESSOR D4503 EZAEG2A50AX
ESD SUPPRESSOR D4504 EZAEG2A50AX
ESD SUPPRESSOR D4505 EZAEG2A50AX
ESD SUPPRESSOR D4506 EZAEG2A50AX
ESD SUPPRESSOR D4507 EZAEG2A50AX
ESD SUPPRESSOR D4508 EZAEG2A50AX
ESD SUPPRESSOR D4509 EZAEG2A50AX
ESD SUPPRESSOR D4510 EZAEG2A50AX
ESD SUPPRESSOR D4511 EZAEG2A50AX
24
