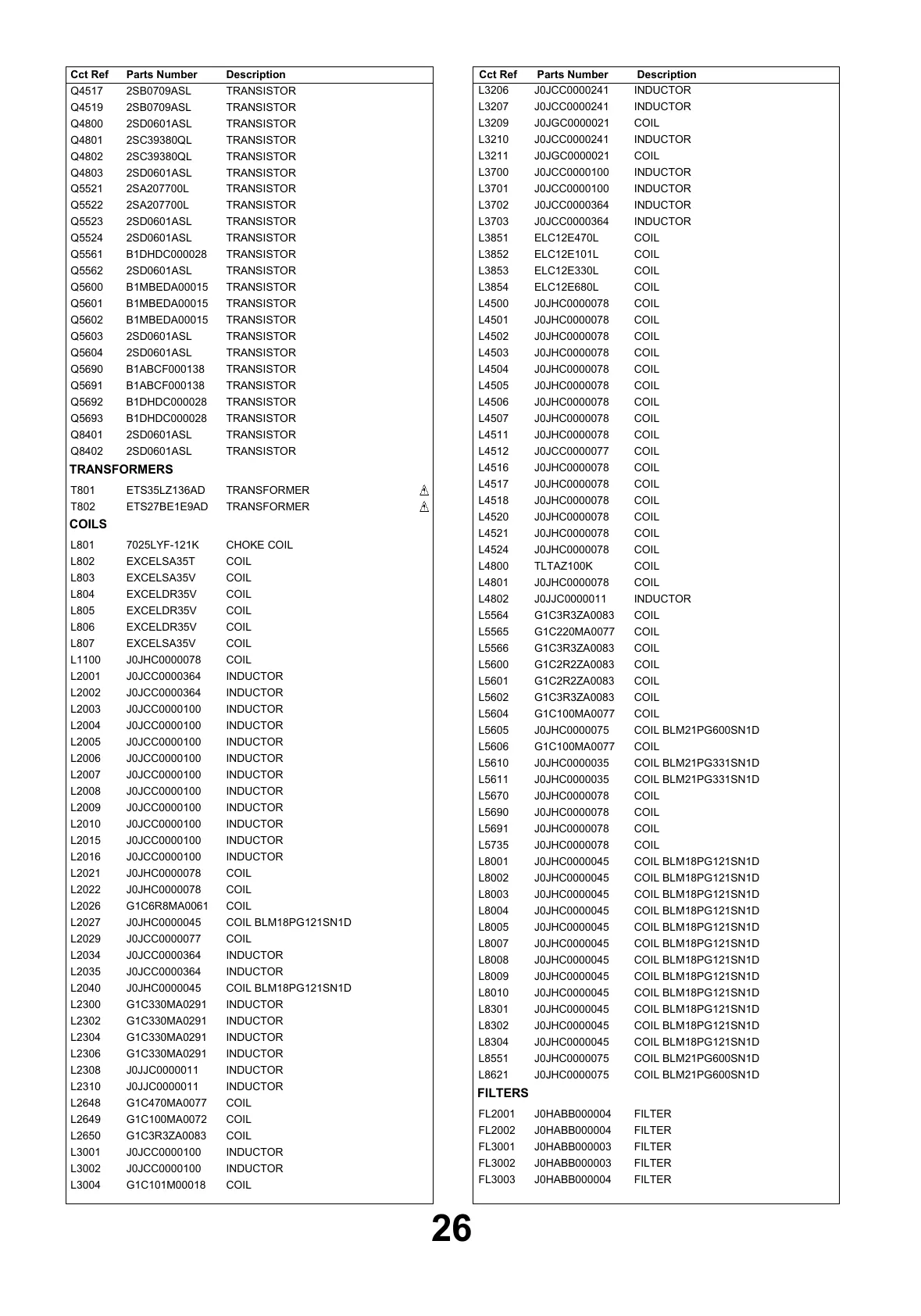

Panasonic TX-32LMD70FA - Page 26

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
TRANSISTOR Q4517 2SB0709ASL
TRANSISTOR Q4519 2SB0709ASL
TRANSISTOR Q4800 2SD0601ASL
TRANSISTOR Q4801 2SC39380QL
TRANSISTOR Q4802 2SC39380QL
TRANSISTOR Q4803 2SD0601ASL
TRANSISTOR Q5521 2SA207700L
TRANSISTOR Q5522 2SA207700L
TRANSISTOR Q5523 2SD0601ASL
TRANSISTOR Q5524 2SD0601ASL
TRANSISTOR Q5561 B1DHDC000028
TRANSISTOR Q5562 2SD0601ASL
TRANSISTOR Q5600 B1MBEDA00015
TRANSISTOR Q5601 B1MBEDA00015
TRANSISTOR Q5602 B1MBEDA00015
TRANSISTOR Q5603 2SD0601ASL
TRANSISTOR Q5604 2SD0601ASL
TRANSISTOR Q5690 B1ABCF000138
TRANSISTOR Q5691 B1ABCF000138
TRANSISTOR Q5692 B1DHDC000028
TRANSISTOR Q5693 B1DHDC000028
TRANSISTOR Q8401 2SD0601ASL
TRANSISTOR Q8402 2SD0601ASL
TRANSFORMERS
TRANSFORMER T801 ETS35LZ136AD
TRANSFORMER T802 ETS27BE1E9AD
COILS
CHOKE COIL L801 7025LYF-121K
COILL802 EXCELSA35T
COIL L803 EXCELSA35V
COILL804 EXCELDR35V
COILL805 EXCELDR35V
COILL806 EXCELDR35V
COIL L807 EXCELSA35V
COIL L1100 J0JHC0000078
INDUCTOR L2001 J0JCC0000364
INDUCTOR L2002 J0JCC0000364
INDUCTOR L2003 J0JCC0000100
INDUCTOR L2004 J0JCC0000100
INDUCTOR L2005 J0JCC0000100
INDUCTOR L2006 J0JCC0000100
INDUCTOR L2007 J0JCC0000100
INDUCTOR L2008 J0JCC0000100
INDUCTOR L2009 J0JCC0000100
INDUCTOR L2010 J0JCC0000100
INDUCTOR L2015 J0JCC0000100
INDUCTOR L2016 J0JCC0000100
COIL L2021 J0JHC0000078
COIL L2022 J0JHC0000078
COIL L2026 G1C6R8MA0061
COIL BLM18PG121SN1DL2027 J0JHC0000045
COIL L2029 J0JCC0000077
INDUCTOR L2034 J0JCC0000364
INDUCTOR L2035 J0JCC0000364
COIL BLM18PG121SN1DL2040 J0JHC0000045
INDUCTOR L2300 G1C330MA0291
INDUCTOR L2302 G1C330MA0291
INDUCTOR L2304 G1C330MA0291
INDUCTOR L2306 G1C330MA0291
INDUCTOR L2308 J0JJC0000011
INDUCTOR L2310 J0JJC0000011
COIL L2648 G1C470MA0077
COIL L2649 G1C100MA0072
COIL L2650 G1C3R3ZA0083
INDUCTOR L3001 J0JCC0000100
INDUCTOR L3002 J0JCC0000100
COIL L3004 G1C101M00018
INDUCTOR L3206 J0JCC0000241
INDUCTOR L3207 J0JCC0000241
COIL L3209 J0JGC0000021
INDUCTOR L3210 J0JCC0000241
COIL L3211 J0JGC0000021
INDUCTOR L3700 J0JCC0000100
INDUCTOR L3701 J0JCC0000100
INDUCTOR L3702 J0JCC0000364
INDUCTOR L3703 J0JCC0000364
COIL L3851 ELC12E470L
COIL
L3852 ELC12E101L
CO
IL L3853 ELC12E330L
COIL L3854 ELC12E680L
COIL L4500 J0JHC0000078
COIL L4501 J0JHC0000078
COIL L4502 J0JHC0000078
COIL L4503 J0JHC0000078
COIL L4504 J0JHC0000078
COIL L4505 J0JHC0000078
COIL L4506 J0JHC0000078
COIL L4507 J0JHC0000078
COIL L4511 J0JHC0000078
COIL L4512 J0JCC0000077
COIL L4516 J0JHC0000078
COIL L4517 J0JHC0000078
COIL L4518 J0JHC0000078
COIL L4520 J0JHC0000078
COIL L4521 J0JHC0000078
COIL L4524 J0JHC0000078
COIL L4800 TLTAZ100K
COIL L4801 J0JHC0000078
INDUCTOR L4802 J0JJC0000011
COIL L5564 G1C3R3ZA0083
COIL L5565 G1C220MA0077
COIL L5566 G1C3R3ZA0083
COIL L5600 G1C2R2ZA0083
COIL L5601 G1C2R2ZA0083
COIL L5602 G1C3R3ZA0083
COIL L5604 G1C100MA0077
COIL BLM21PG600SN1DL5605 J0JHC0000075
COIL L5606 G1C100MA0077
COIL BLM21PG331SN1DL5610 J0JHC0000035
COIL BLM21PG331SN1DL5611 J0JHC0000035
COIL L5670 J0JHC0000078
COIL L5690 J0JHC0000078
COIL L5691 J0JHC0000078
COIL L5735 J0JHC0000078
COIL BLM18PG121SN1DL8001 J0JHC0000045
COIL BLM18PG121SN1DL8002 J0JHC0000045
COIL BLM18PG121SN1DL8003 J0JHC0000045
COIL BLM18PG121SN1DL8004 J0JHC0000045
COIL BLM18PG121SN1DL8005 J0JHC0000045
COIL BLM18PG121SN1DL8007 J0JHC0000045
COIL BLM18PG121SN1DL8008 J0JHC0000045
COIL BLM18PG121SN1DL8009 J0JHC0000045
COIL BLM18PG121SN1DL8010 J0JHC0000045
COIL BLM18PG121SN1DL8301 J0JHC0000045
COIL BLM18PG121SN1DL8302 J0JHC0000045
COIL BLM18PG121SN1DL8304 J0JHC0000045
COIL BLM21PG600SN1DL8551 J0JHC0000075
COIL BLM21PG600SN1DL8621 J0JHC0000075
FILTERS
FILTER FL2001 J0HABB000004
FILTER FL2002 J0HABB000004
FILTER FL3001 J0HABB000003
FILTER FL3002 J0HABB000003
FILTER FL3003 J0HABB000004
26
