IC’S TRAN’S
IC851 B1 Q3852 A1
IC3854 F2 Q3853 A1
IC3855 F5 Q3854 A1
Q3855 B1
DIODE’S
Q3856 B1
D803 A3 Q3857 D5
D805 A5 Q3858 F7
D806 B6 Q3859 D6
D808 B6 Q3860 F7
D809 B2 Q3863 F2
D811 B5 Q3864 F2
D813 A2 Q3865 E3
D817 B2 Q3866 F6
D820 B4 Q3867 F6
D821 B2 Q3868 D6
D822 B3 Q3869 D7
D823 B2 Q3870 B1
D824 B2 Q3871 B1
D826 B2 Q802 B2
D827 B4 Q803 B3
D831 A5 Q804 A3
D852 B1 Q805 B2
D853 B1 Q807 A5
D856 C1 Q808 B4
D858 C1 Q809 C2
D859 C1 Q810 B4
D861 D2 Q811 D4
D3850 F2 Q813 A2
D3852 F4 Q851 B1
D3853 F3 Q852 B1
D3854 F4 Q853 C1
D3855 F3 Q854 C1
D3856 D5
D3857 F6
TP’S
D3858 E5 TP836 C5
D3859 F6 TP852 E3
D3860 F3 TP853 E2
D3862 F6 TP854 B1
D3863 E4 TP855 C1
D3864 F5 TP856 E5
D3865 F3 TP857 F7
D3866 F4 TP858 F5
D3867 F4 TP859 F3
D3868 E6 TP860 F5
D3869 F2 TP861 F6
D3870 D6 TP862 F2
D3871 F2 TP863 F2
D3872 F5 TP864 E6

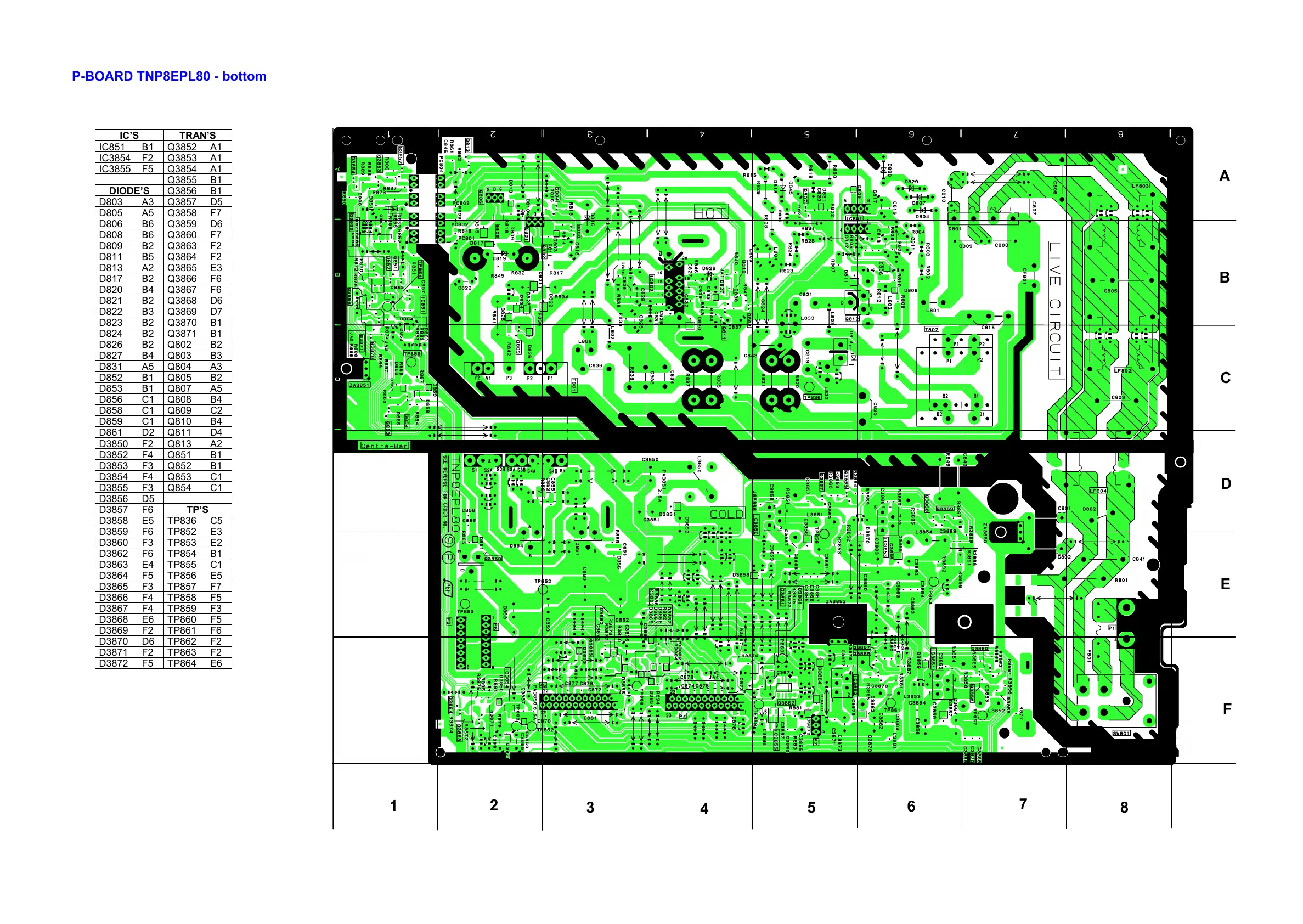

P-BOARD TNP8EPL80 - bottom
7
6
5
4
2
3
1
8
A
B
C
D
E
F
