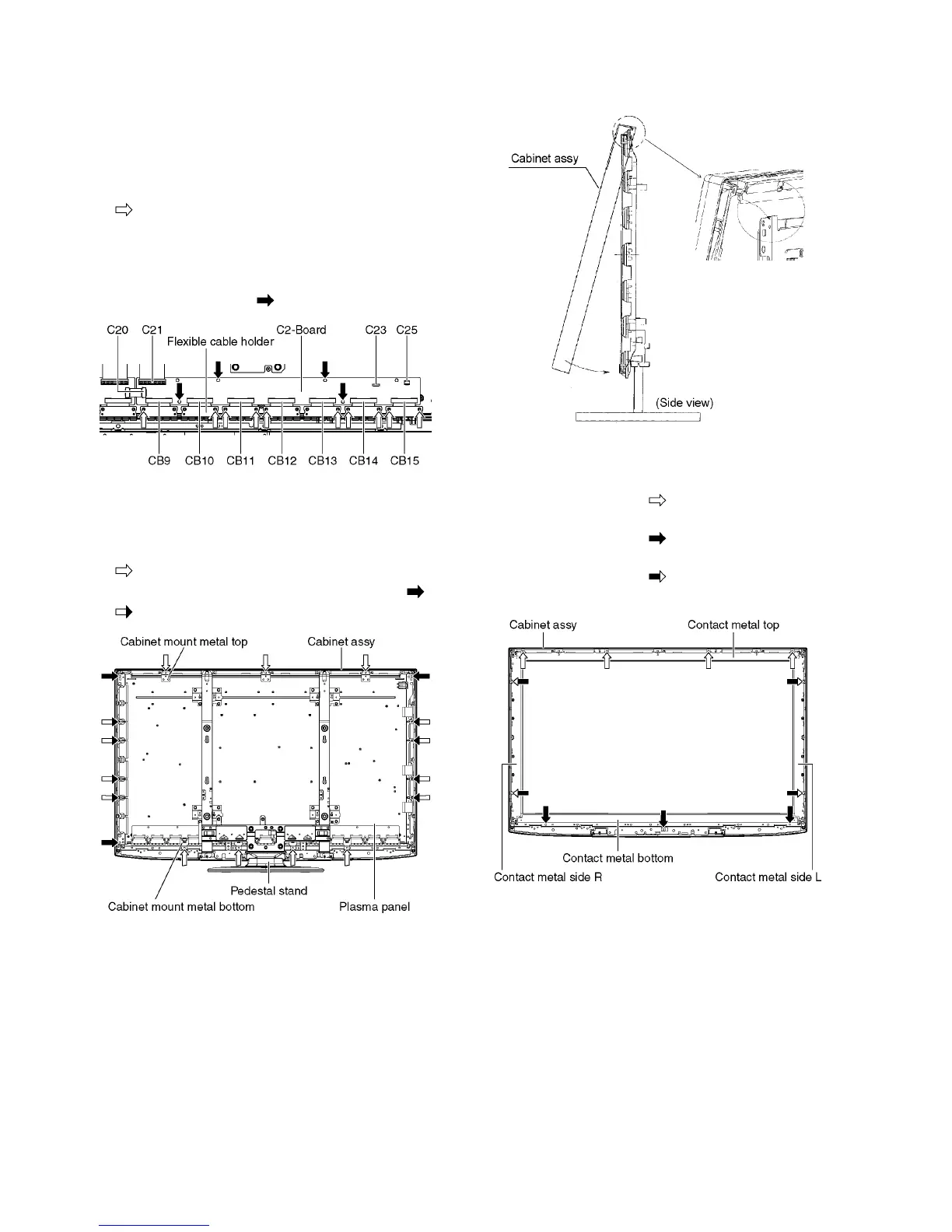

9.19. Remove the C2-Board
1. Remove the Tuner unit. (See section 9.6.)
2. Remove the Hanger metal L and the One leg bracket.
(See section 9.15.)
3. Remove the Cabinet mount metal bottom. (See section
9.16.)
4. Remove the flexible cable holder fastening screws (×10
).
5. Disconnect the flexible cables (CB9, CB10, CB11, CB12,
CB13, CB14 and CB15).
6. Disconnect the flexible cables (C20 and C21).
7. Disconnect the connectors (C23 and C25).
8. Remove the screws (×4 ) and remove the C2-Board.
9.20. Remove the Plasma panel sec-
tion from the Cabinet assy
1. Remove the cabinet mount metals fastening screws (×7
).
2. Remove the plasma panel fastening screws (×3 , ×8
) and remove the cabinet assy.
3. For leaving the cabinet assy from the plasma panel, pull
the bottom of the cabinet assy forward, lift, and remove.
9.21. Remove the Contact metals
1. Remove the Cabinet assy. (See section 9.20.)
2. Remove the screws (×4 ).
3. Remove the Contact metal top.
4. Remove the screws (×3 ).
5. Remove the Contact metal bottom.
6. Remove the screws (×4 ).
7. Remove the Contact metal side (L, R).
