Panasonic TX-P42VT20E - P-Board Parts Location (Foil Side); P-Board Parts Location (Component Side)

98

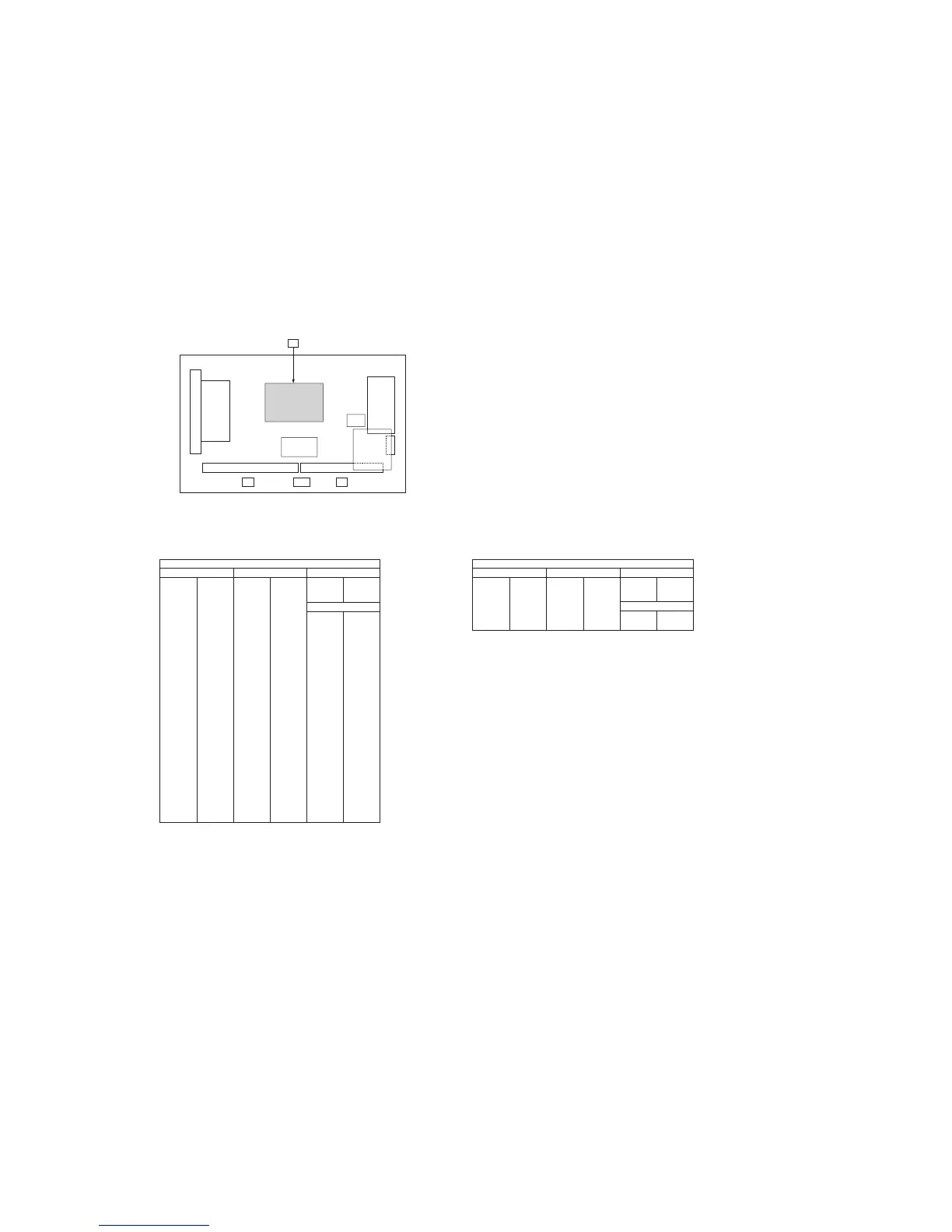

Parts Location
P-BOARD (FOIL SIDE)
IC100 F-3
IC200 G-2
IC201 E-2
IC202 F-1
IC400 E-3
IC401 D-2
IC500 E-1
IC600 E-1
IC601 E-2
IC602 D-2
IC603 D-1
IC700 D-5
IC701 C-6
IC800 D-2
IC901 C-3
IC902 C-3
IC903 C-3
IC904 C-3
IC
Q100 E-2
Q101 F-3
Q103 G-3
Q104 G-3
Q300 E-4
Q301 E-4
Q302 E-5
Q303 E-4
Q400 E-3
Q401 E-3
Q402 E-3
Q505 C-1
Q600 H-5
Q601 C-2
Q602 H-5
Q609 H-5
Q701 D-5
Q703 D-5
Q705 D-6
Q706 D-6
Q707 D-6
Q708 C-6
Q709 D-5
Q710 D-5
Q711 D-5
Q712 C-5
Q713 C-5
Q714 D-6
Q715 C-6
Q800 B-2
Q801 C-2
Q804 B-3
Q805 C-2
Q806 C-2
Q807 C-2
Q900 B-3
Q901 C-4
Q902 C-3
TRANSISTOR
R141 F-3
R923 B-3
VR251 D-5
TP700 F-5
TP900 B-4
VOLUME
TEST POINT
Parts Location
IC201 D-2
IC400 E-3
IC
Q103 C-3
Q104 C-3
Q302 E-5
Q303 E-4
Q901 G-4
TRANSISTOR
R141 D-2
R923 H-3
VR251 F-5
TP700 D-5
TP900 H-4
VOLUME
TEST POINT
P-BOARD (COMPONENT SIDE)
P
