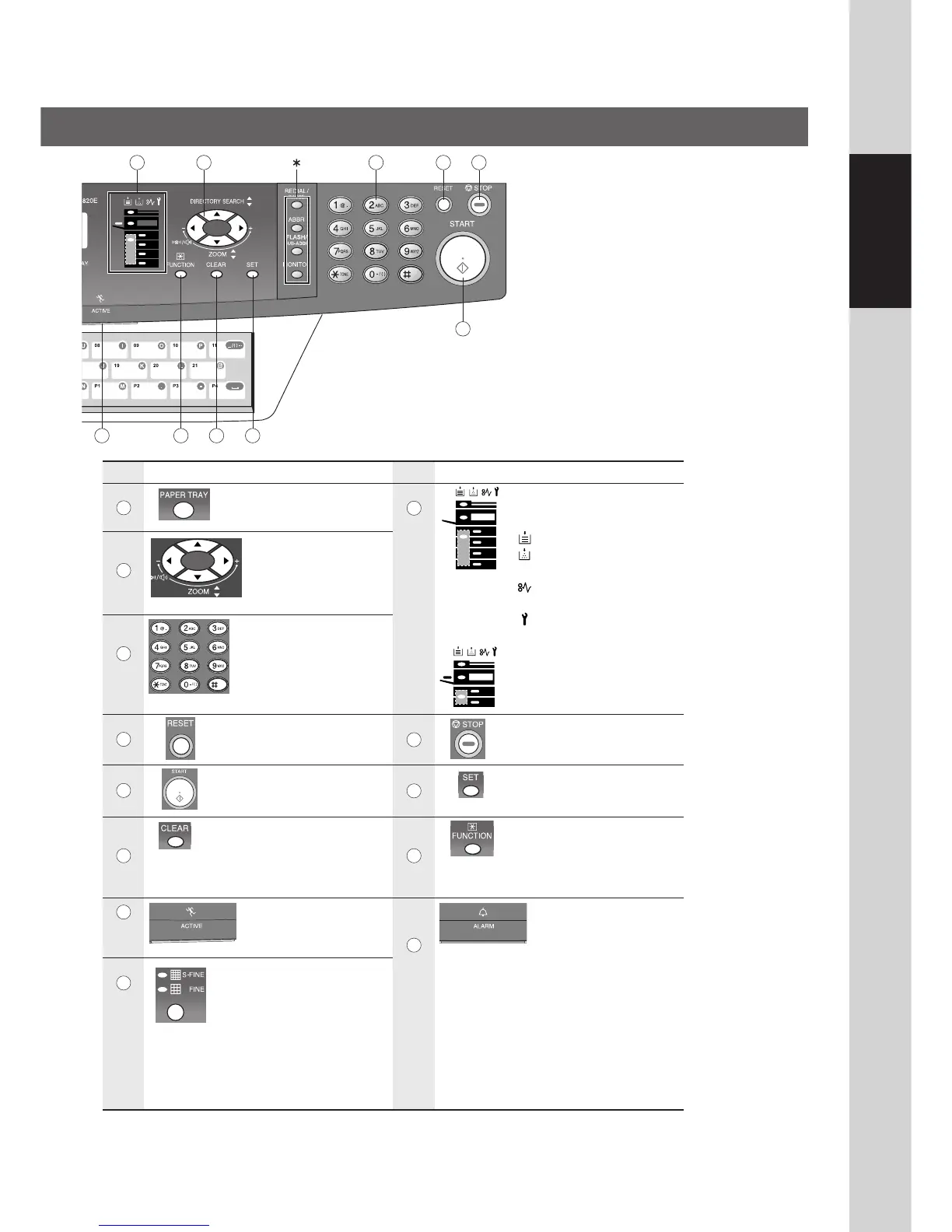

PAPER TRAY Key
Selects the paper tray.
Warning Indications
When unit is used as a
photocopier.
: Add Paper (See page 14)
: Replace Toner Bottle
(See page 16)
: Removing misfed paper
(See pages 16-21)
: Call Service
Cursor Key
To select the zoom
ratio, etc.
(For DP-1520P)
Keypad
Sets copy quantities or
inputs the parameter(s) of
Function settings.
RESET Key
Resets all features to the
initial power-on state.
START Key
Starts the copy job.
SET Key
Sets the parameter(s) of
Function settings.
CLEAR Key
Clears the copy count in
the display.
FUNCTION Key
Use when changing the
paper size, initial function
values (default values) and
key operator settings.
ALARM LED (RED)
Lights/Flashes when
trouble occurs.
ACTIVE LED (GREEN)
Lights when machine is
active.
Lights:
Machine detected a trouble status
● No paper in the selected tray or toner
has run out.
● Machine detected trouble, such as
paper misfeed or jam.
Flashes:
Machine detected an alarm status
● No paper in the Tray. (Not selected tray).
● Toner is getting low, etc.
STOP Key
Stops the copy run.
29
Sets scanning resolution.
(See page 60)
∗
Used for Fax, Internet Fax, and
Email Functions.
(except for the ABBR Key)
(See page 61)
NOTE:
To adjust the brightness of the LCD display, press and while holding down the CLEAR Key, keep
pressing the ORIGINAL SIZE or COPY SIZE Key until the desired brightness is achieved.
ORIGINAL SIZE : Dimmer
COPY SIZE : Brighter
