PANAVISION millennium - Page 12

SIDE VIEW
REAR MOUNT
1000' MAG
SIDE VIEW
TOP MOUNT
1000' MAG

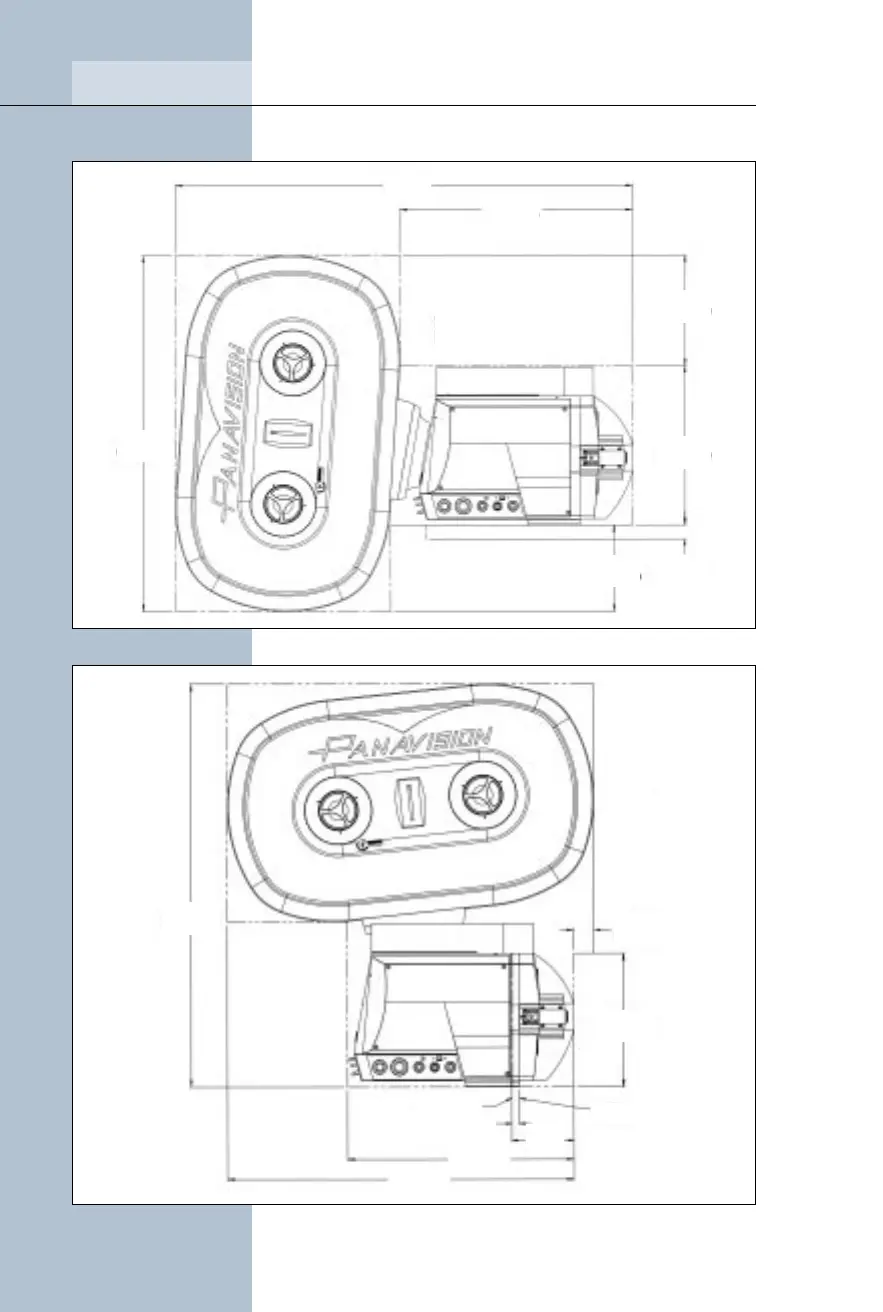

1.3 Camera illustrations—1000' magazine
23.96"
(609mm)
12.19"
(309.6mm)
5.78"
(146.8mm)
8.35"
(212.1mm)
.74"
(18.8mm)
4.51"
(114.6mm)
20.38"
(517.7mm)
17.61"
(447.3mm)
11.53"
(292.9mm)
6.75"
(171.5mm)
1.01"
(25.7mm)
3.15"
(80mm)
.375"
(9.5mm)
IMAGE PLANE
CAMERA HOUSING
18.63"
(473.2mm)
