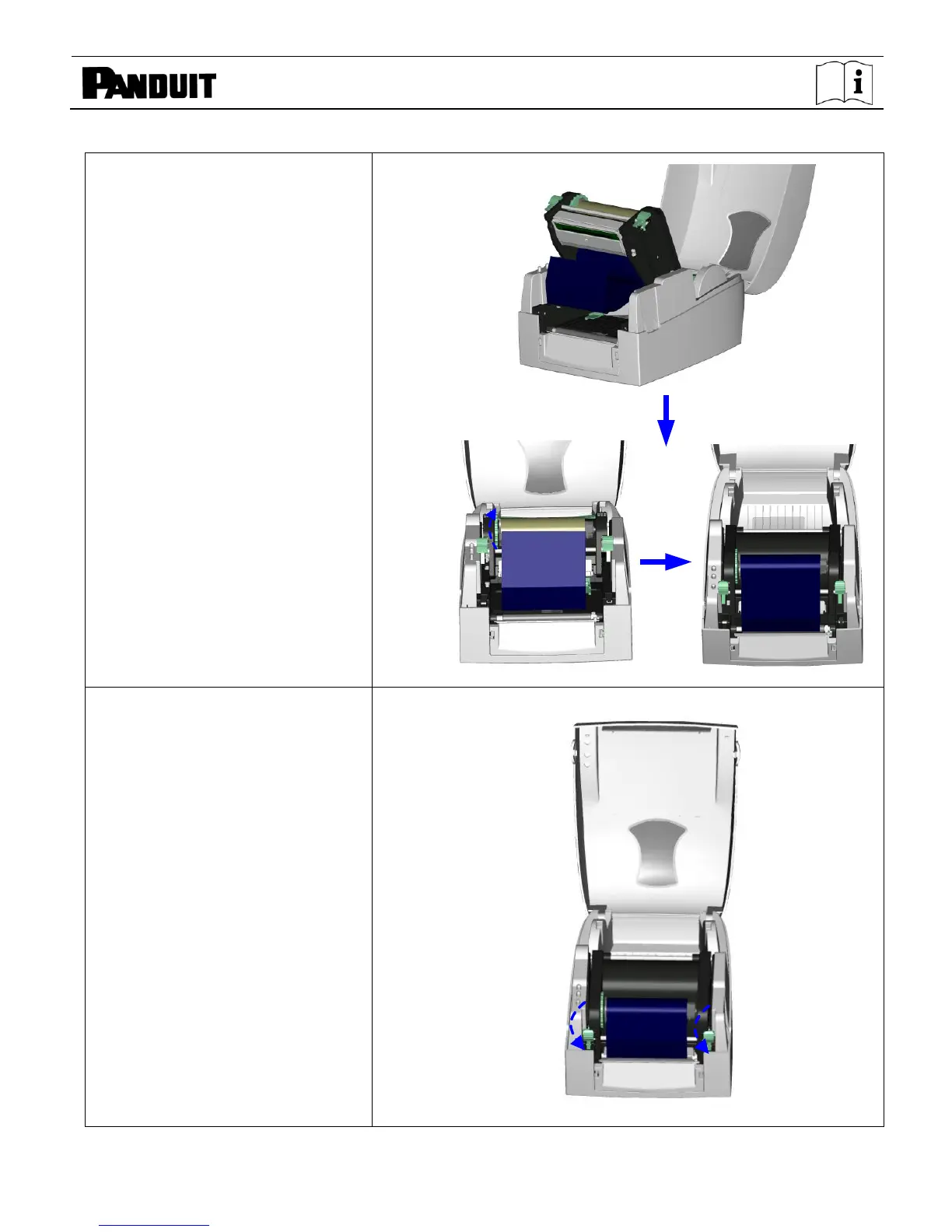

4. Feed the ribbon from the Ribbon
Supply Shaft under the Print
Head.
5. Wrap the ribbon around the
Ribbon Shaft and stick the ribbon
onto the Empty Ribbon Roll Core.
【 Note 】
The Ribbon Core must not spin
freely on Ribbon Shaft (Mandrel).
【 Note 】
Ribbon must be coated side out
(away from print head contact).
6. Firmly close the upper print
mechanism, pressing down firmly
on both sides of print mechanism.
