Panduit TDP43ME - Ribbon Installation

TDP43ME
TDP43ME: PA26305A01_05 Page: 7 of 59 12-2011

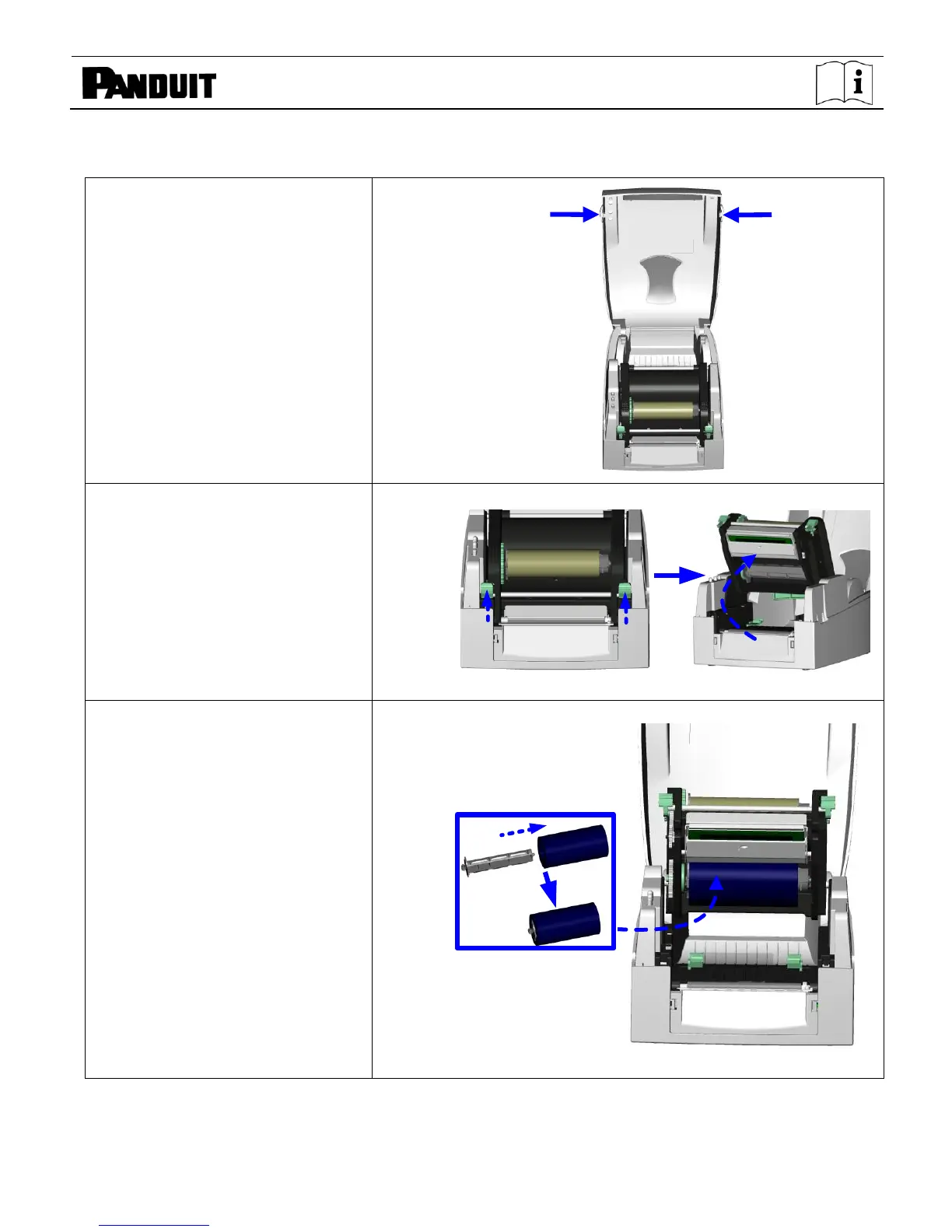

2-1. Ribbon Installation
1. Place the printer on a horizontal
surface, and open the top cover
by pressing the Cover Open
Buttons on both sides.
2. Loosen and then lift the upper
print mechanism by pressing the
locking tenons.
3. Place a new ribbon roll onto the
ribbon supply shaft.
