14.1.3. Duplex Unit Jam

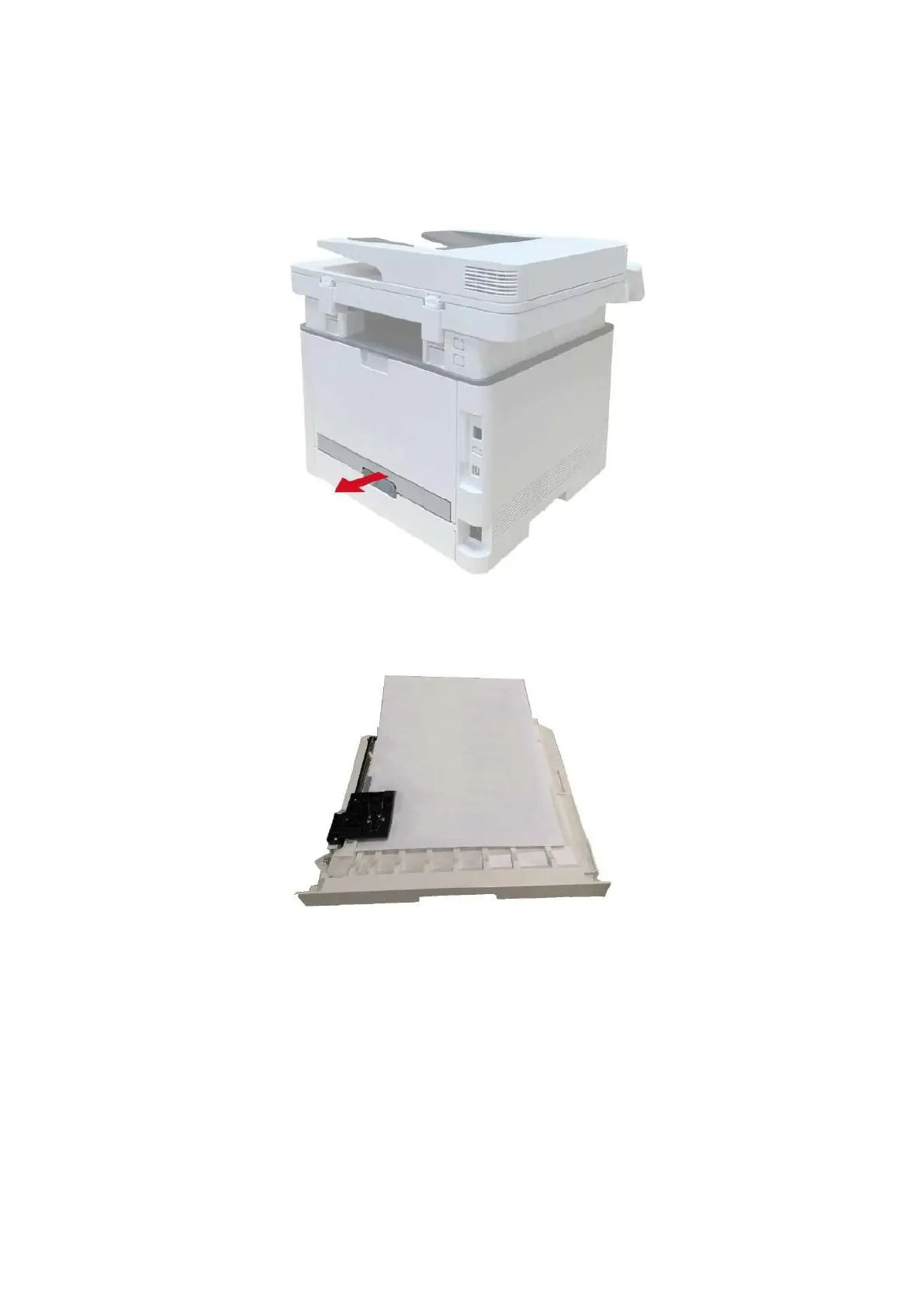

1. Remove the duplex printing unit from the back of the printer.

2. Remove the jammed paper from the duplex unit.
