Pantum BM5100FDW Series User Manual

5
4
USB Interface
For connecting product to computer with USB cable.
5
Power Interface
For connecting product to power with power cord.
6
Rear Cover
For paper release when it gets jammed.
7
Duplex Printing Unit
For paper feed at duplex printing and paper release when paper
gets jammed at duplex printing.
8
Rear USB port
For extension of storage capacity of secure printing.
Note:
• Printer appearance may differ because of various models and functions, so the schematic
diagram is only for your reference.

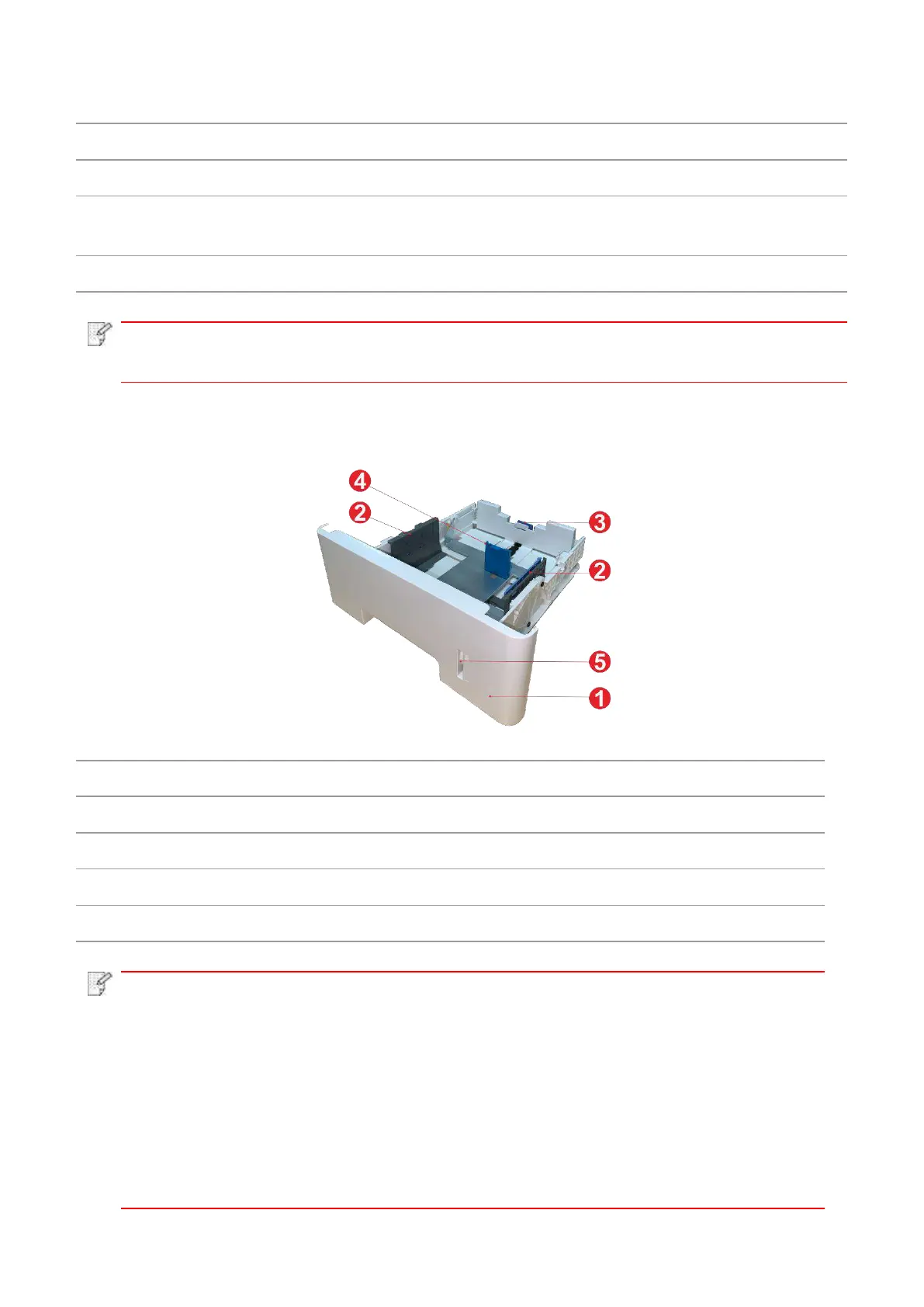

Optional tray
1
Optional tray
For placing media to be printed in optional tray.
2
Paper width guide of tray
Slide paper width deflector to adapt to paper width.
3
Paper length guide of tray
Slide paper length deflector to adapt to paper length.
4
A5/A6 stopper
Install the stopper to match the A5 L/A6 paper size.
5
Paper Level Indicator
Indicate the amount of paper left in optional tray.
Note：
• The printer can support up to two optional trays.
• If you want to buy optional trays, please contact the local dealer who has purchased
the printer.
• Printer appearance may differ because of various models and functions, so the
schematic diagram is only for your reference.
• If you need to print A5 L, A6 size, please install A5/A6 stopper on the tray first. For
installation, please refer to the Quick Installation Guide for optional accessories.
• A5/A6 stopper is not available separately, please keep it properly.

Pantum BM5100FDW Series Specifications

General

Print Technology	Laser
Duplex Printing	Automatic
Connectivity	USB 2.0, Ethernet, Wi-Fi
Max. Monthly Duty Cycle	80, 000 pages
Output Capacity	150 sheets
ADF Capacity	50 sheets
Fax Function	Yes
Memory	512 MB
Functions	Print, copy, scan, fax
Operating System Compatibility	Windows, macOS, Linux
Print Speed	40 ppm
Print Resolution	1200 x 1200 dpi
Mobile Printing	AirPrint, Mopria, Pantum App
Input Capacity	250 sheets
Scanner Type	Flatbed, ADF
Scan Resolution	1200 x 1200 dpi
Copy Speed	40 cpm
Media Types Supported	Plain paper, envelopes, labels
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal
