ParaBody 660 - Page 10

10

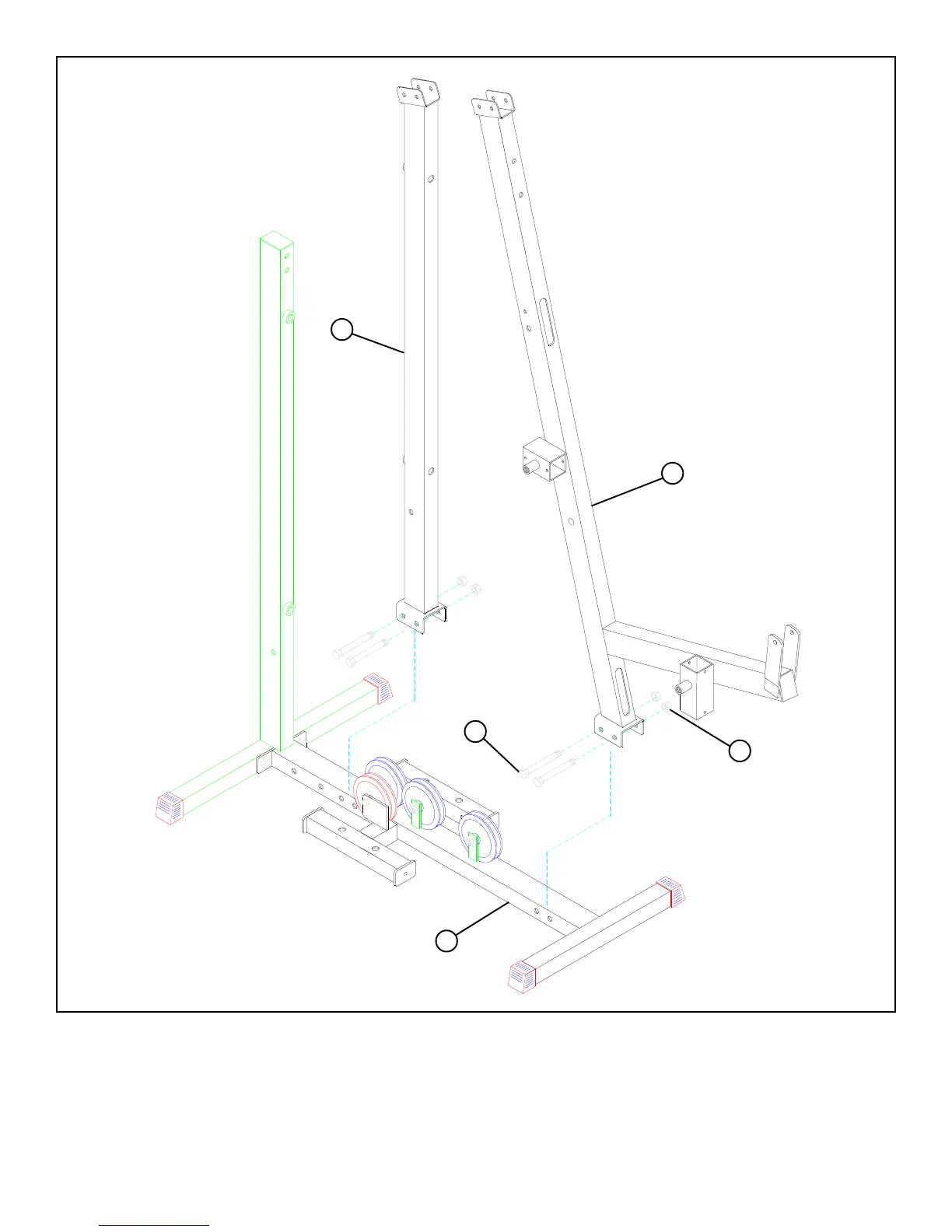

FIGURE 5
STEP 5
• LOOSELY assemble the FRONT (25) & MIDDLE UPRIGHTS (8) to the BASE (1) using four 1/2 X 4” BOLTS (88) and four 1/2” LOCK
NUTS (94) as shown in FIGURE 5.
25
1
1/2 X 4” 88
94
8
