11

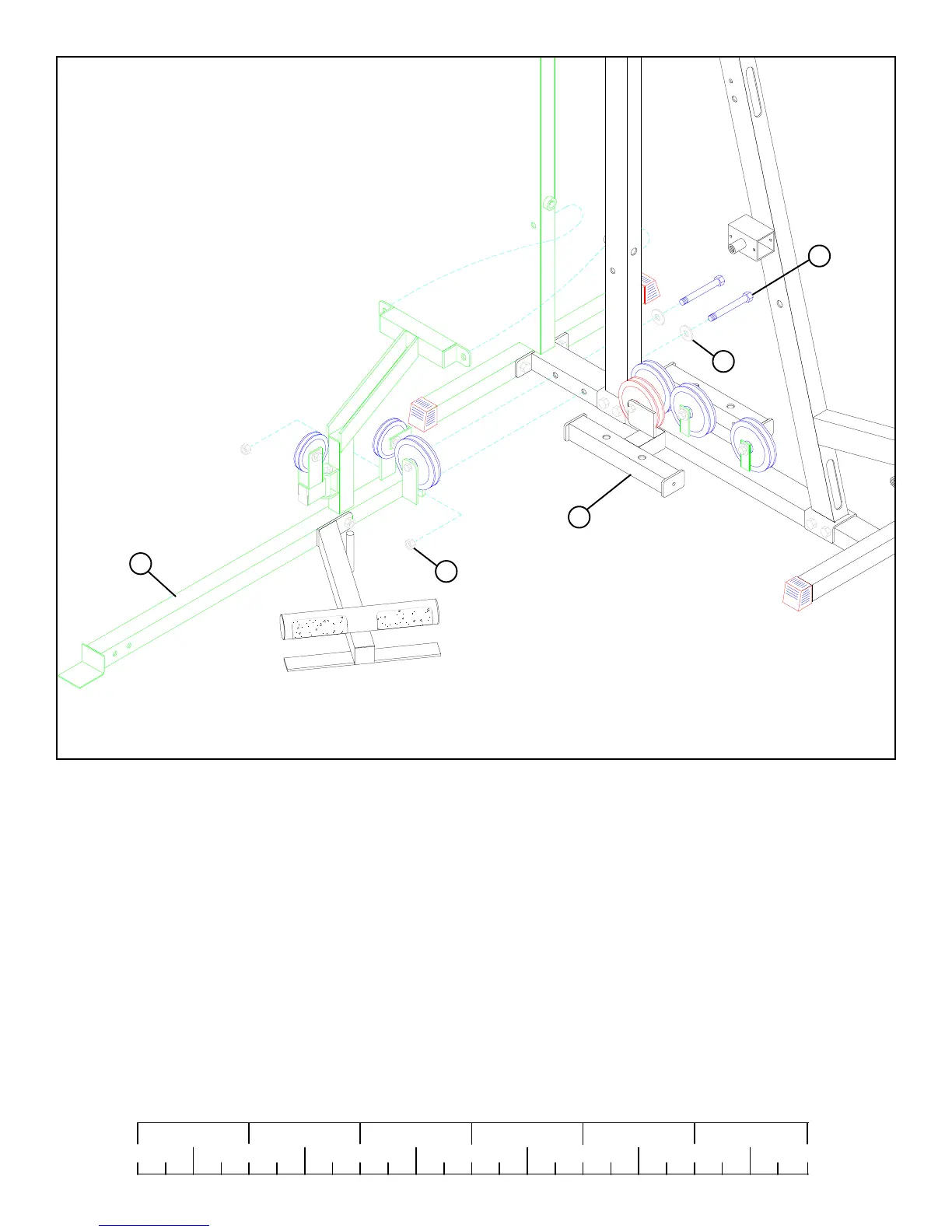

FIGURE 6
STEP 5
LOOSELY assemble the PRESS BASE (18) to the BASE (1) using two 1/2 X 4” BOLTS (88), two 1/2” WASHERS (93), and two 1/2”
LOCK NUTS (94). See FIGURE 6.
88 1/2 X 4”
18
1
94
93
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
