ParaBody 660 - Page 9

9

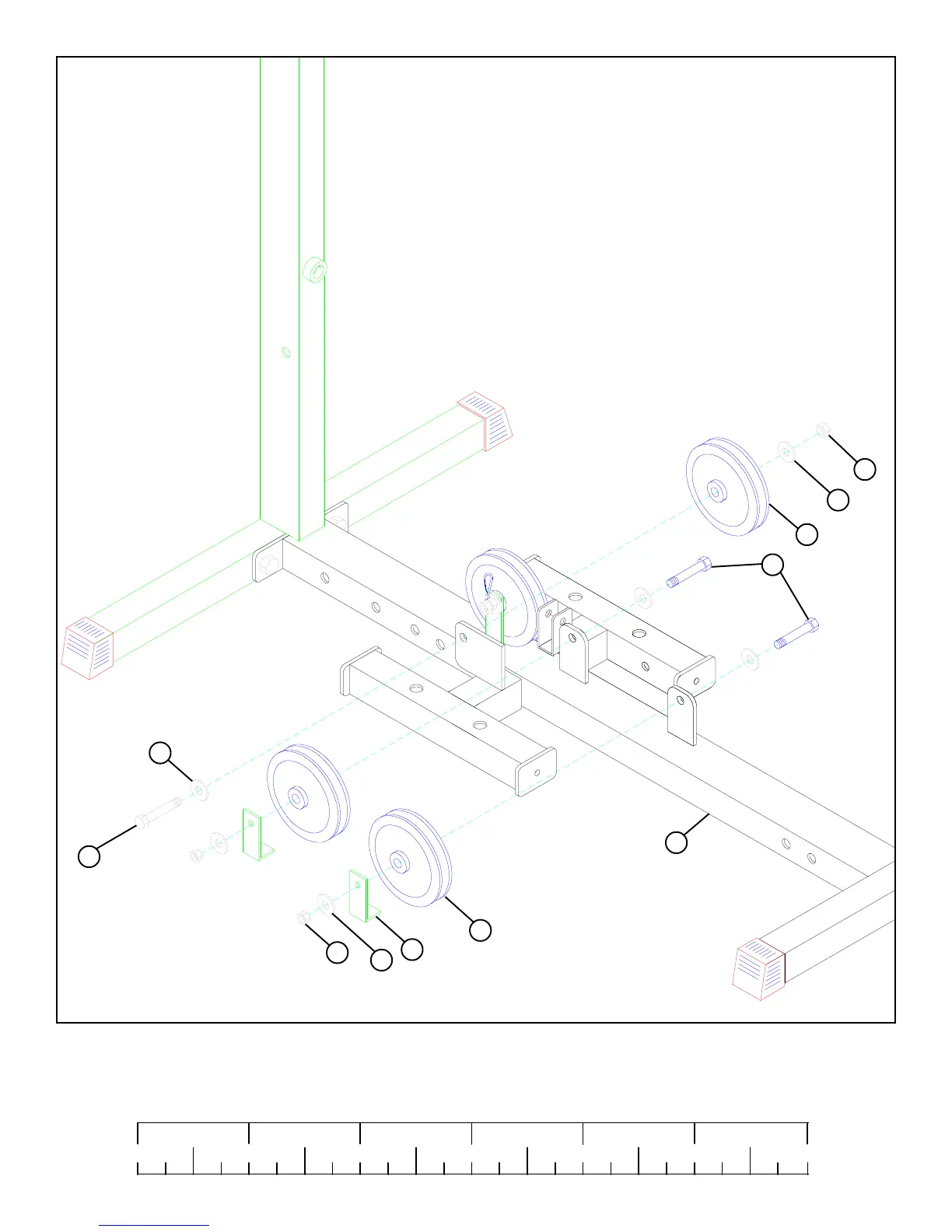

FIGURE 4
STEP 4
• SECURELY assemble three 4-1/2” PULLEYS (43) to the flats on the BASE (1) using three 3/8 X 2” BOLTS (84), six 3/8” WASHERS (91),
two 2-7/8” L-BRACKETS (44), and three 3/8” LOCK NUTS (92). See FIGURE 4.
