ParaBody 660 - Page 18

18
FIGURE 16
STEP 16
FIGURE 17
STEP 17

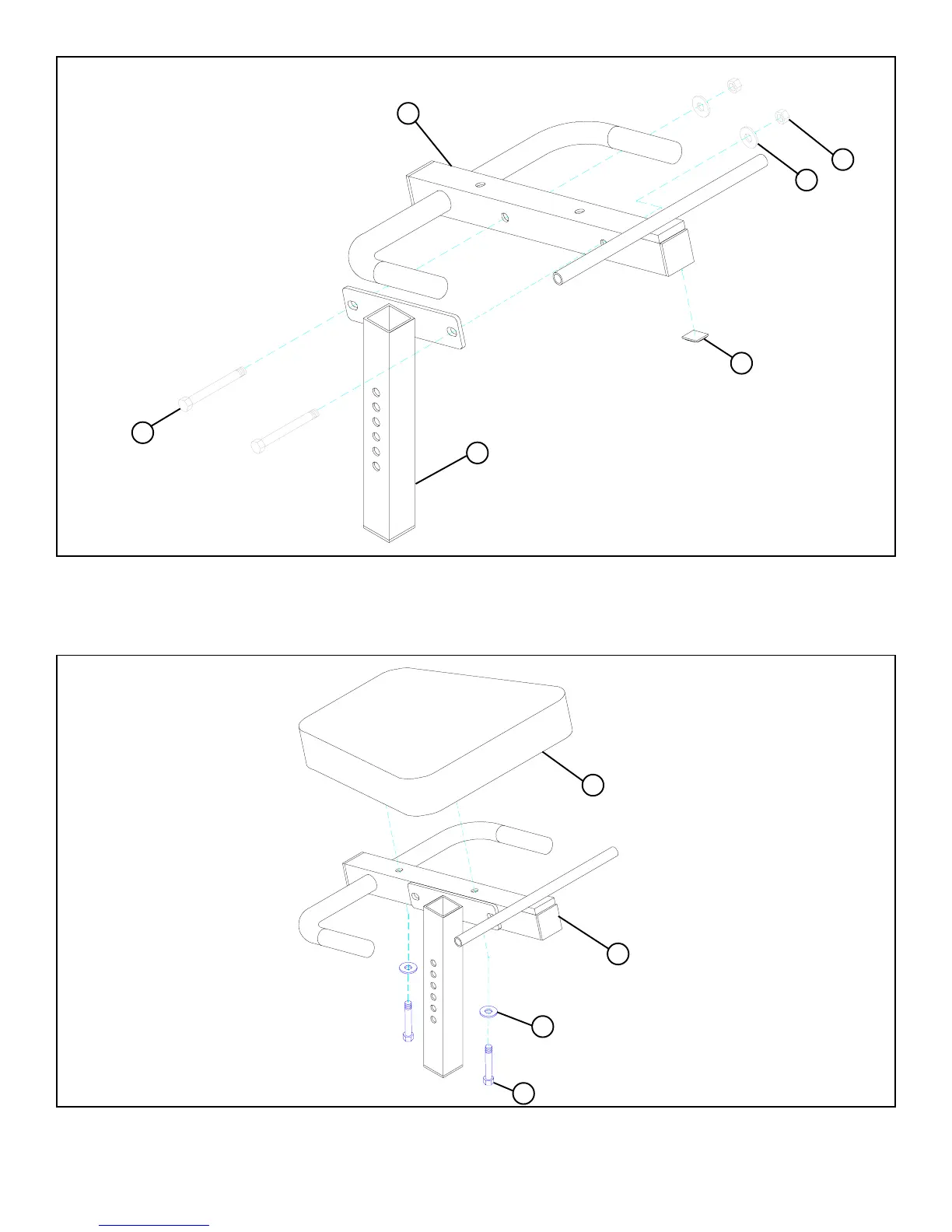

• SECURELY assemble the PEC SEAT ADJUST (9) to the PEC SEAT (5) using two 1/2 X 3” BOLTS (87), two 1/2” WASHERS
(93) and two 1/2” LOCK NUTS (94). See FIGURE 16.
• SECURELY attach one 3/4” SQ. RUBBER BUMPER (97) to the PEC SEAT (5) as shown in FIGURE 16.
• SECURELY assemble the PEC SEAT PAD (41) to the PEC SEAT (5) using two 3/8 X 2-3/4” (85) and two 3/8” WASHERS (91). See
FIGURE 17.
5
9
94
93
97
41
85 3/8 X 2-3/4”
1/2 X 3” 87
5
91
