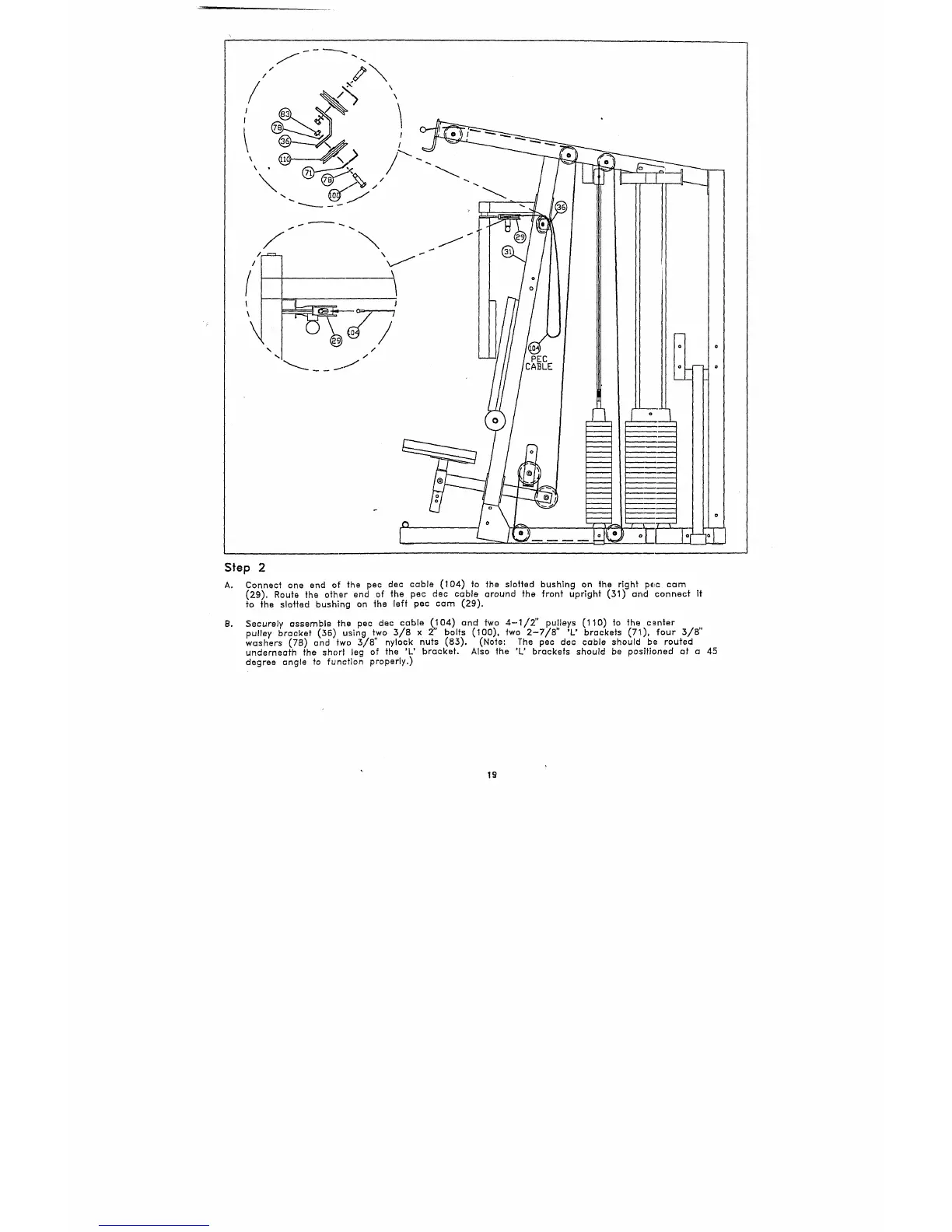

Step 2
A. Conneot one end of the pec deo cable (104) to the slotted bushing on the right peo oam
(29). Route the other end of the pec dec cable around the front upright (31) and connect
to the slotted bushing on the left pec cam (29).
B. Securely assemble the pec dec cable (104) and tWO 4-1/2" pulleys (110) to the c-=nter
pulley bracket (36) uslng..t,,wo 3/8 x 2" b. olfs (100), two 2-7/8" ’L’ brackets (71), four
washers (78) and two 3/8 nylock nuts (.83). (Note: The pec dee cable should be routed
underneath the shorl leg of the ’L’ bracket. Also the ’L’ brackets should be positioned af a 45
degree angle to function properly.)
"
19
