ParaBody cm3 - Step 15: Pulley & Cable Connections; Attach Pulley to Boom Plates; Attach Stack Cable to Bracket

STEP 15:

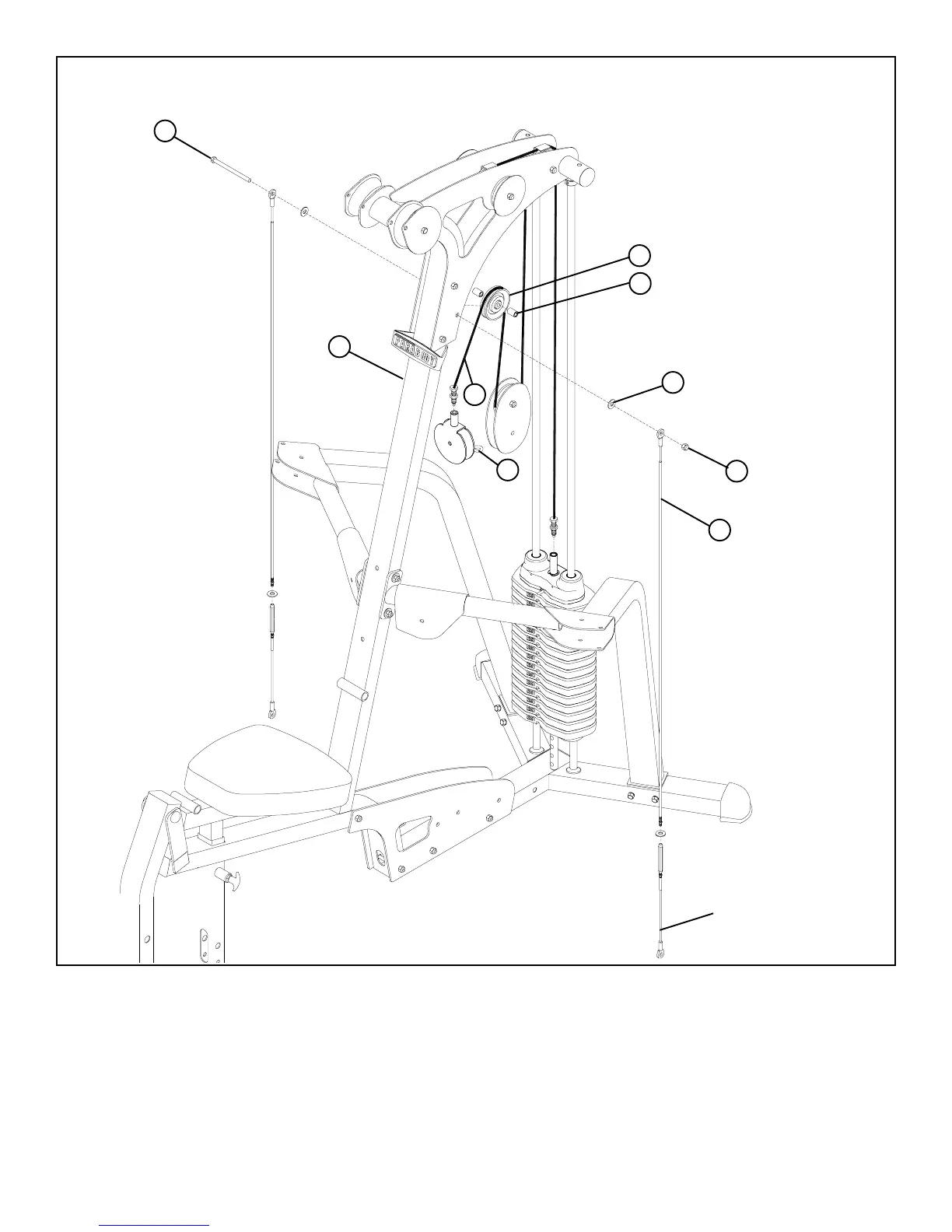

FIGURE 15
42
37
29
51
3/8 X 4-1/4” 68
2
63
• Assemble one 3-1/2” PULLEY (37) to the BOOM PLATES (14 & 15) using one 3/8 X 4-1/4” BOLT (68), two 3/8” SAE WASHERS
(64), two GUIDE CABLES (65), two 3/8 X 1” SPACERS (51) and one 3/8” LOCK NUT (63). See FIGURE 15.(Note: Loop the
WEIGHT STACK CABLE around the PULLEY prior to assembling to the BOOM PLATES.)
• Screw the short threaded end of the WEIGHT STACK CABLE (29) into the end of the PULLEY BRACKET (9) .See FIGURE 15.
65
64
SHORT CABLE
• Disassemble the SHORT CABLE and the turnbuckle on the GUIDE CABLE (65) as shown in FIGURE 15. The SHORT CABLE
will be reassembled later.
14
