ParaBody cm3 - Step 13: Pulley & Cable Guard Attachment; Step 14: Weight Stack Pin & Cable Routing; Assemble Pin & Route Stack Cable; Route Cable & Assemble Pulleys

13
STEP 13:
STEP 14:

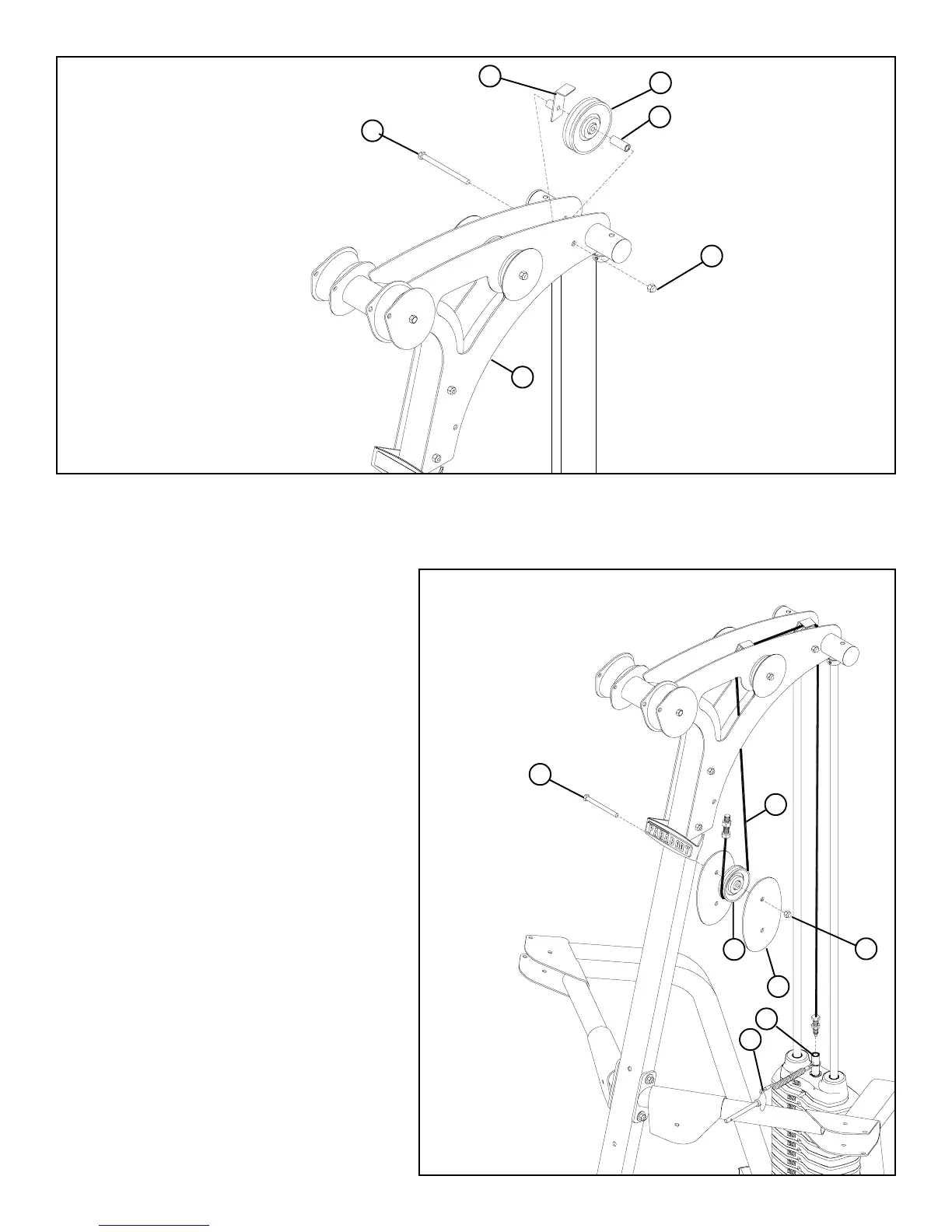

FIGURE 13
• Assemble one 4-1/2” PULLEY (38) to the BOOM PLATES (14 & 15) using one 3/8 X 3-3/4” BOLT (57), one 3/8 X 1” SPACERS
(51), one 4-1/2” CABLE GUARD (35) and one 3/8” LOCK NUT (63). See FIGURE 13.
FIGURE 14
15
38
63
35
4-1/2” PULLEY
• Assemble two PULLEY PLATES (10) around one
3-1/2” PULLEY (37) using one 3/8 X 1-3/4”
BOLT (53) and one 3/8” LOCK NUT (63) as
shown in FIGURE 14. (Note: Loop the CABLE
around the PULLEY prior to assembling the
PULLEY PLATES.)
• Screw the long threaded end of the WEIGHT
STACK CABLE (29) into the end of the WEIGHT
PLATE SHAFT (26) .See FIGURE 14.
• Route the WEIGHT STACK CABLE (29) around
the pulleys in the BOOM PLATES (14 & 15) as
shown in FIGURE 14. (NOTE: Make sure the
cable runs in the grooves of the pulleys.)
37
29
10
63
3/8 X 1-3/4” 53
• Assemble the WEIGHT STACK PIN (27) to the
WEIGHT STACK SHAFT (26) as shown in
FIGURE 14.
27
26
• IMPORTANT! Uncoil and straighten all
CABLES in order to remove all twist prior to
installation
51
3/8 X 3-3/4” 57
