STEP 11:

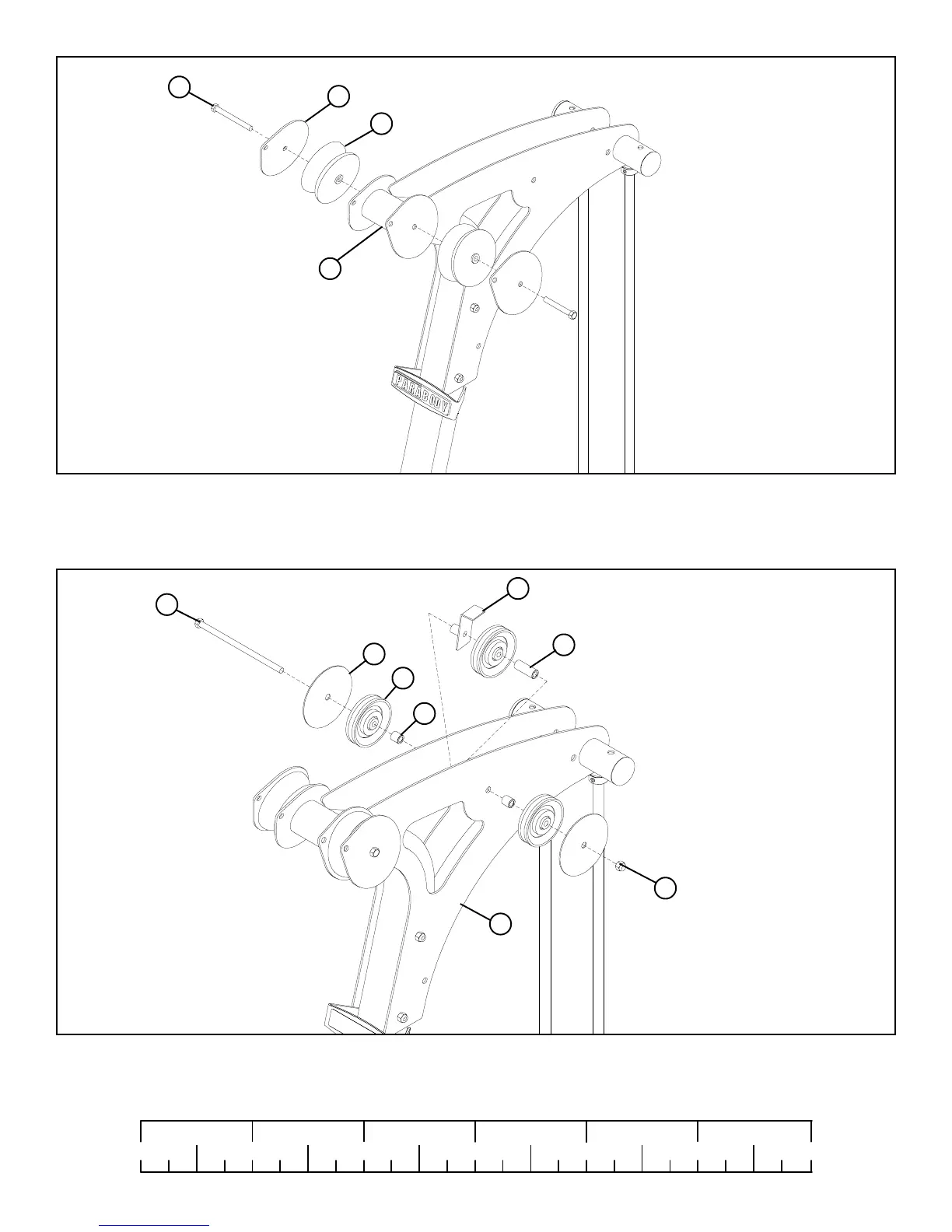

• Assemble two V-PULLEY PLATES (12) and two 4-1/2” V-GROOVE PULLEYS (39) to the UPRIGHT (2) using two
3/8 X 2-3/4” LOC-TITE BOLTS (60) . See FIGURE 11.
STEP 12:
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 12
FIGURE 11
3/8 X 2-3/4” 60
12
39
2
• Assemble two BOOM PULLEY PLATES (13) and three 3-1/2” PULLEYS (37) to the BOOM PLATES (14 & 15) using one 3/8 X
7” BOLT (61), two 3/8 X 1/2” SPACERS (50), one 3/8 X 1” SPACERS (51), one CABLE GUARD (34) and one 3/8” LOCK NUT
(63) . See FIGURE 12.
15
63
51
50
37
13
3/8 X 7” 61
34
LOC-TITE
