11

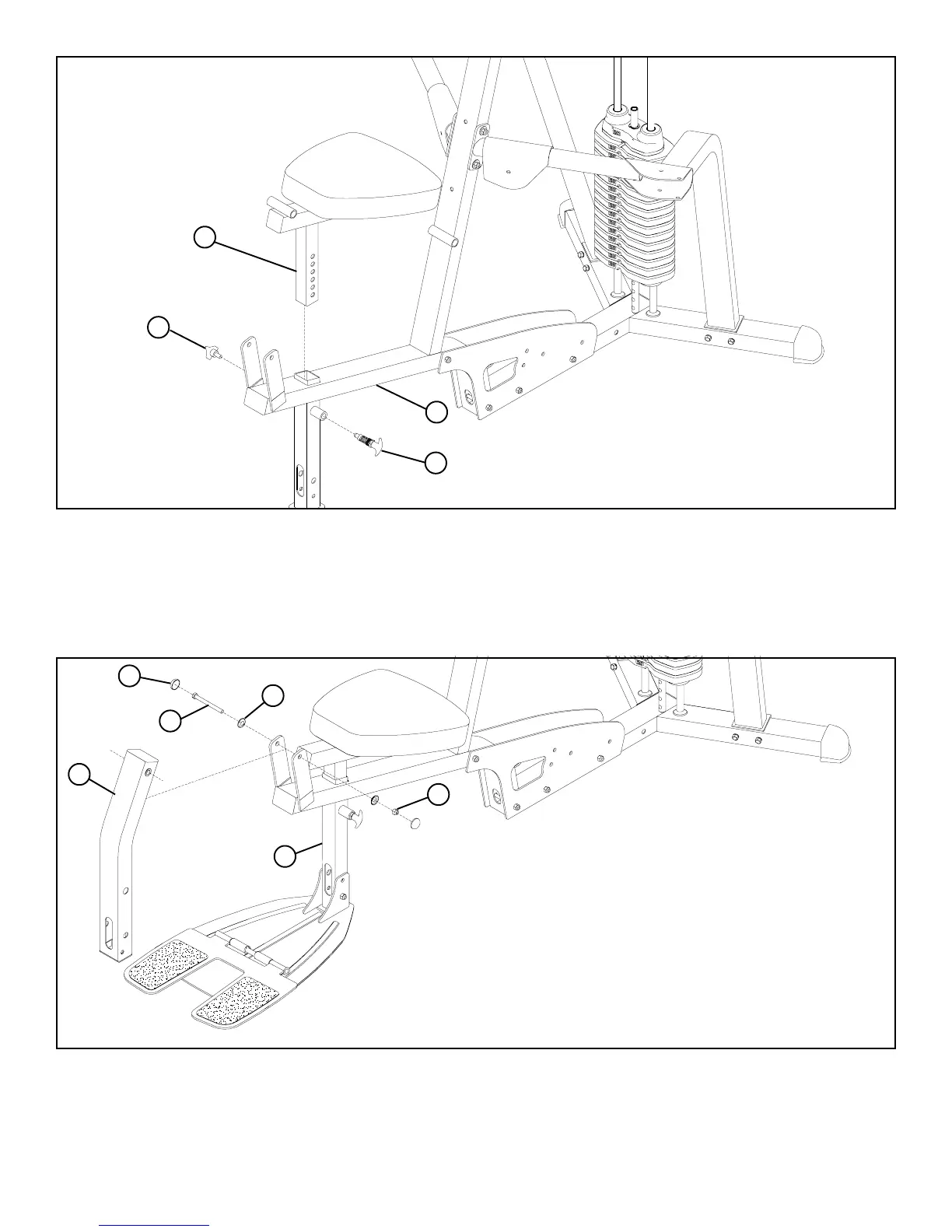

FIGURE 9
STEP 9:
40
2
3
43
• Securely assemble one SPRING PIN ASSEMBLY (40) and one 3 PRONG KNOB (43) to the FRONT UPRIGHT (2) as shown.
• Insert the SEAT ADJUST ASSEMBLY into the UPRIGHT (2) as shown. The SEAT height can be adjusted using the SPRING PIN
(40) and can be secured with the 3 PRONG KNOB (43).
FIGURE 10
STEP 10:
• Assemble the LEG PEDESTAL (8) to the UPRIGHT (2) using two RH CAPS (47), one 1/2 X 104mm BOLT (58), two 1/2” RH
WASHERS (46), and one 1/2” LOW HEIGHT LOCK NUT (62). (Note: Tighten this connection enough to remove excess play yet
allow the LEG PEDESTAL to rotate freely.)
1/2 X 104mm
47
62
2
8
46
58
