ParaBody cm3 - Step 17: Guide Bracket & Short Cable; Slide Guide Bracket Through Cables; Assemble Short Cable & Turnbuckle

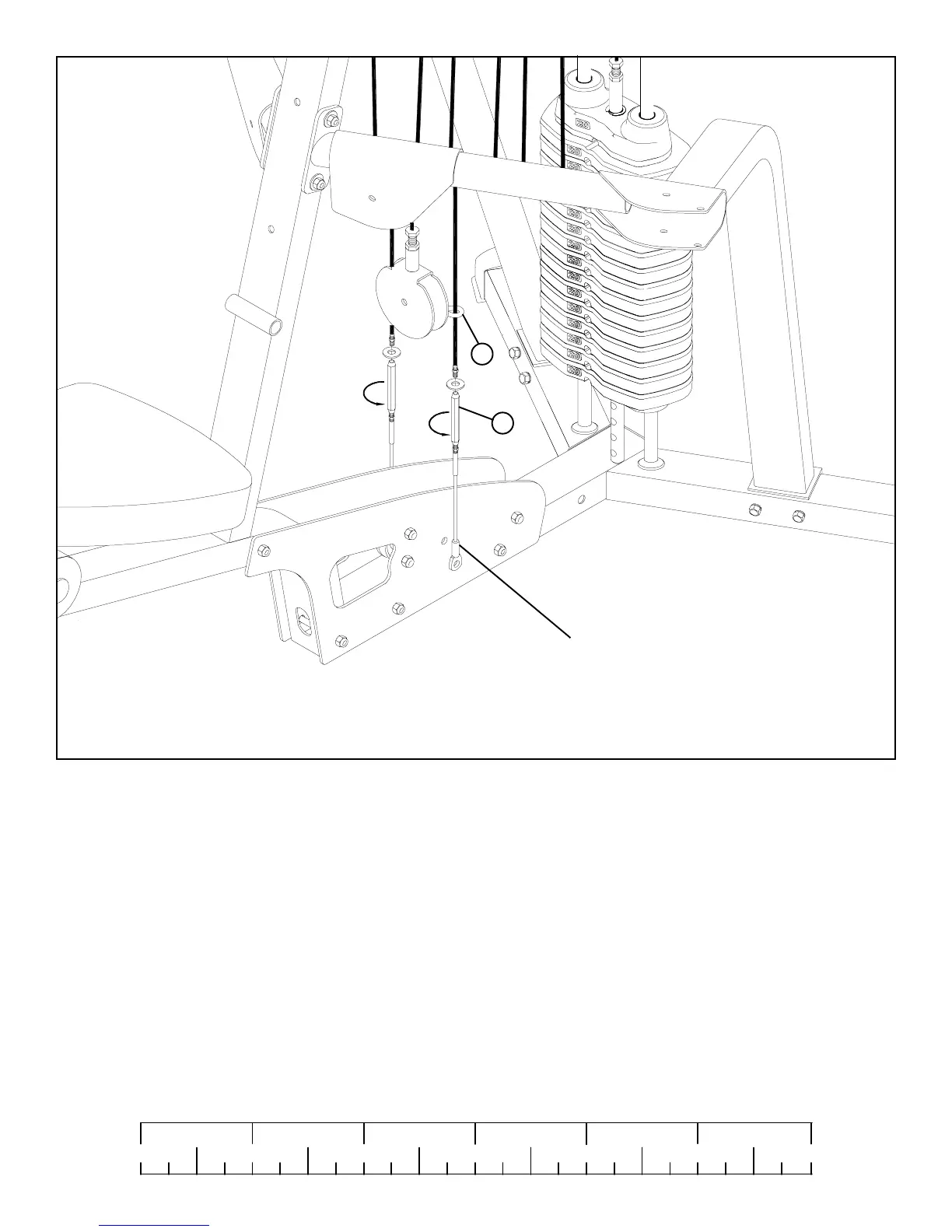

• Assemble the SHORT CABLE and the turnbuckle to each GUIDE CABLE (65) as shown in FIGURE 17.
FIGURE 17
• CAREFULLY slide the GUIDE BRACKET (42) through the GUIDE CABLES (65) as shown in FIGURE 17.
STEP 17:
42
65
SHORT CABLE
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
16
• Adjust the turnbuckle on each GUIDE CABLE (65) to add tension to the GUIDE CABLES (65) until they are taut. Secure
turnbuckle with the JAM NUTS as shown in FIGURE 17.
