ParaBody cm3 - Step 18: Leg Cable & Pulley Attachments; Attach Leg Cable;Pulley to Pedestal; Attach Pulley to Upright for Leg Cable; Attach Pulley to Base Plates for Leg Cable

17
STEP 18:

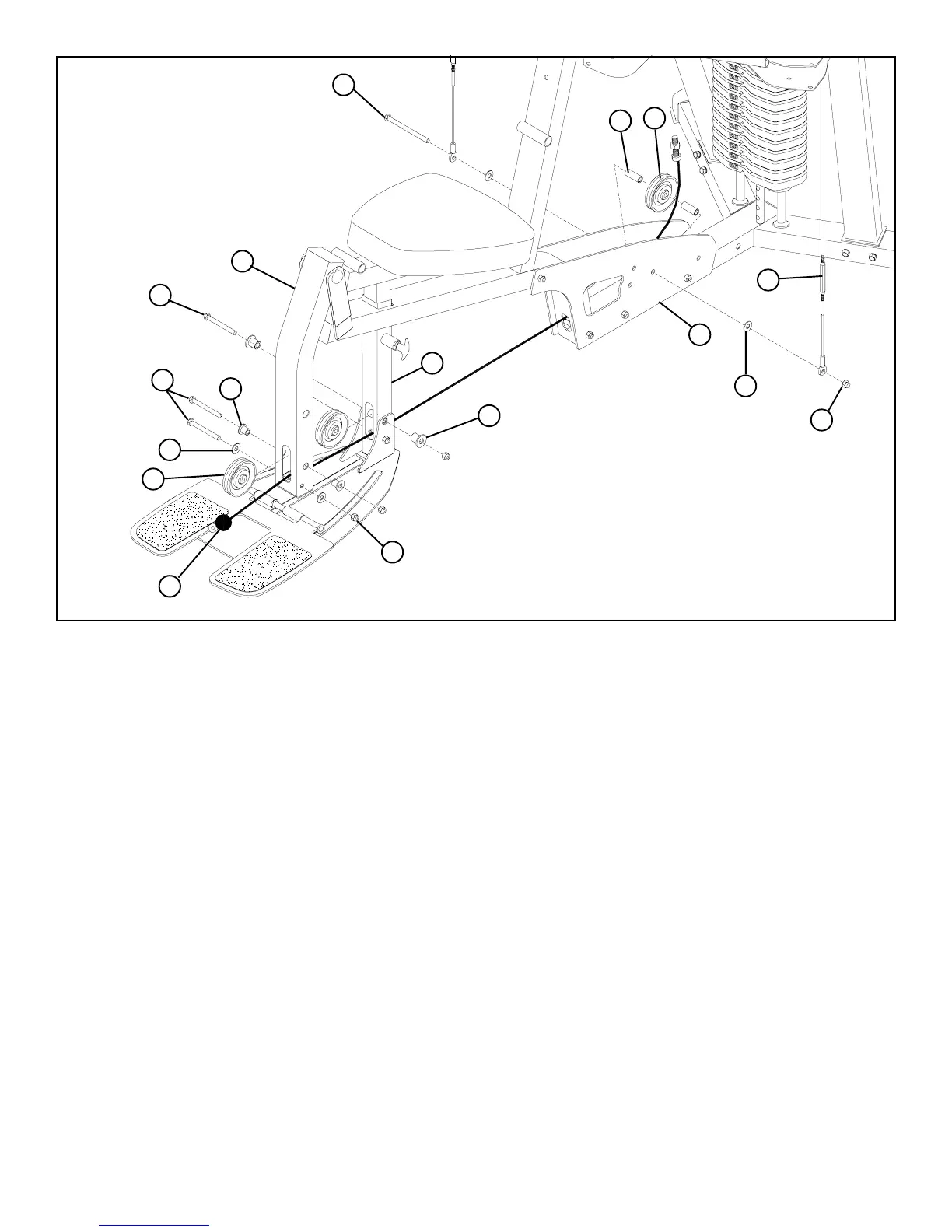

FIGURE 18
• Securely assemble the ball end of the LEG CABLE (30) and one 3-1/2” PULLEY (37) to the LEG PEDESTAL (8) using two 3/8 X
3-3/4” BOLTS (57), two 3/8” X 1-1/16” FLANGE SPACERS (49), two 3/8” WASHERS (64), and two 3/8” LOCKNUTS (63).
(NOTE: The LEG CABLE (30) must be routed over the retaining bolt as shown in FIGURE 18.)
• Securely assemble one 3-1/2” PULLEY (37) to the UPRIGHT (2) using one 3/8 X 3” BOLT (67), two 3/8 x 3/4” FLANGE SPACERS
(48) and one 3/8” LOCKNUT (63). (NOTE: The LEG CABLE (30) must be routed over the retaining bolt as shown in
FIGURE 18.)
3/8 X 3-3/4” 57
• Assemble one 3-1/2” PULLEY (37) to the BASE PLATES (11) using one 3/8 X 4-1/4” BOLT (68), two 3/8” WASHERS (64), two
GUIDE CABLES (65), two 3/8 X 1” SPACERS (51) and one 3/8” LOCK NUT (63). See FIGURE 18.(Note: Loop the LEG
CABLE (30) around the PULLEY prior to assembling the PULLEY to the BASE PLATES.)
8
37
11
51
63
30
37
64
49
48
3/8 X 4-1/4” 68
3/8 X 3”
64
63
65
2
67
