ParaBody cm3 - Step 19: Pulley Plate & Cable Connection; Assemble Pulley to Pulley Plates; Step 20: Base Pulley & Leg Cable; Assemble Pulley to Base Plates

18
STEP 19:
STEP 20:

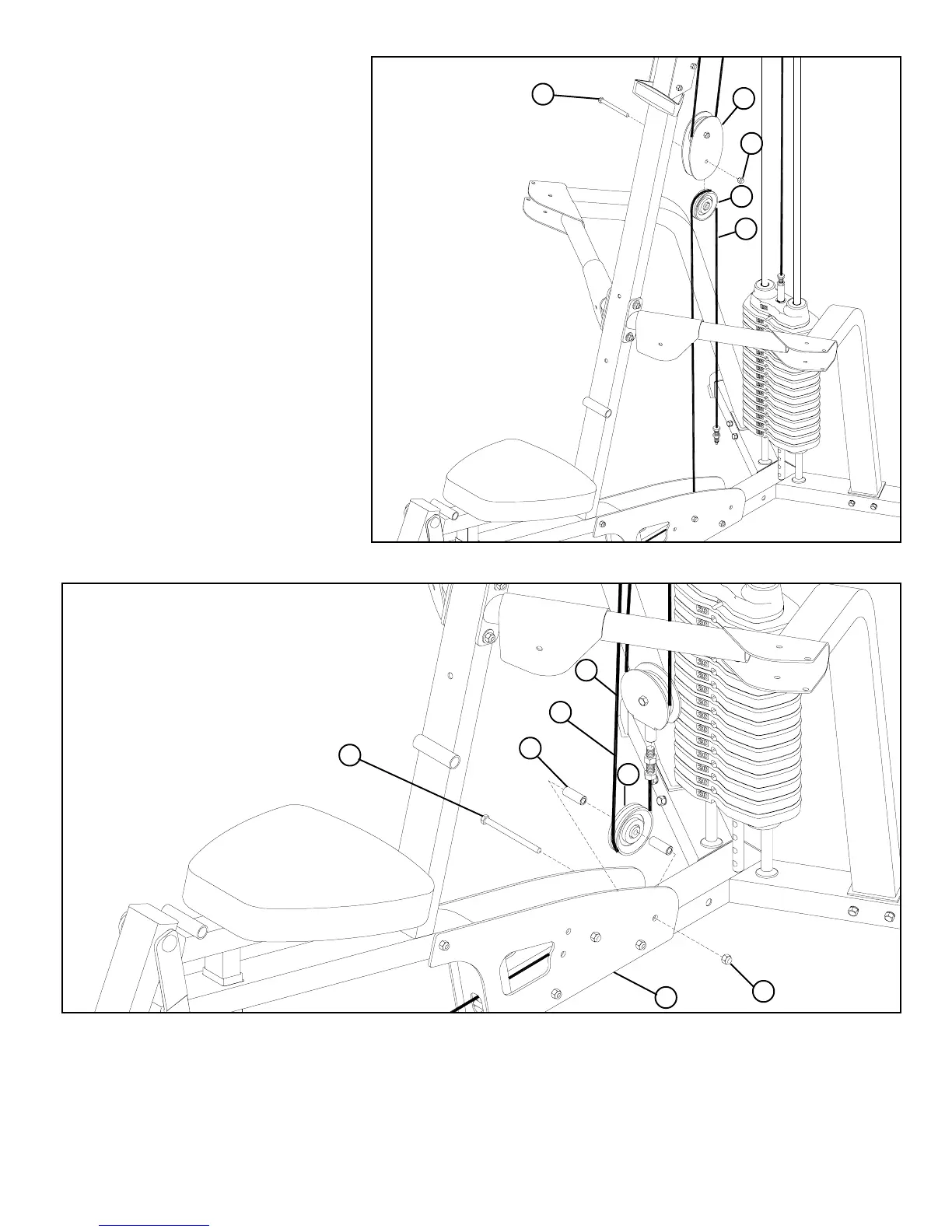

FIGURE 19
FIGURE 20
• Screw the threaded end of the LEG CABLE (30) into the end of the PULLEY BRACKET (9). See FIGURE 20.
• Assemble one 3-1/2” PULLEY (37) to the
PULLEY PLATES (10) using one 3/8 X 1-
3/4” BOLT (53) and one 3/8” LOCK NUT
(63) as shown in FIGURE 19. (Note:
Loop the CABLE around the PULLEY
prior to assembling the PULLEY
PLATES.)
30
63
10
3/8 X 1-3/4” 53
37
• Assemble one 3-1/2” PULLEY (37) to the BASE PLATES (11) using one 3/8 X 3-3/4” BOLT (57), two 3/8 X 1” SPACERS (51) and
one 3/8” LOCK NUT (63). See FIGURE 19.(Note: Loop the LEG CABLE (30) around the PULLEY prior to assembling the
BASE PLATES.)
37
11
9
30
51
63
3/8 X 3-3/4” 57
