ParaBody cm3 - Step 21: Arm Cable & Pulley Assembly (Left); Attach V-Pulley to Left Arm Support; Attach Pulley to Left Arm

19

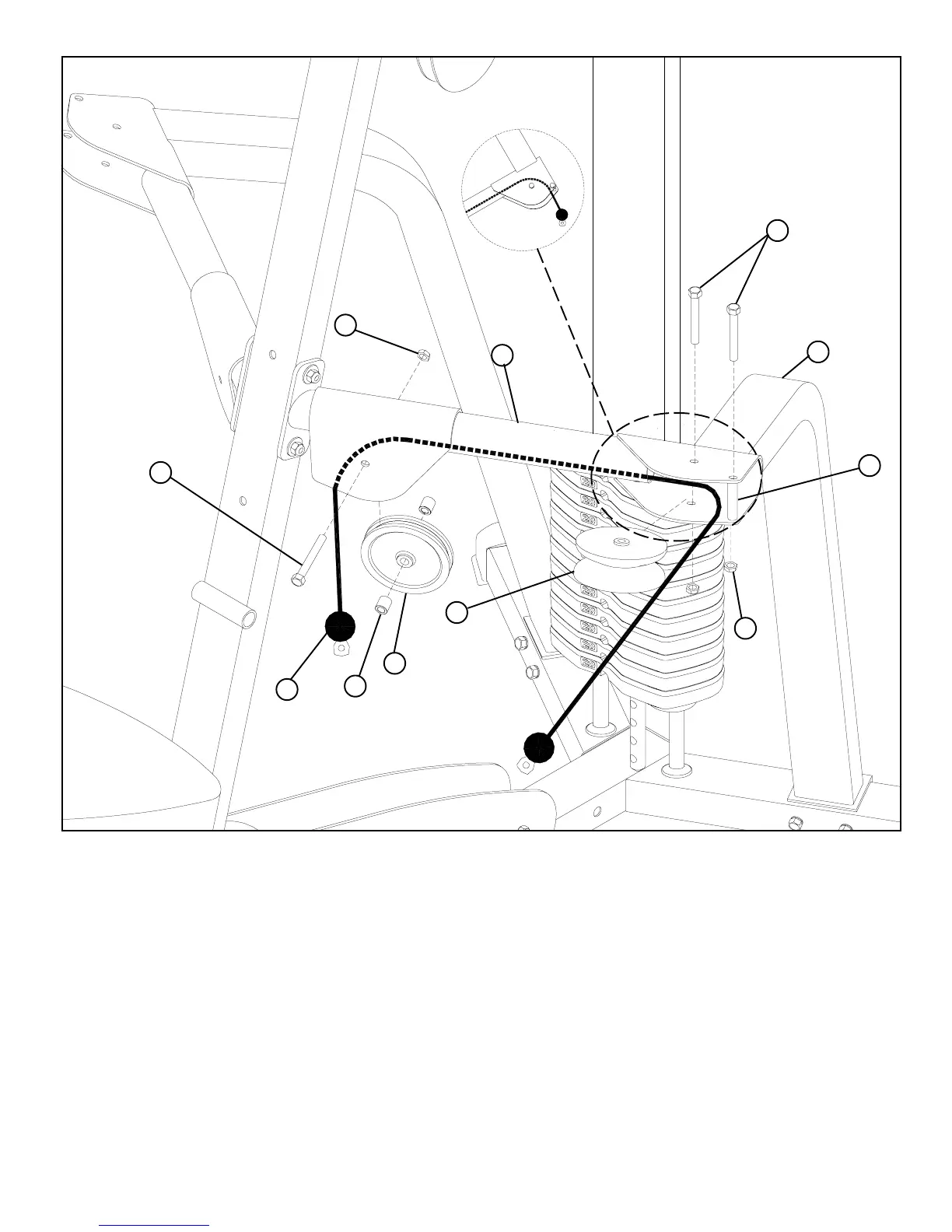

STEP 21:
FIGURE 21
• Assemble one V-PULLEY (39) to the LEFT ARM SUPPORT (5) using one 3/8 X 2-3/4” BOLT (55) and one 3/8” LOCK NUT (63).
See FIGURE 21. (Note: Loop the ARM CABLE around the PULLEY prior to assembling the LEFT ARM SUPPORT.)
• Route the ARM CABLE (31) through the LEFT ARM (7) as shown in FIGURE 21.
• Assemble one 4-1/2” PULLEY (38) to the LEFT ARM (7) using one 3/8 X 2-3/4” BOLT (55), two 3/8 X 1/2” SPACERS (50) and one
3/8” LOCK NUT (63). See FIGURE 21. (Note: Loop the ARM CABLE around the PULLEY prior to assembling the LEFT
ARM.)
55 3/8 X 2-3/4”
63
39
38
31
7
5
56
3/8 X 2-3/4” 55
• SECURELY assemble one 2” NYLON SPACER (56) to the LEFT ARM SUPPORT (5) using one 3/8 X 2-3/4” BOLT (55) and
one 3/8” LOCK NUT (63). See FIGURE 21.
