ParaBody cm3 - Step 22: Base Pulley Attachment; Assemble Pulleys to Base Plates; Step 23: Pulley Bracket Pulley Attachment; Assemble Pulley to Pulley Bracket

20

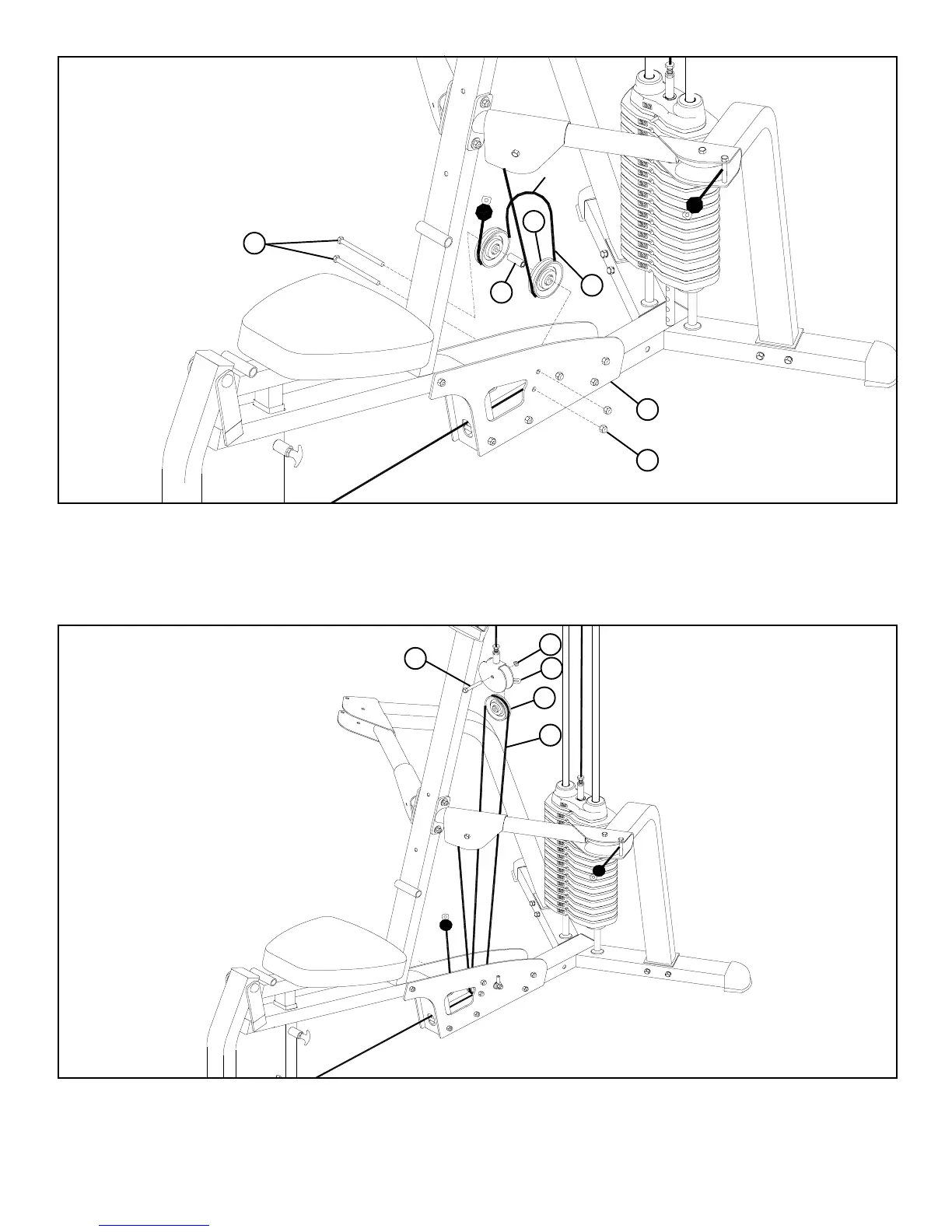

STEP 23:
FIGURE 23
STEP 22:
FIGURE 22
• Assemble two 3-1/2” PULLEYS (37) to the BASE PLATES (11) using two 3/8 X 3-3/4” BOLTS (57), one 3/8 X 1” SPACER (51)
and two 3/8” LOCK NUTS (63). See FIGURE 22.(Note: Loop the ARM CABLE (31) around the PULLEYS prior to assem-
bling the PULLEYS. Leave a loop in the ARM CURL as shown!)
• Assemble one 3-1/2” PULLEY (37) to the PULLEY BRACKET (9) using one 3/8 X 1-3/4” BOLT (53) and one 3/8” LOCK
NUT (63) (Note: Loop the ARM CABLE (31) around the PULLEY prior to assembling the PULLEY BRACKET.)
31
37
9
63
63
11
51
31
37
3/8 X 1-3/4” 53
3/8 X 3-3/4” 57
LOOP
CABLE
