ParaBody cm3 - Step 24: Right Arm Cable & Pulley Assembly; Attach Pulley to Right Arm; Attach V-Pulley to Right Arm Support

21
STEP 24:

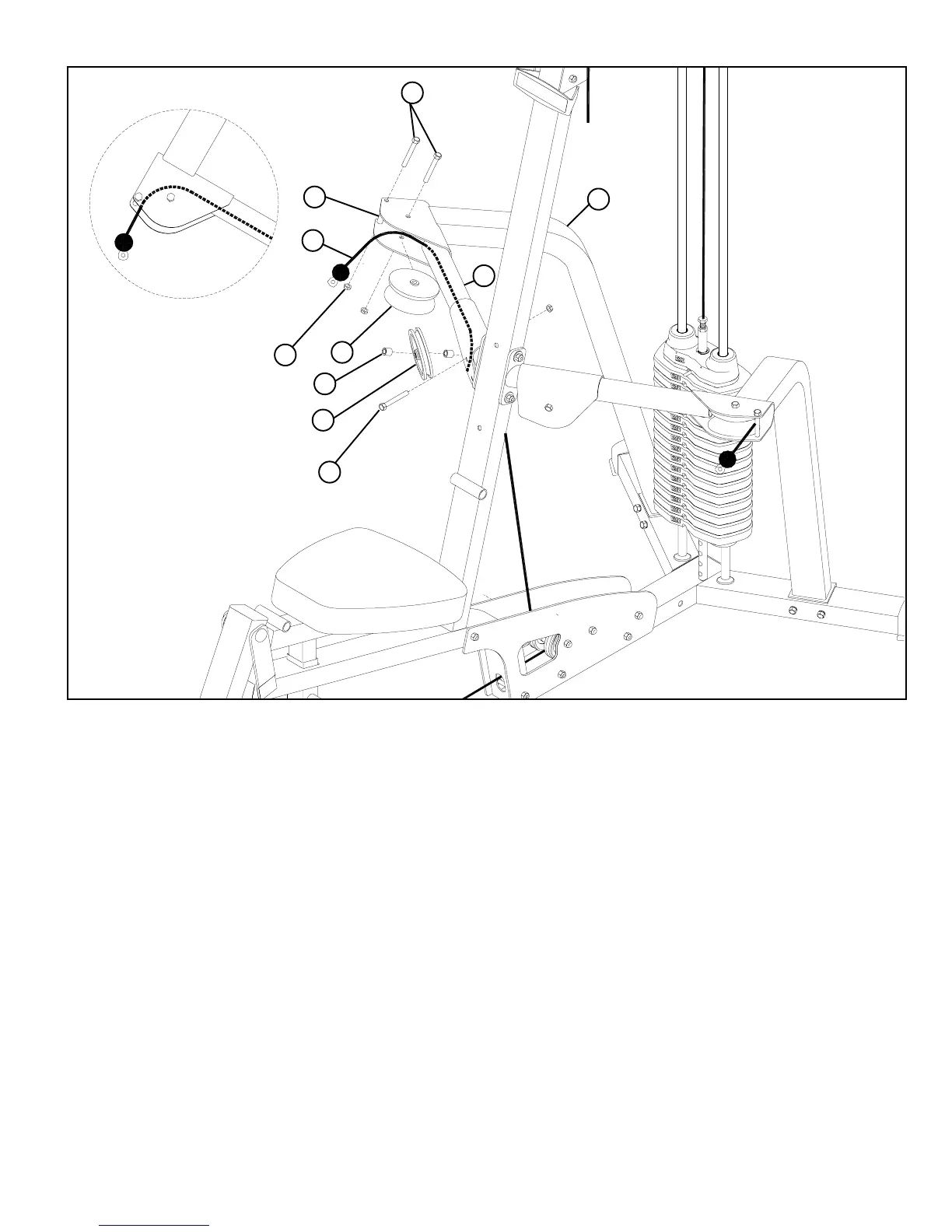

FIGURE 24
38
39
6
31
63
3/8 X 2-3/4” 55
4
• Assemble one V-PULLEY (39) to the RIGHT ARM SUPPORT (4) using using one 3/8 X 2-3/4” BOLT (55) and one 3/8” LOCK
NUT (63). See FIGURE 24. (Note: Loop the ARM CABLE around the PULLEY prior to assembling the RIGHT ARM
SUPPORT.)
• Route the ARM CABLE (31) through the RIGHT ARM (6) as shown in FIGURE 24.
• Assemble one 4-1/2” PULLEY (38) to the RIGHT ARM (6) using one 3/8 X 2-3/4” BOLT (55), two 3/8 X 1/2” SPACERS (50) and
one 3/8” LOCK NUT (63). See FIGURE 24. (Note: Loop the ARM CABLE around the PULLEY prior to assembling the
RIGHT ARM.)
• SECURELY assemble one 2” NYLON SPACER (56) to the RIGHT ARM SUPPORT (4) using one 3/8 X 2-3/4” BOLT (55) and
one 3/8” LOCK NUT (63). See FIGURE 24.
3/8 X 2-3/4” 55
50
56
4-1/2”
