ParaBody cm3 - Step 26: Seat Pad Attachment to Upright; Step 27: Roller Pad Installation

23

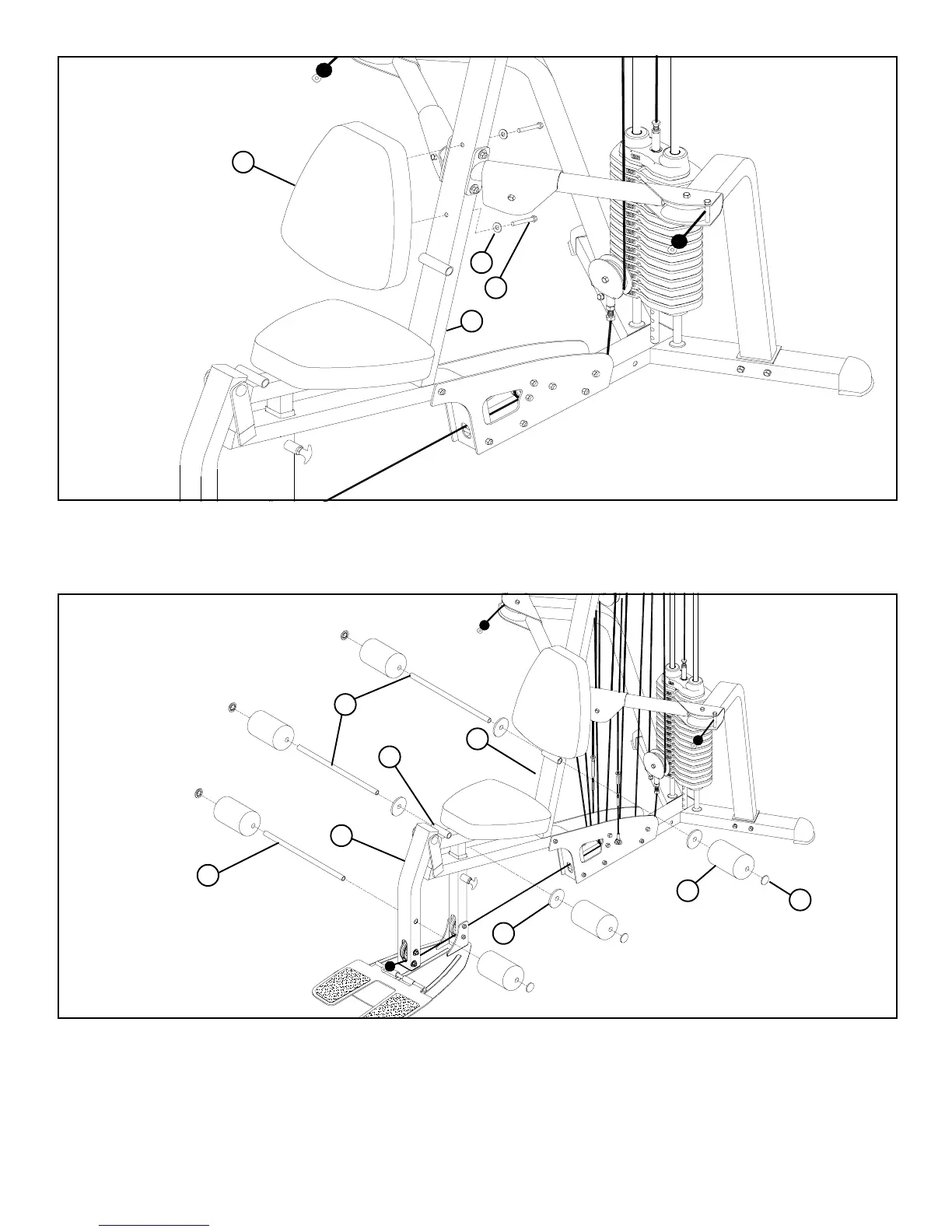

STEP 26:
FIGURE 26
2
16
64
• SECURELY assemble one SEAT PAD (16) to the UPRIGHT (2) using two 3/8 X 3” BOLTS (67) and two 3/8” WASHERS (64). See
FIGURE 26.
• Assemble two ROLLER PADS (17) to the LEG PEDESTAL (8) using one 3/4 X 17” TUBE (24) and two 3/4” STARLOCK
COLLARS (44) as shown in FIGURE 27.
• Assemble two ROLLER PADS (17) to the SEAT ADJUST (3) using one 3/4 X 17-1/2” TUBE (25), two PLASTIC WASHERS
(45) and two 3/4” STARLOCK COLLARS (44) as shown in FIGURE 27.
• Assemble two ROLLER PADS (17) to the UPRIGHT (2) using one 3/4 X 17-1/2” TUBE (25), two PLASTIC WASHERS (45)
and two 3/4” STARLOCK COLLARS (44) as shown in FIGURE 27.
STEP 27:
FIGURE 27
2
8
44
17
45
24
3
67 3/8 X 3”
25
