ParaBody cm3 - Step 4: Guide Rods & Weight Stack Assembly; Install Guide Rods; Assemble Weight Stack Components

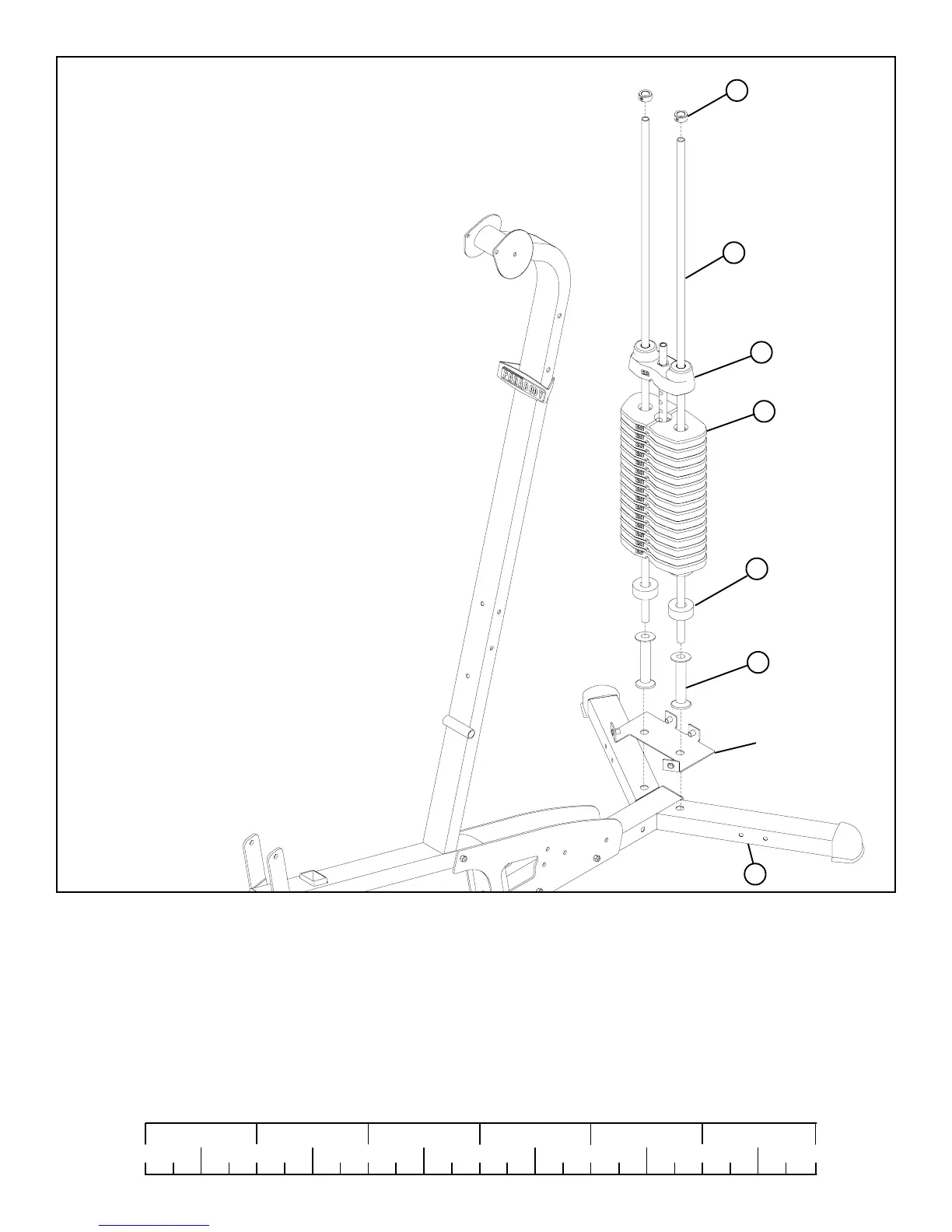

FIGURE 4
STEP 4:
8
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
• Insert two GUIDE RODS (18) into the BASE (1) as shown on FIGURE 4. (NOTE: If the CM3 SHROUD OPTION was
purchased, place the GUIDE RODS (18) through the BOTTOM SHROUD BRACKET (found in SHROUD OPTION box)
and into the BASE (1) as shown in FIGURE 4.
• Slide two WEIGHT STACK SPACERS (33), and two WEIGHT STACK CUSHIONS (28) down over the GUIDE RODS (18).
• Using EXTREME CARE slide all fifteen WEIGHT PLATES (21) down over the GUIDE RODS (18) on to the WEIGHT STACK
CUSHIONS (28). Make sure that the WEIGHT PLATES (21) are all facing as shown.
• Slide the head plate assembly down over the GUIDE RODS (18) onto the weight stack.
36
1
33
28
21
23
18
• Slide two SHAFT COLLARS (36) over the GUIDE RODS (18) as shown in FIGURE 4.
• (NOTE: Lubricate GUIDE RODS (18) with silicon or teflon spray available at most hardware stores.)
CM3 SHROUD
OPTION ONLY!
