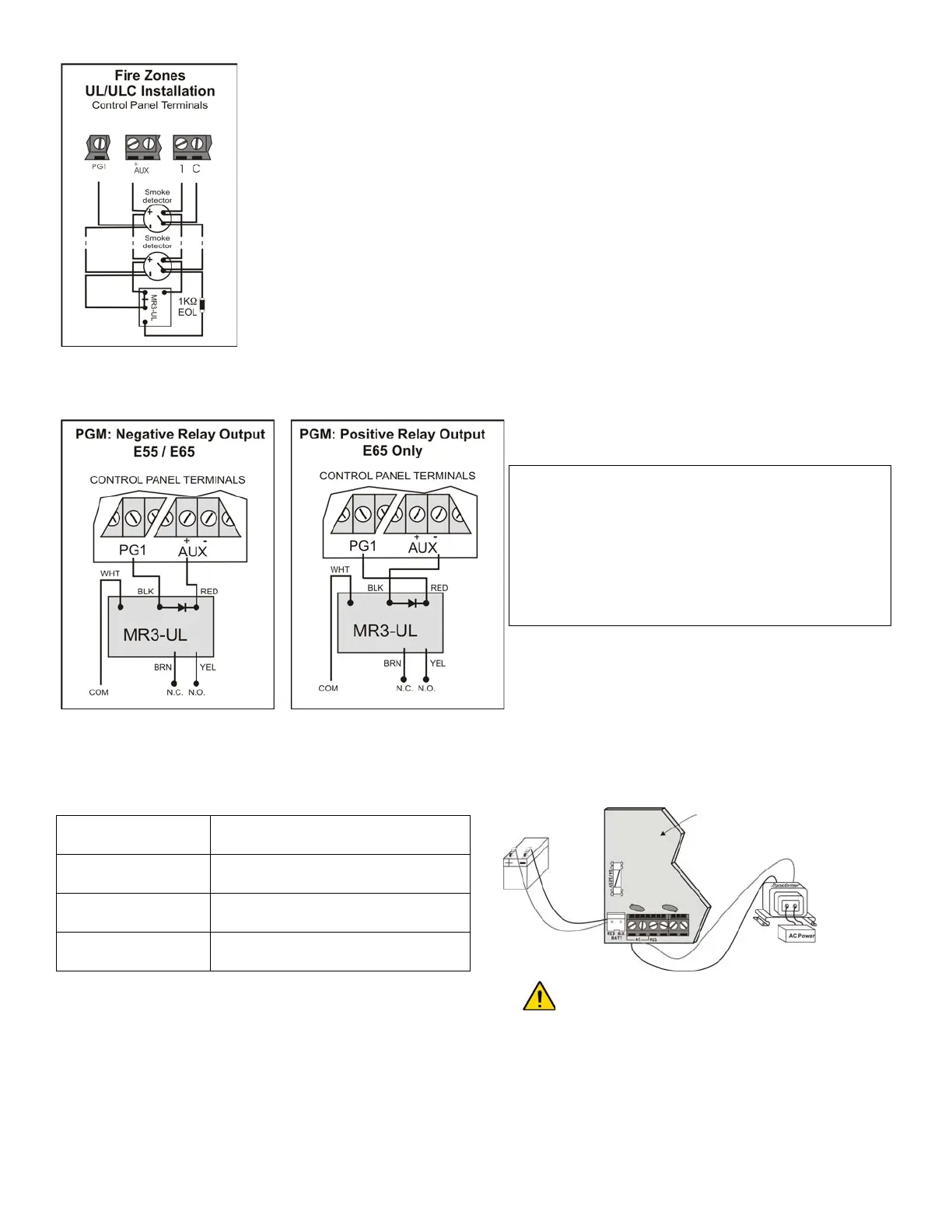

Connecting Fire Circuits
NOTE: It is recommended that the smoke detectors be connected in a daisy chain configuration.
Alarm Relay and PGM Connections
AC Power & Backup Battery Connections
Refer to transformer requirements on page 6 for Aux. Power Output.
Transformer Requirements Table
Transformer: 16.5Vac transformer with minimum 20VA
rating (40VA recommended), 50-60Hz
DC Power
Supply rated at:
12Vdc, 4Ah/7Ah
Auxiliary Supply can
provide a maximum of:
(E55) 450mA, fuseless shutdown at 650mA
(E65) 500mA, fuseless shutdown at 700mA
Acceptable Battery Charge
Current
1.1A
Single Fire Zone Connections Only
If the ATZ feature is enabled, do not use the extra
input (i.e. in the above example, input 005 cannot be
used as a zone).
PGM Power Source
AUX + terminal = E55 current consumption must not
exceed 450mA
= E65 current consumption must not
exceed 500mA
External power supply = PGM cannot exceed 150mA
exceed the power supply’s current
limit
NOTE: For PGM options, see page 23.
Partial view of control panel
Improper connection of the transformer may result
damage to the system.
Disconnect battery before replacing the fuse.
To Next Page
