18 NVX80 Version 1.02

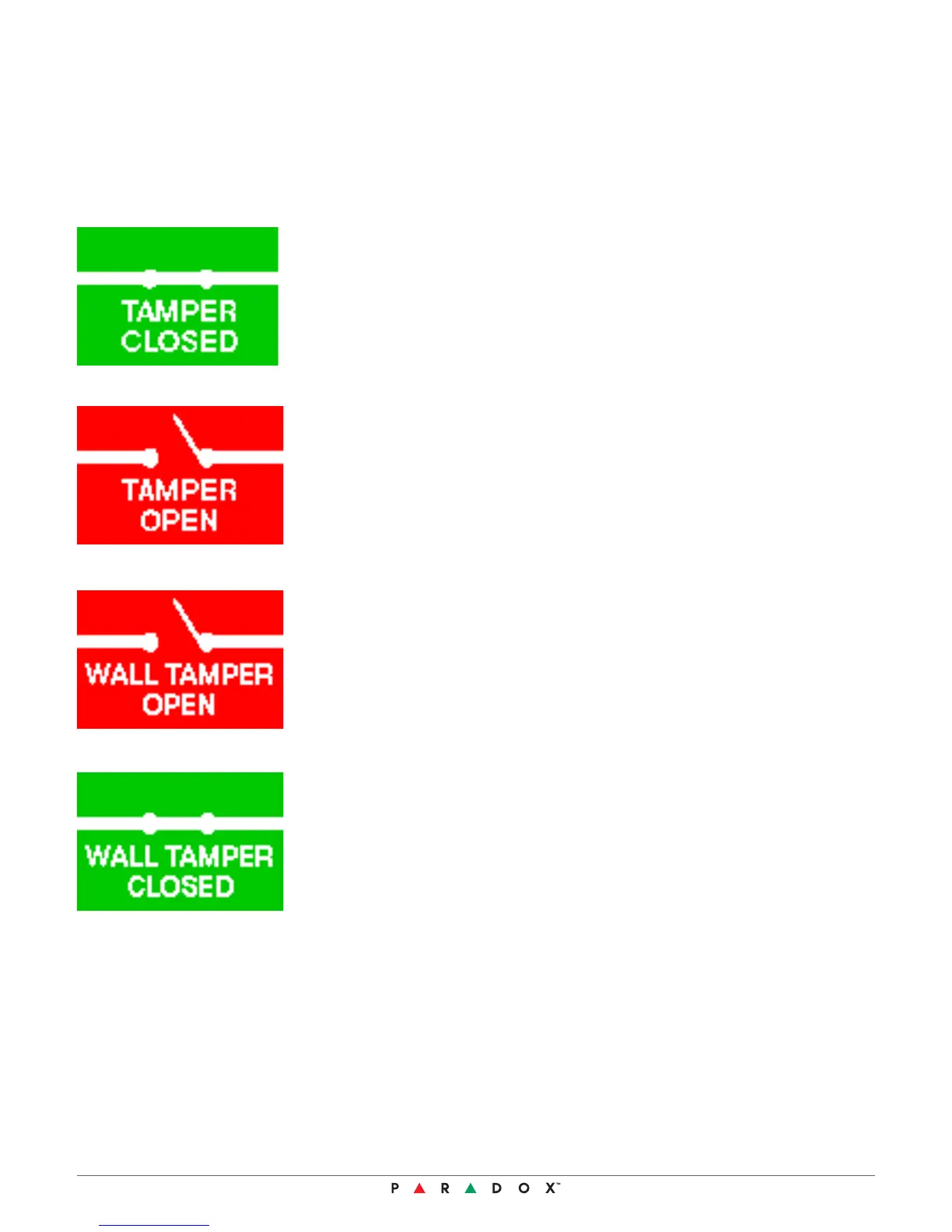

Appears when the tamper screw at the bottom of the unit is open and that the
menus are not accessible. This message will also appear at the end of the power
up sequence.
Appears when the Wall Tamper screw has been disengaged. This message will
also appear after the Power Up sequence is finished, should the Wall Tamper
screw be open during power up. The detector will enter menu mode after the
power up sequence is over.
After closing the Wall Tamper, this message will appear.
When any of the tampers are detected as open, a relay configured as a Tamper will trigger. The wall tamper switch
can be excluded from this relay sequence by disabling it in the Input menu.
Tamper
Tamper messages are triggered by when the tamper screw at the bottom of the unit is opened or the wall tamper
screws have been disengaged.
Appears when the tamper screw at the bottom of the unit is tightly closed.
It signifies that the unit has entered operation
