Paragon EL71 User Manual

Application Examples
Example No. 1:
Objective: To control an air conditioner to operate at 73˚ F from 8:00 AM to 12:00 PM and to operate
at 77˚ F from 12:00 PM to 5:00 PM on Monday through Friday. On nights and weekends the air con-
ditioner will be off. The air conditioner will also be off from October 1st to April 30th. Temperature
setpoints are to have a +/- 1˚ F deadband.

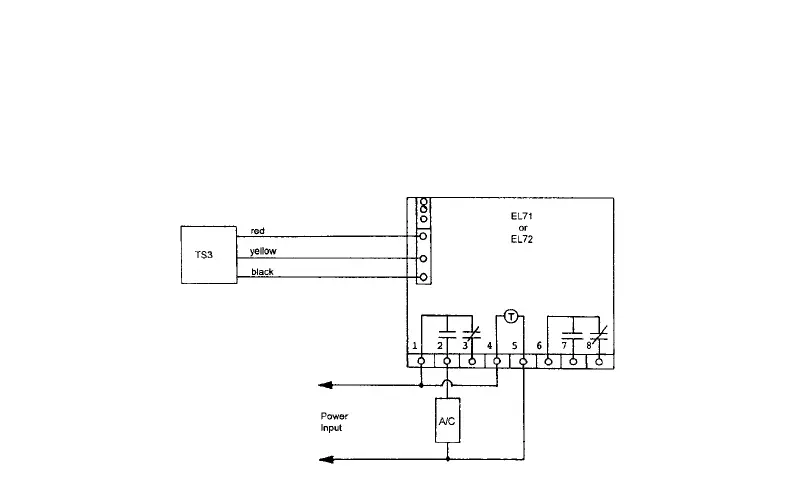

Wiring Diagram:
