Chapter 1: Your Boe-Bot’s Brain · Page 19
(1) BASIC Stamp HomeWork Board

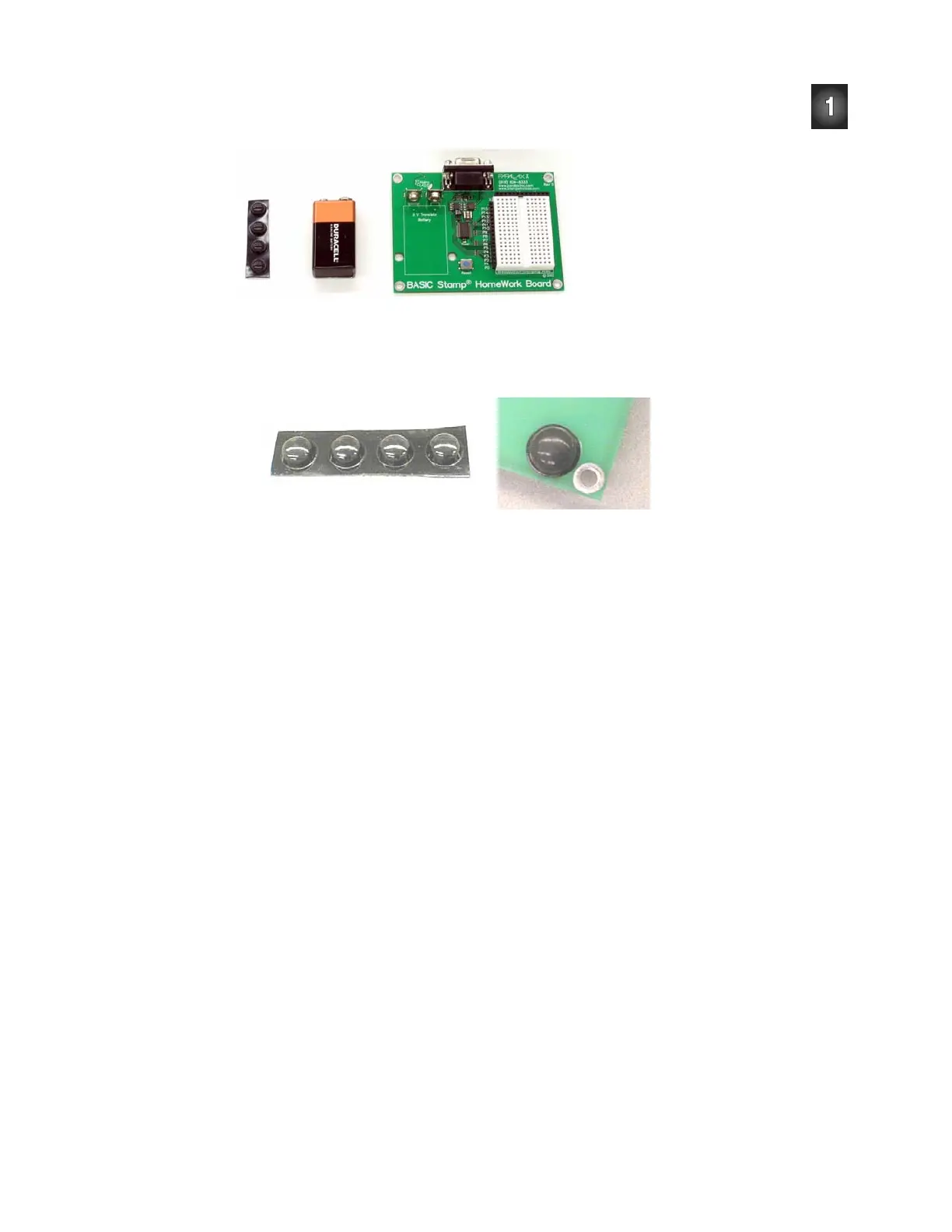

Figure 1-27
Getting Started Hardware
for the BASIC Stamp
HomeWork Board
√ Remove each rubber foot from its adhesive strip and affix it to the underside of
the HomeWork Board next to each plated hole at each corner of the board as
shown in Figure 1-28, making sure not to cover up the holes.
Figure 1-28
Rubber Feet
√ Connect the serial cable and battery to the HomeWork Board (Figure 1-29, steps
1 and 2).
