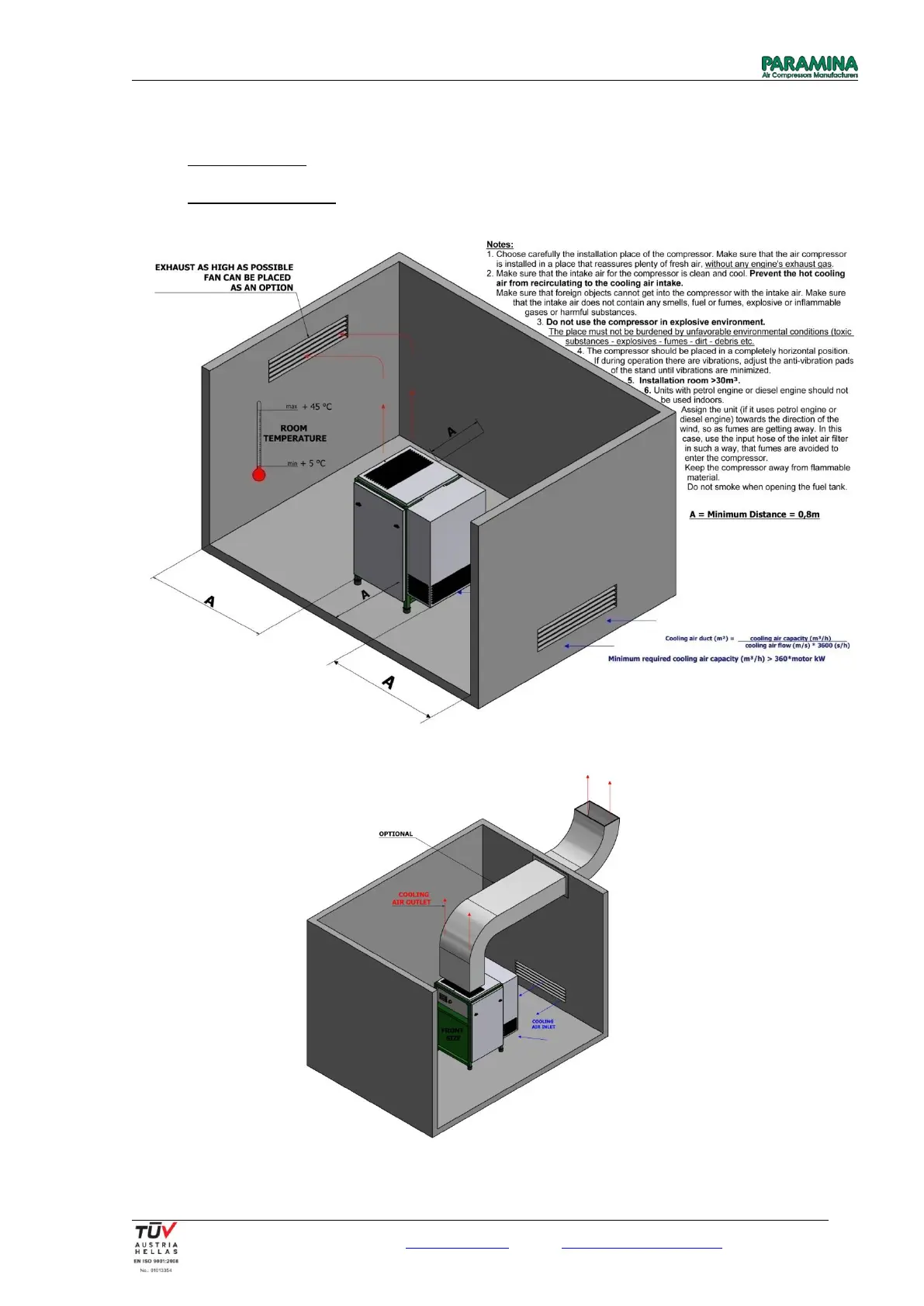

Cylinder filling procedure 
Make sure that filling hoses as well as threads are in perfect condition without cracks or breaks.
Filling hose connectors should be connected on the cylinder without the use of tools. Sealing is achieved
with o-ring and internal pressure.
A. Filling hose connectors used for filling cylinders up to 232 bar are divided in two categories:
 Filling Connector according to DIN 200
 INTERNATIONAL / ‘’A’’ Clamp Adaptor
B. For cylinders filling at 330 bar, only the use of filling connectors according to DIN 300 (different
adaptor than the one at DIN 200 bar) is allowed.
Use cylinders that correspond to the pressures produced by the compressor
Check the cylinder safety pressure (232 or 330 bar for example) so as to correspond to the preset final
pressure of the compressor.
Connect the cylinder, having the filling hose connector’s valve and the cylinder’s valve turned off, and start
the compressor by pressing the Start button.
Then, first turn on the filling hose connector’s valve and then the one of the cylinder.
200bar Filling
DIN 200 filling connector
(Only up to 232 bar)
DIN 300 filling connector
(ATTENTION: longer adaptor)
(Up to 330 bar)
INTERNATIONAL
/ ‘’A’’ Clamp Adaptor
(Only up to 232 bar)
