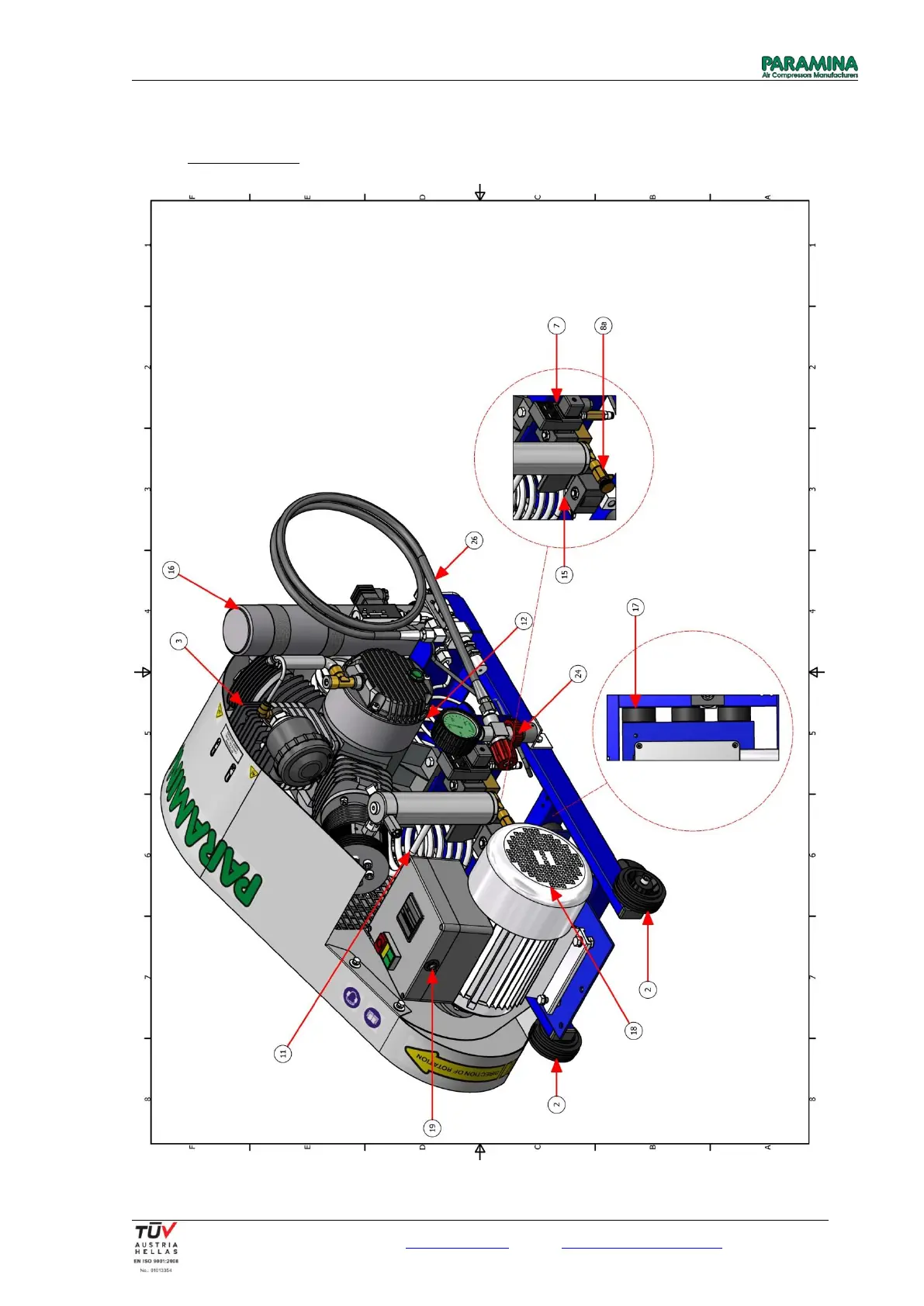

Paramina MISTRAL M6-EM - 6 Spare Parts Catalog

User Manual - Mistral M6&M8 - 06-2015 edition
.
PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1
Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com 31
* See all BA filter’s parts and codes in page 17.
** According to compressor’s serial number.
24
1-2
SERVICE KIT PART NUMBER: 189900200
25
1
122063402
Final stage manometer
1
122063012
Manometer rubber cover
26
1-2
140000080
Filling hose 1,2m 10L
140000921
Kevlar Filling hose 1,2m 8S (option)
27
1
**
Taper bush
28
1
**
Pulley motor
29
1
135161242
Taper bush com. block (M8 series only)
30
1
136017012
Pulley com. Block (M8 series only)
31
1
105000982
Inside guard
32
1
**
V-Belt
33
1
136370001
Flywheel
34
2
192200822
Flywheel washer Ø8
35
1
198000802
Flywheel lock screw Ø8
36
1
193108252
Flywheel screw M8x25
37
1
105000992
Outside guard
38
1
401011702
Handle
39
1
189500002
Dual pressure (225/330 bar) selection valve
189401001
Selection Valve Service Kit
40
1
109000082
Particle Strainer Intake Filter
41
1
186025102
Spiral air intake hose
42
1
401001082
Condensate collecting tank
43
1
142111201
Sintered Filter Plastic 1/2''
44
1
190039990
Base - Condensate Collecting Tank
45
1
207101001
Expansion vessel
46
3
115101702
Quick Elbow 8-1/4''
47
1
116300122
Male plug tapered 1/2''
48
1
140006802
Plastic pipe 6x8mm (code includes one meter – is needed approximately
30cm)
49
1
109000032
Exhaust Filter
