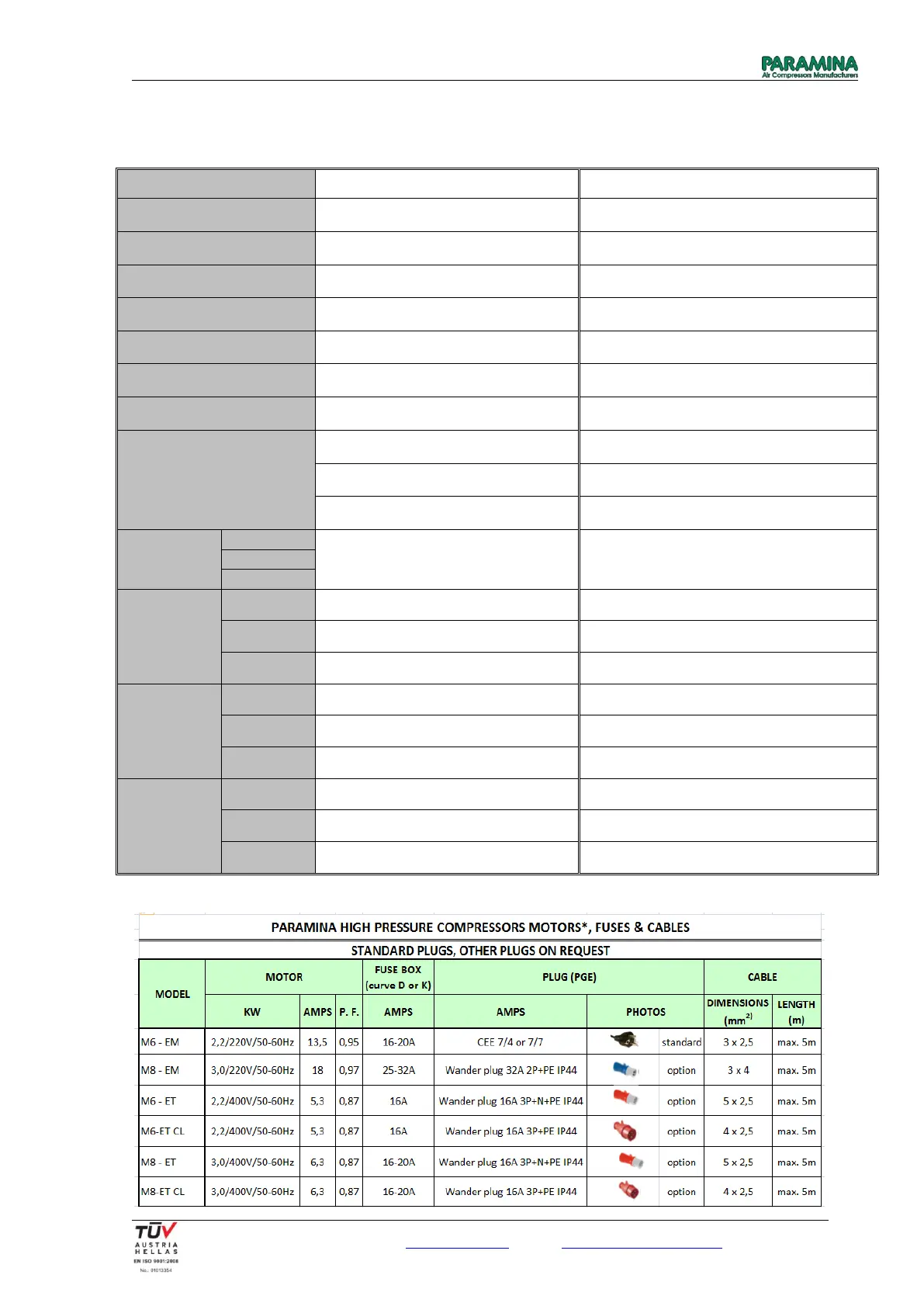

2. Technical Data
High pressure breathing air compressor, 3 cylinders, 3 stages, air-cooled.
Model:
M6
M8
Maximum pressure:
330 bar (4700 psi)
330 bar (4700 psi)
Minimum pressure:
40 bar (580 psi)
40 bar (580 psi)
Capacity:
6,2 m3/h - 103 lit/min
8,4 m3/h - 140 lit/min
Ambient temperature:
+5ºC to +45ºC
+5ºC to +45ºC
Oil capacity:
400 ml.
500 ml.
Speed Rotation:
1200 rpm
1750 rpm
Piston stroke:
40 mm
40 mm
Cylinder bore:
1
st
stage 60 mm
1
st
stage 60 mm
2
nd
stage 36 mm
2
nd
stage 36 mm
3
rd
stage 14 mm
3
rd
stage 14 mm
Working
Pressure:
1
st
stage
3,5 bar 3,5 bar
27,0 bar 30,0 bar
225,0 bar 330,0 bar
3,5 bar 3,5 bar
28,0 bar 30,0 bar
225,0 bar 330,0 bar
2
nd
stage
3
rd
stage
Motor:
ET
2,2kW-3,0Hp/400-440V/50-60Hz
3,0kW-4,0Hp/400-440V/50-60Hz
EM
2,2kW-3,0Hp/220V/50-60Hz
3,0kW-4,0Hp/220V/50Hz (60Hz option)
BZ*
3,6 kW - 4,8 Hp Petrol Engine
4,1 kW – 5,5 Hp Petrol Engine
Dimensions
LxWxH
ET
72x34x46 cm
74x47x47 cm
EM
72x34x46 cm
74x34x47 cm
BZ*
87x34x46 cm
89x47x47 cm
Weight:
ET
53 Kg
70 Kg
EM
54 Kg
71 Kg
BZ*
55 Kg
72 Kg
*M6-BZS with Subaru petrol engine 4,3Kw/5,7Hp, 1400rpm @ 120ltr/min (7,2 m3/h )
Fuses & Cables
MODEL
MOTOR
FUSE BOX
CABLE
KW
AMPS
DIM. (mm
2)
LENGTH (m)
M6 - EM
2,2 / 220V
16-20A
3 x 2,5
max. 5m
M6 - ET
2,2 / 400V
16A
4 x 2,5
max. 5m
M8 - EM
3 / 220V
25-32A
3 x 2,5
max. 5m
M8 - ET
3 / 400V
20A
4 x 2,5
max. 5m
