5-1 LED Indications
512C Series Converter
LED INDICATIONS
LED Indications
LED1 STALL TRIP Illuminated when controller detects a Stall Condition.
This is determined by the state of the Speed Loop if
Speed control is lost a Stall condition is determined a
Trip will occur after 60 seconds. The motor may not
be stationary.
LED2 POWER ON Illuminated when power supplied to Auxiliary Supply
either directly or via the Auxiliary terminal.
LED3 OVERCURRENT Illuminated when Armature Current exceeds 3½ times
Calibrated Current.

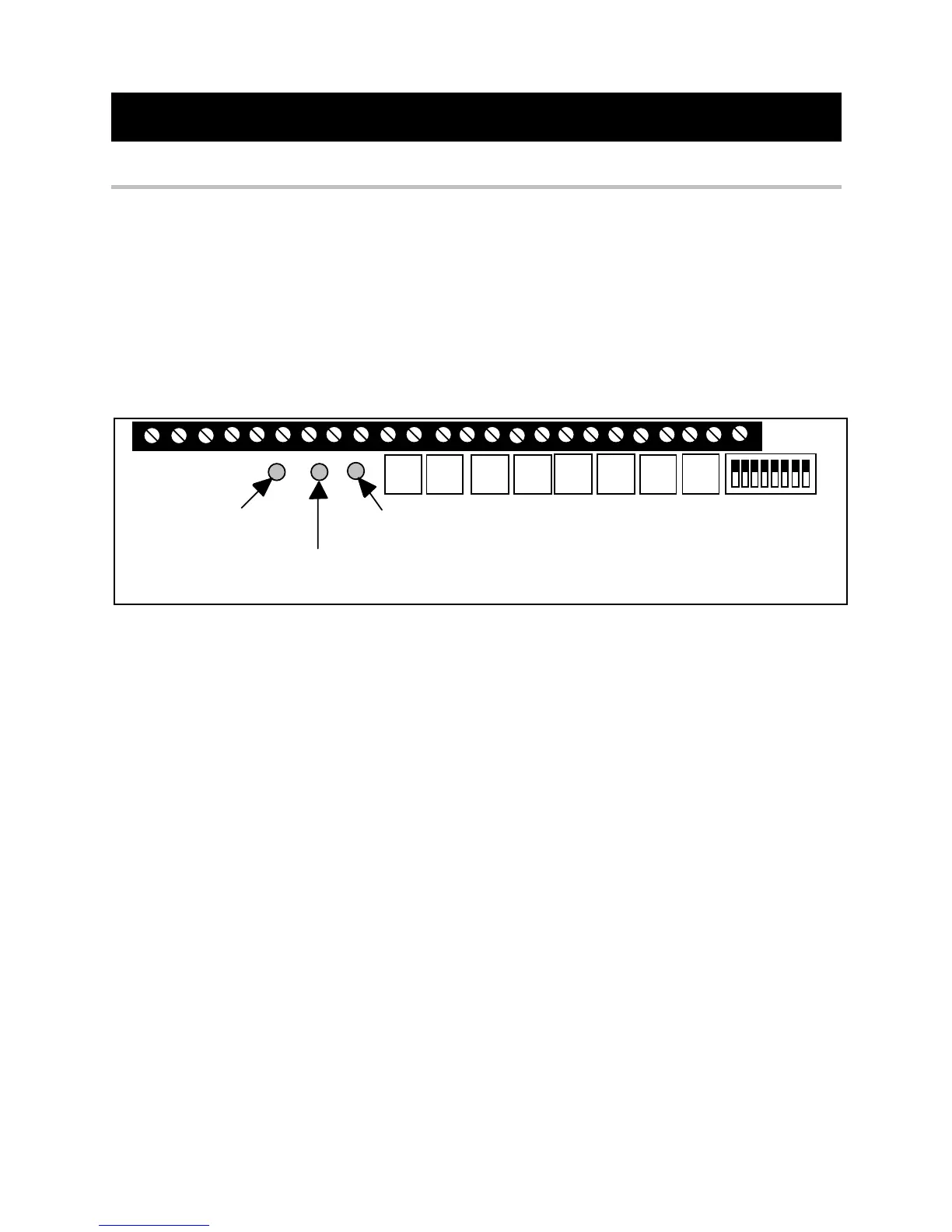

STALL
POWER ON
OVERCURRENT
