For the second shape, the jog statement tells the Jog Profiler to start

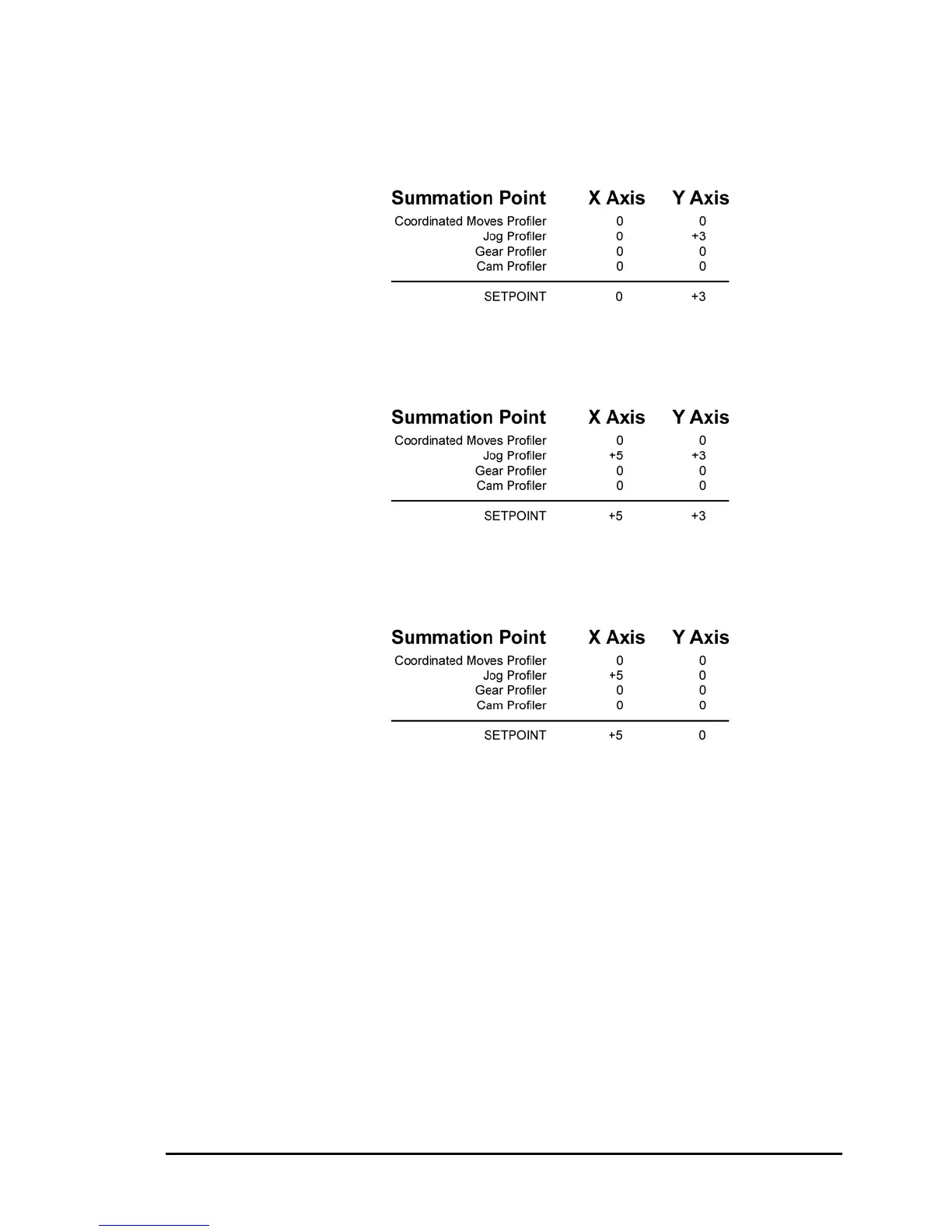

the Y axis at 3 units. At the summation point, this data is added to
the values from the other profilers to yield a Y-axis setpoint of +3:
For the third shape, the jog statement adjusts the starting point
again, this time changing the X axis to 5. The Y axis has not been
jogged so it stays at its previous value of +3:
For the fourth shape, the jog statement adjusts the starting point for
the Y axis back to 0. The X axis has not been jogged so it stays at its
previous value of +5:
Without offsets, coordinates for each shape would have to be
calculated (and debugged). Instead, one set of coordinates can be
reused and the starting point shifted through an offset.
Making Motion 57
